3. Test

Create SmartApp Upload SmartApp

In the Kelvin SDK there is a test tool to help you ingest data to the inputs and debug the outputs to test the performance of your Kelvin SmartApp™. Some of the features include:

  • Ingest Simulated Data: Inject random values at a specified interval to the app inputs using the command kelvin app test simulator
  • Ingest CSV file: Read a CSV file and send the data to the app inputs using the command kelvin app test csv
  • Verify outputs: Verify the outputs of the app like control changes and recommendations

Testing with historical CSV file

The Kelvin SDK test csv tool is designed to allow testers to ingest messages from a CSV file for testing purposes.

CSV Tool Overview

The test csv tool supports a variety of options to customize its behavior. Below is a list of the available options:

Parameter Required Description Note
--csv TEXT required Path to the CSV file N/A
--config TEXT optional Path to the app.yaml Default: Current directory
--publish-rate FLOAT optional Overrides CSV Publishing rate (in seconds) 0 forces instant feed
--playback optional Offsets the first csv timestamp to the current time N/A
--replay optional Continuously publish data from CSV when reaching EOF N/A
--asset-count INTEGER optional Number of Assets (test-asset-N) Default: 1
--asset-parameter TEXT optional Sets Asset Parameter Can be used multiple times

CSV File Structure

To structure the CSV file for your application, please follow the rules outlined below:

  1. Timestamp Column:

    • The first column should be labeled as timestamp.
    • The timestamp should follow one of the supported formats by the Arrow library. Examples of accepted formats include:
      • YYYY-MM-DD HH:mm:ss
      • YYYY/M/D HH:mm
      • YYYYDDDD HH:mm
      • Other Arrow-compatible formats

  2. Input Columns:

    • Include additional columns for each input defined in your app.yaml file. These columns represent the various data stream inputs your application receives.
    • Example input columns might include:
      • motor_temperature
      • pressure
      • gas_flow

  3. Optional Asset Parameters:

    • If you have optional asset parameters defined in your app.yaml file, include them as additional columns. These parameters can be useful for evaluating different operational behaviors.
    • Example optional parameter columns might include:
      • temperature_max_threshold
      • speed_decrease_set_point
      • closed_loop

Download CSV Test File

Now that you're familiar with the basics of the test csv tool, it's time to put the Event Detection SmartApp to the test using a CSV file.

Download the CSV file from the link below and save it to your local machine:

Download test.csv

Important Reminder

Make sure to copy the downloaded CSV file into the directory of your Kelvin SmartApp™ project before proceeding.

The CSV file you downloaded contains the following data:

timestamp,motor_temperature
2023-10-27 10:00:01.0,50
2023-10-27 10:00:02.0,51
2023-10-27 10:00:03.0,52
2023-10-27 10:00:04.0,53
2023-10-27 10:00:05.0,54
2023-10-27 10:00:06.0,55
2023-10-27 10:00:07.0,56
2023-10-27 10:00:08.0,57
2023-10-27 10:00:09.0,58
2023-10-27 10:00:10.0,59
2023-10-27 10:00:11.0,60

You can view the guide in our video tutorial or read our step by step written guide.

Video Guide

Watch the test section of the develop quick start guide.

Success

This will start the video playback at the 5 minute 30 second mark. You can rewind to see the full process of developing and testing a Kelvin SmartApp™ in under 8 minutes.

Written Guide

Test your Event Detection SmartApp

Open a terminal window on the folder of your Kelvin SmartApp™ project and follow the steps below to test your Event Detection SmartApp using the CSV file you downloaded:

  1. Run the CSV Test Tool:

    kelvin app test csv --replay --playback --csv test.csv

    and you should see the following output:

    Publisher started.

  2. Open a NEW terminal window and run the SmartApp:

    python3 main.py

    and you should see the following output:

    Received Motor Temperature | Asset: test-asset-1 | Value: 50.0

Received Motor Temperature | Asset: test-asset-1 | Value: 51.0

Received Motor Temperature | Asset: test-asset-1 | Value: 52.0

Received Motor Temperature | Asset: test-asset-1 | Value: 53.0

Received Motor Temperature | Asset: test-asset-1 | Value: 54.0

Received Motor Temperature | Asset: test-asset-1 | Value: 55.0

Received Motor Temperature | Asset: test-asset-1 | Value: 56.0

Received Motor Temperature | Asset: test-asset-1 | Value: 57.0

Received Motor Temperature | Asset: test-asset-1 | Value: 58.0

Received Motor Temperature | Asset: test-asset-1 | Value: 59.0

Received Motor Temperature | Asset: test-asset-1 | Value: 60.0

Published Motor Speed SetPoint (Control Change) Recommendation: 1000.0

(...)

  3. Go to the CSV Tool terminal and check the logs:

    Publisher started.
Connected

CSV ingestion is complete

Received Recommendation Message:
RecommendationMsg(id=UUID('e5cc136a-5ae1-4014-a106-6699b6423e62'), type=KMessageTypeRecommendation('recommendation', ''), trace_id=None, source=None, timestamp=datetime.datetime(2024, 8, 9, 18, 10, 40, 231994, tzinfo=datetime.timezone(datetime.timedelta(seconds=3600), 'WEST')), resource=KRNAsset(asset='test-asset-1'), payload=RecommendationPayload(source=None, resource=KRNAsset(asset='test-asset-1'), type='decrease_speed', description=None, confidence=None, expiration_date=None, actions=RecommendationActions(control_changes=[RecommendationControlChange(timeout=None, retries=None, expiration_date=datetime.datetime(2024, 8, 9, 18, 20, 40, 231843, tzinfo=datetime.timezone(datetime.timedelta(seconds=3600), 'WEST')), payload=1000.0, from_value=None, state=None, resource=KRNAssetDataStream(asset='test-asset-1', data_stream='motor_speed_set_point'), control_change_id=None)]), metadata={}, state=None))

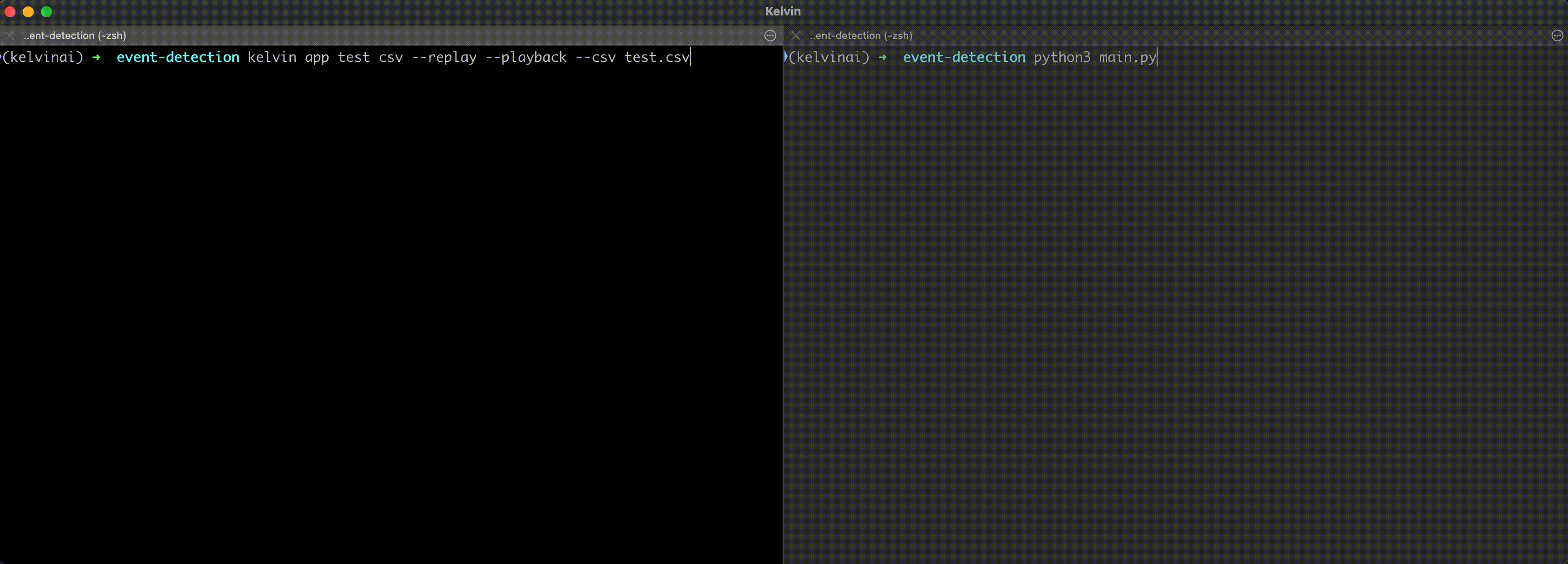

And here is a video showing the test in action:

As you can see, the SmartApp is receiving the motor temperature data and publishing a control change recommendation to decrease the motor speed set point.

Success

Congratulations! You have successfully tested your Kelvin SmartApp™.

Next Step

After successfully testing your Kelvin SmartApp™, we can now move onto packaging and uploading it to your Kelvin Cloud instance.
