Upload a SmartApp

In this page, you'll upload your SmartApp to the App Registry within your Kelvin Cloud instance. The App Registry is a centralized repository that stores all the SmartApps you create. Once uploaded, you can deploy your SmartApp to any Kelvin Edge cluster connected to your Kelvin Cloud instance.

Let's start by making sure your SmartApp is ready for upload.

Prerequisites

The info section in the app.yaml file defines crucial attributes such as the unique name, display name, description, and version of your app. Below is an example of what your app.yaml file might look like:

info:
  name: event-detection
  title: Event Detection
  description: Monitors if a motor is overheating. If so, it will send a Control Change to reduce the Motor Speed.
  version: 1.0.0

Conflicting Versions

If you try to upload an app with the same version number as an existing one in the App Registry, you’ll encounter an error. Always ensure you increment the version number before uploading.

SDK Login

Before uploading your app, you need to login the SDK with your Kelvin Cloud credentials.

Open a terminal and run the following command:

kelvin auth login <url.kelvin.ai>

And type in your Kelvin Cloud credentials when prompted.

Upload

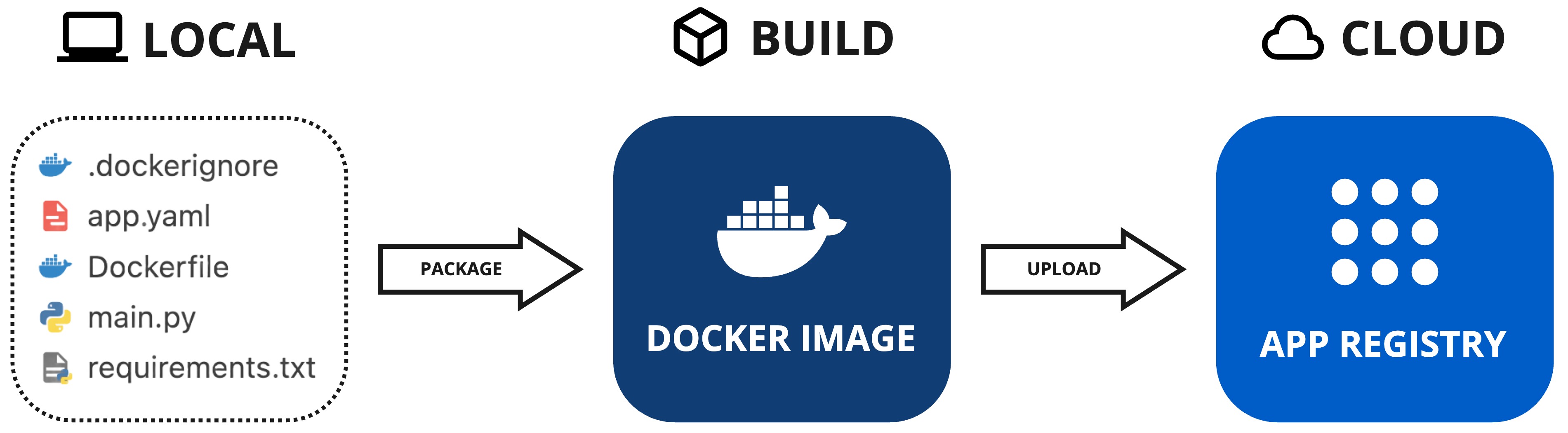

Uploading your app is straightforward and requires just a single command. Open a terminal in the directory where your app and its associated files are located, and run the following command:

Reminder

Make sure Docker is installed and running before executing the upload command. Docker is essential for packaging and uploading apps to the App Registry.

kelvin app upload

As the command runs, you will observe the app being packaged and subsequently uploaded to the App Registry. Here's a sample output:

[kelvin.sdk][2023-10-03 20:53:51][R] Image successfully built: "event-detection:1.0.0"
[kelvin.sdk][2023-10-03 20:53:51][I] Pushing application content to "https://<url.kelvin.ai>"
       [elapsed: 00:19] - [Layer: 2e1bc7550524] - [Pushed]
       [elapsed: 00:19] - [Layer: f15701d79da8] - [Layer already exists]
[kelvin.sdk][2023-10-03 20:54:10][R] Application "event-detection:1.0.0" successfully pushed to registry "https://<url.kelvin.ai>"
[kelvin.sdk][2023-10-03 20:54:10][R]

            Application successfully uploaded:
                Name: event-detection
                Version: 1.0.0
