Deploy Workload

Deploying a workload means that you select a Kelvin SmartApp or Docker App from the App Registry and deploy it to the edge to monitor and control nominated assets.

Note

The App Registry is a list of all Applications that have been developed and uploaded to the Kelvin Platform. You can see the full App Registry by going to Applications on the Kelvin UI.

The App Registry is already split up into groups with by type (Kelvin SmartApps™ or Docker App) or in a custom defined group.

When you deploy a workload, you can choose whether to deploy immediately or to stage the workload at the edge and apply it at a later time.

Field	Option	Description
Standard	None	This will use the standard Kubernetes deployment process for workload containers and the workload will be automatically started after downloaded to the edge.
Staged	Stage Only	This will download the workload to the edge but will not start the workload. You will need to send an additional command to start the workload either through the Kelvin API or locally in the terminal of the edge computer
Staged	Instant Apply	This will use Kelvin's deployment process for workload containers and the workload will be automatically started after downloaded to the edge. The difference to the Kubernetes deployment process is that Kelvin will download all workloads and stage them first. Only when all workloads have been successfully downloaded will the start command be given to all the workloads.

Default Settings

To simplify the deployment process, you can set default settings that will be automatically chosen when deploying.

Note

The default settings can overwritten during each deploy if special conditions are required.

When completing the deployment of a Workload there is an option to update the default settings with the current deploy selections.

Deploy Standard Workload

On this page we will show you how to deploy a standard workload.

To start, go to Applications, select an application with the Docker Apps tag , click on the Workloads tab then click on the Deploy Workload button;

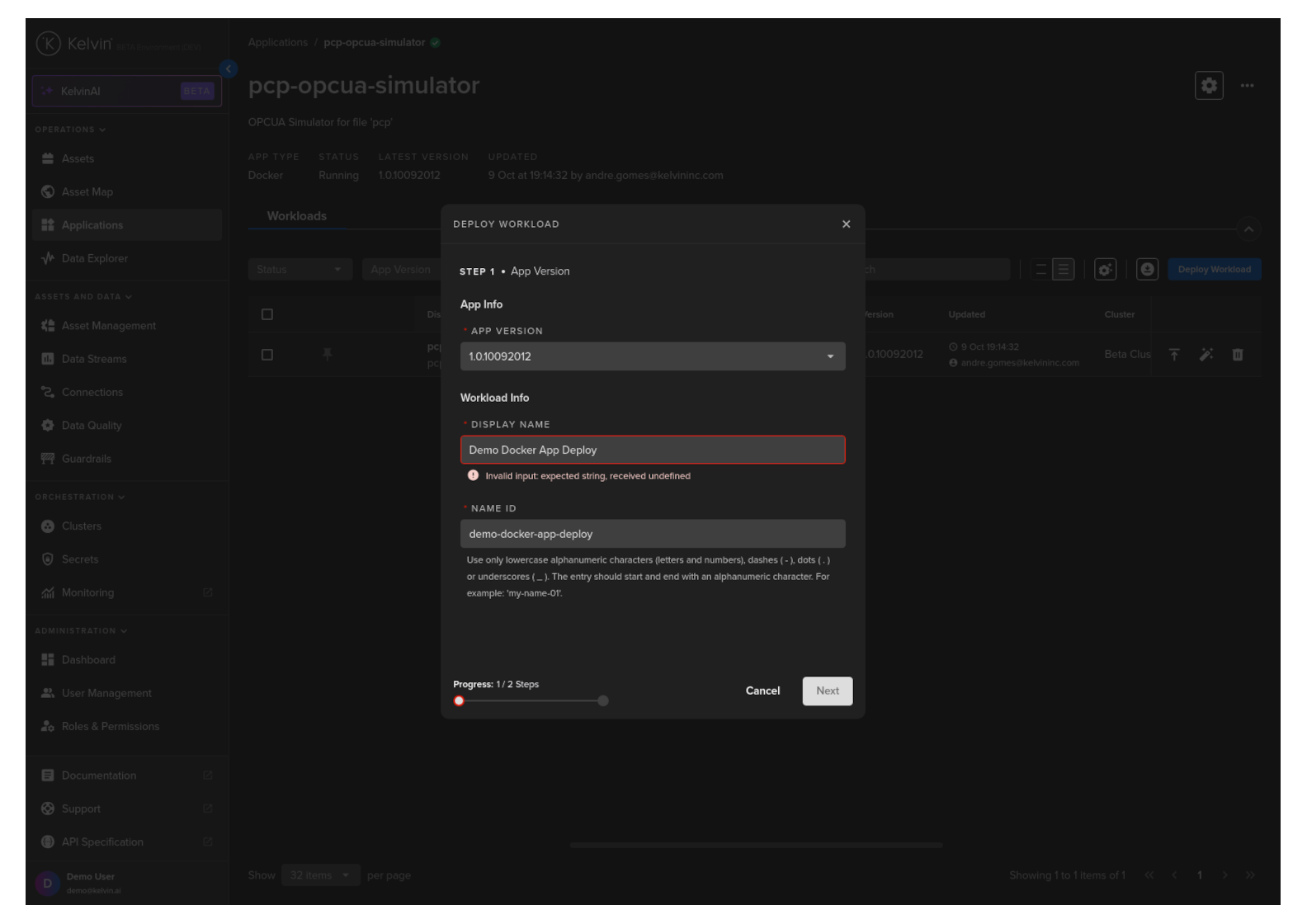

Select the Docker App version and give it a name. When ready click Next to go to Step 2.

Note

The ID will be filled in automatically when you type a name. Normally you can accept the default, though you have the option to create you own custom name ID.

In Step 2 you have a range of options available.

Note

You will only be able to deploy your workload once all options have a green check .

Configuration

Add any configuration information that is required by the Docker App.

System

Here you will be able to tune all the system variables that are present in the app.yaml file of the Docker App.

You can choose to edit it using a UI or directly on the YAML or JSON.

Note

Using YAML or JSON is very useful for fast application of settings if you have preset configurations and want to copy/paste them into here.

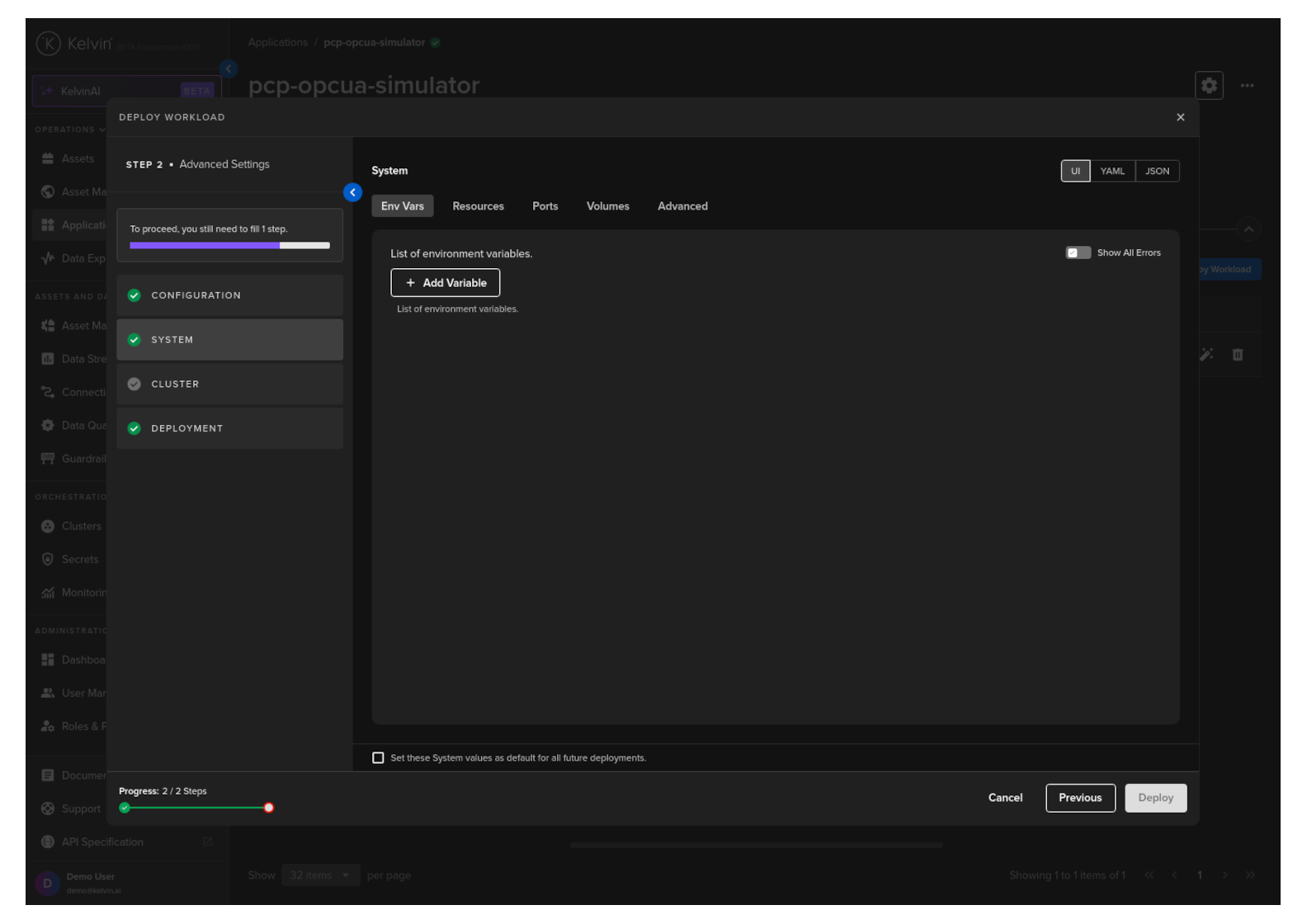

Env Vars

Here will be shown the list of default Environment Variables and the default values that were set in the app.yaml file of the Docker App during development.

You can edit these and change both the environment name or value. You can also add addition Environment variables.

Resources

Apply resources available for the Workload.

See Set CPU/Memory Limits for detailed documentation on this section.

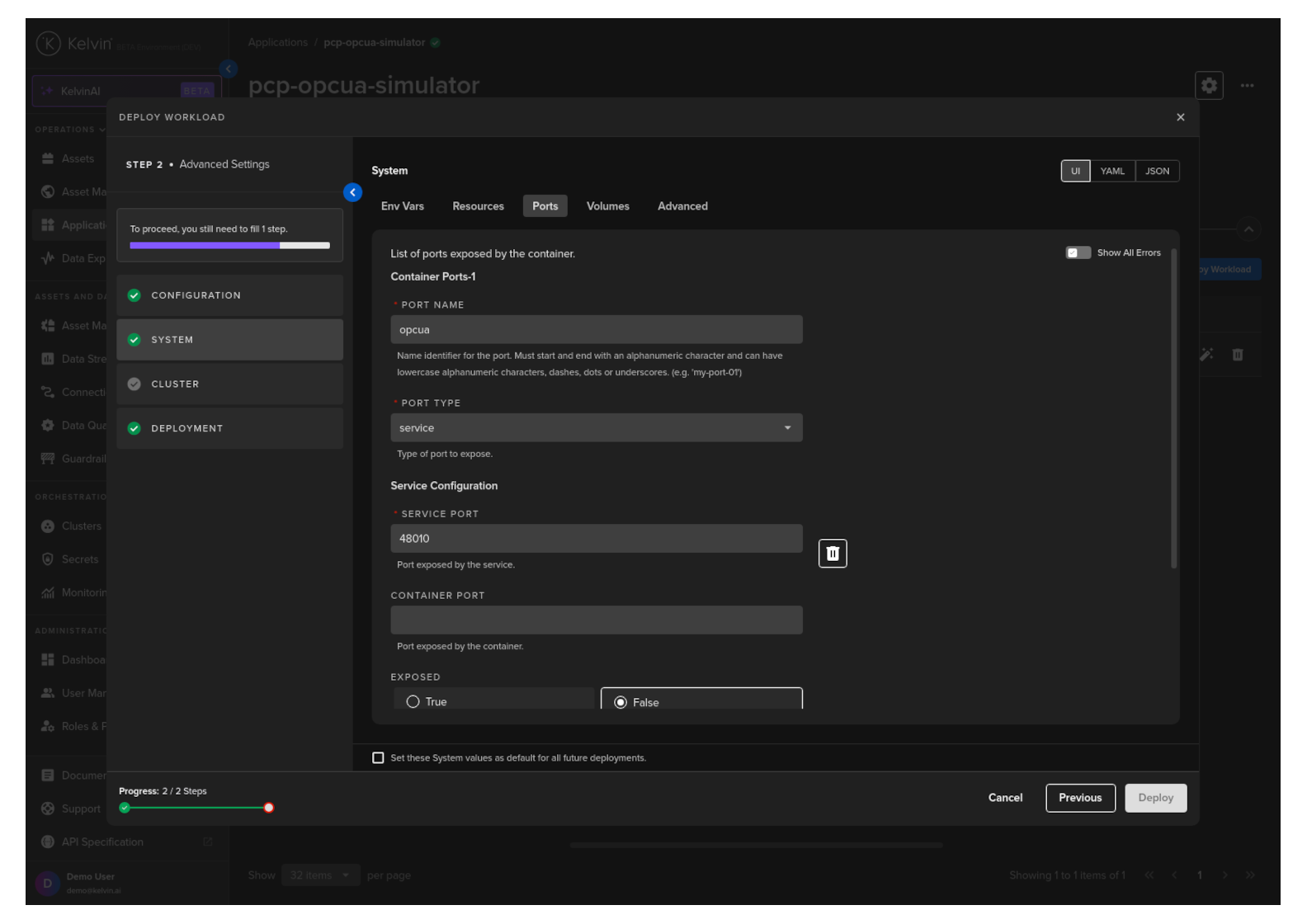

Ports

Open ports to your Workload.

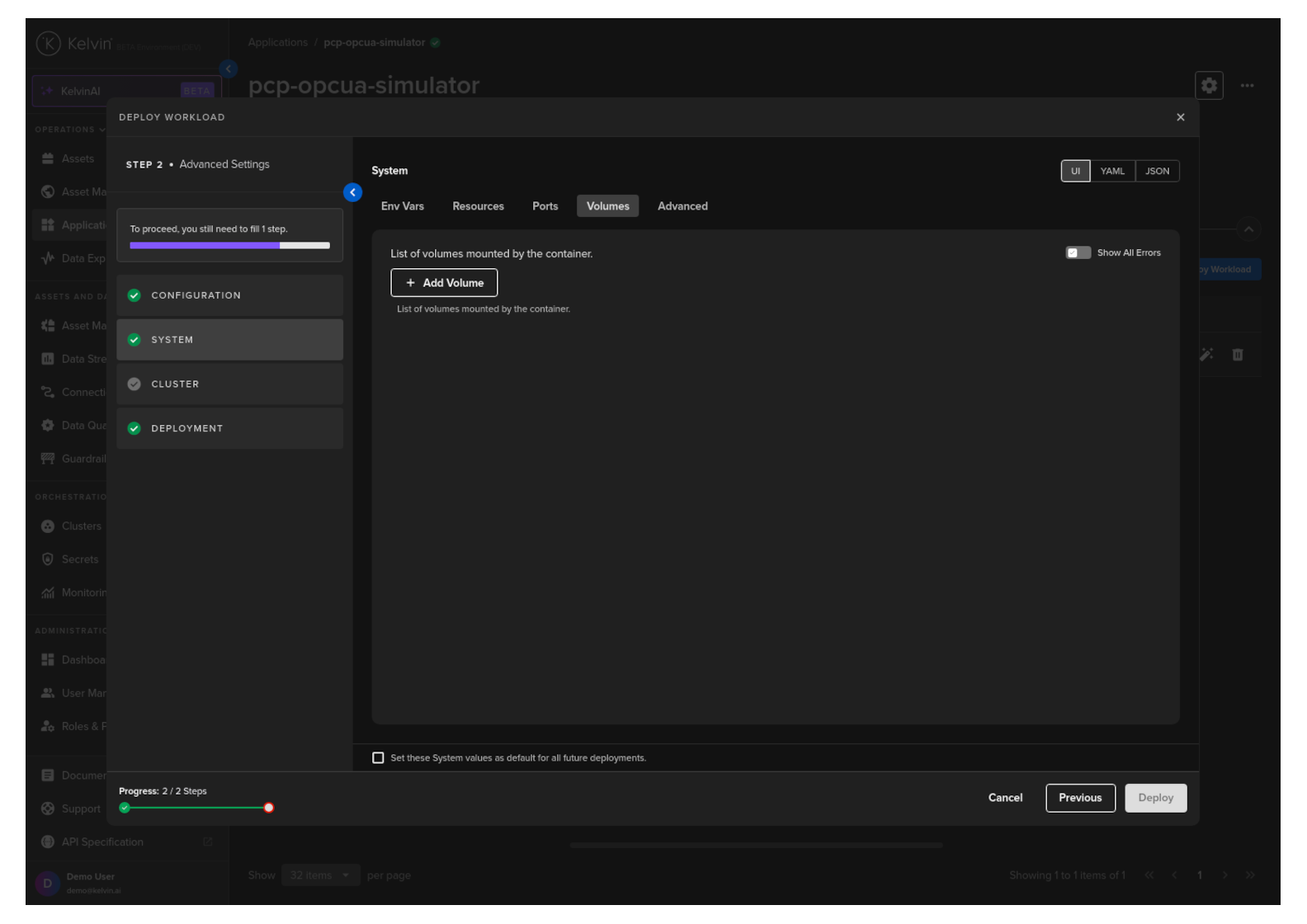

Volumes

Mount volumes to your Workload.

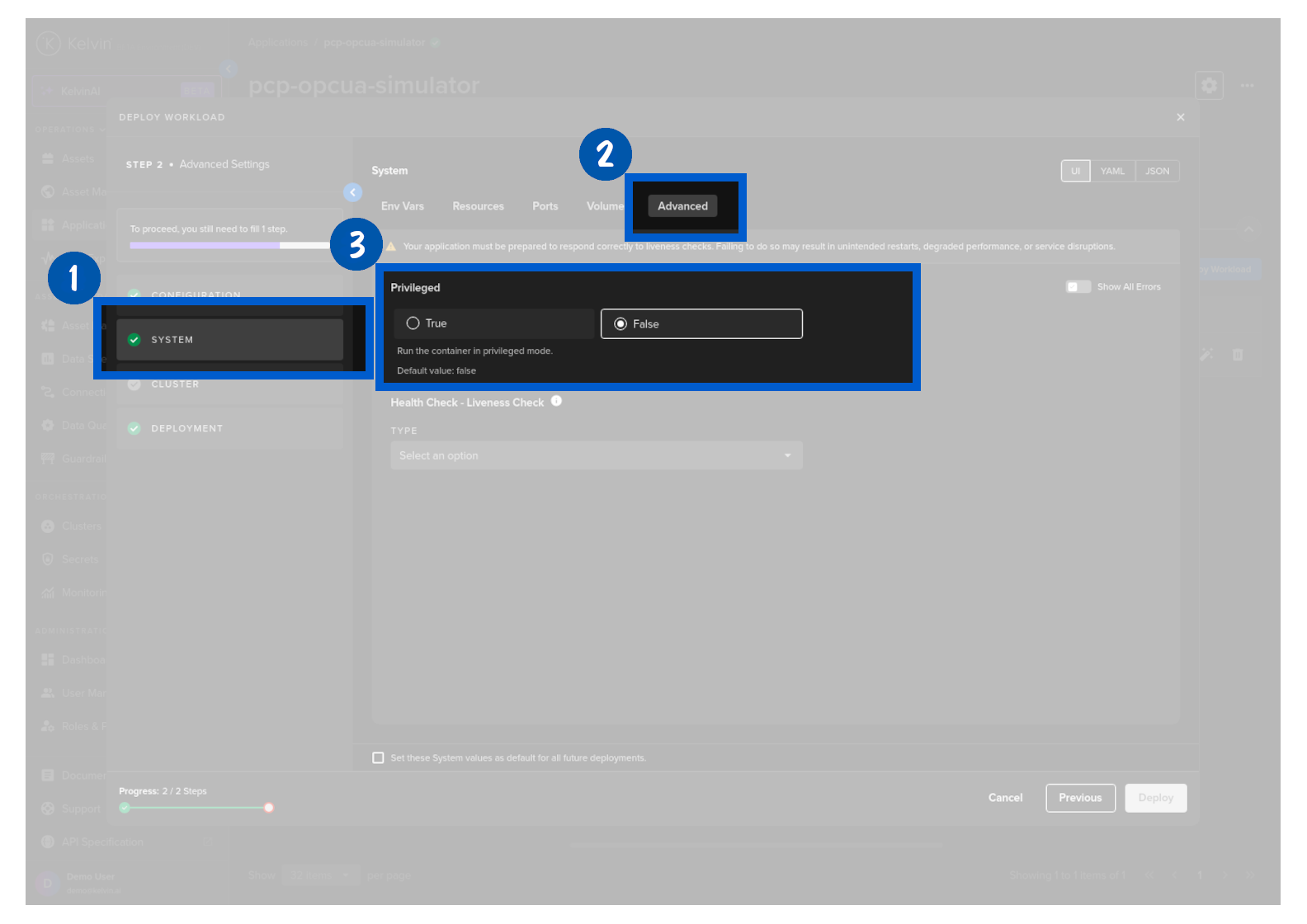

Advanced

Choose if you would like to add Privileged mode to the Workload;

Optionally choose a health check service for your Workload. These are Kubernetes liveness probes and detailed information can be found on the Kubernetes Website.

Warning

If you use a Health check option, make sure you add code to respond to the liveness probe requests.

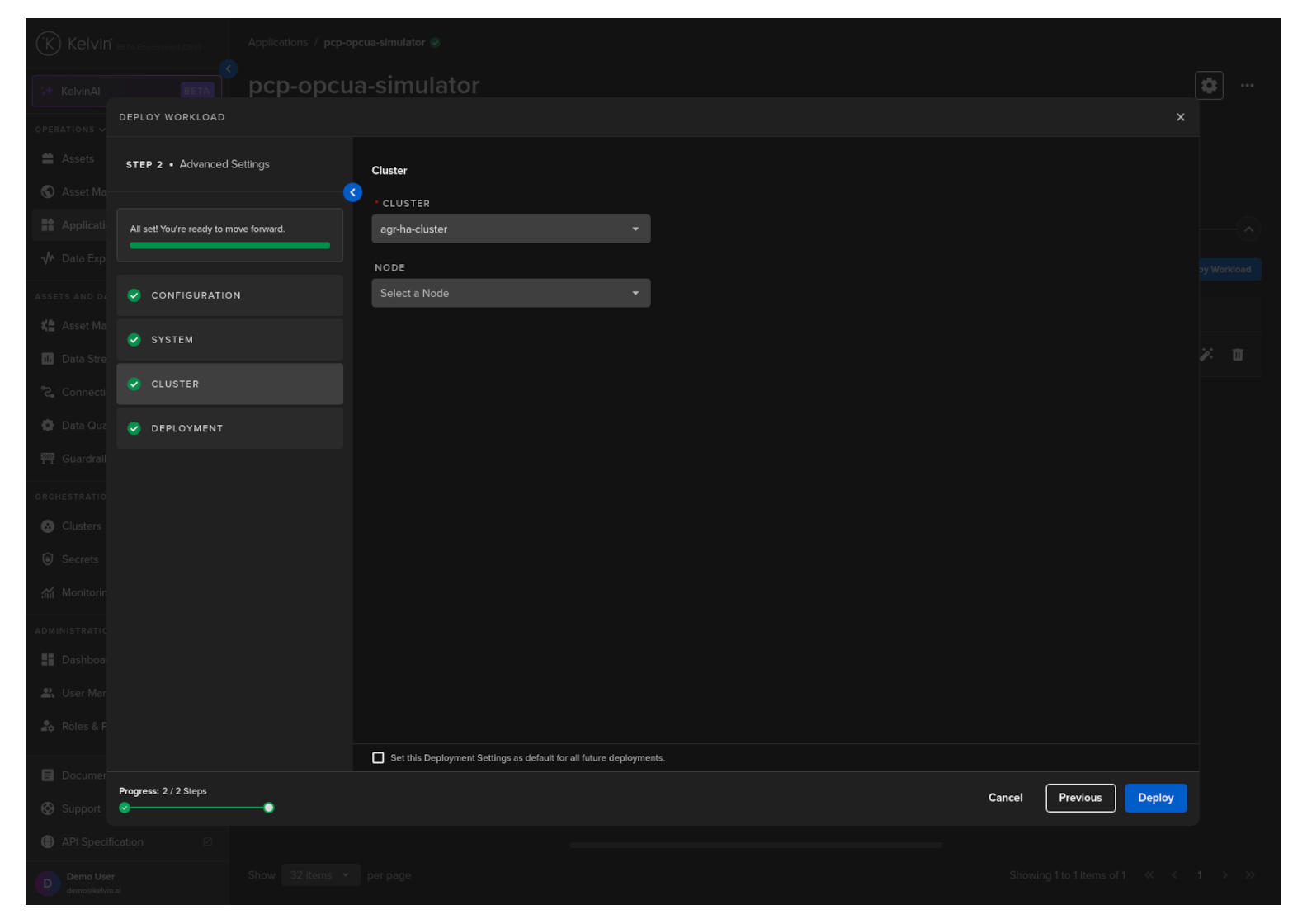

Cluster

Choose a cluster to run your Docker App on.

Deployment

For a standard Workload deployment, choose the Standard option.

Note

Stage Only and Instant Apply are covered in a different documentation section.

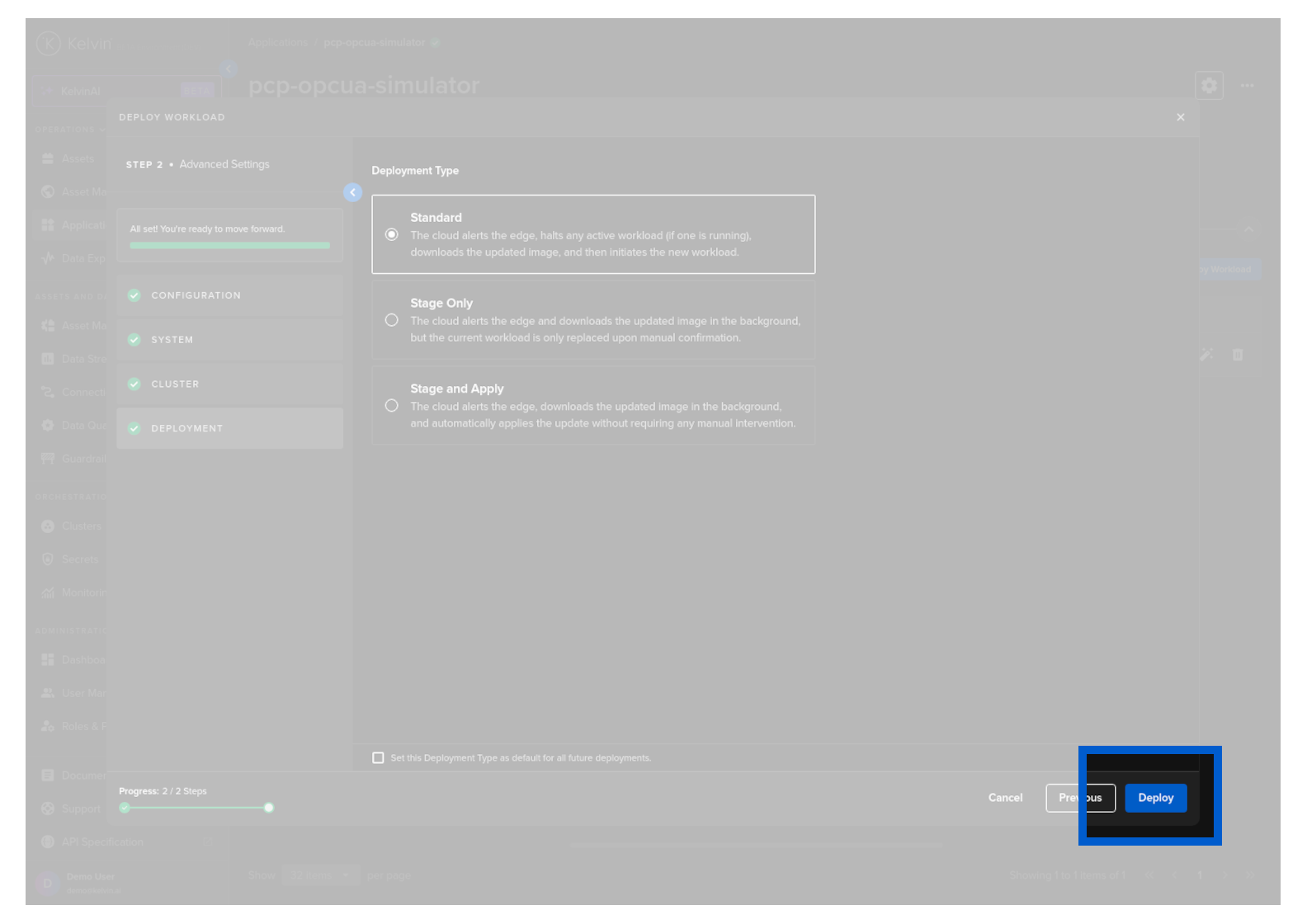

When you are ready and all mandatory areas are filled in, you will see the Deploy button turn blue.

You can then see the status of the Workload in the Workloads list going from Pending, Deploying to Running.

You can even deploy the app if the Cluster is offline. It will be placed in a queue with a status of Pending and will be automatically deployed when the Cluster comes back online.
