Deploy Kelvin SmartApp™
Now that you have your first SmartApp uploaded, you can deploy it to the assets that you previously created in your Kelvin Cloud instance.

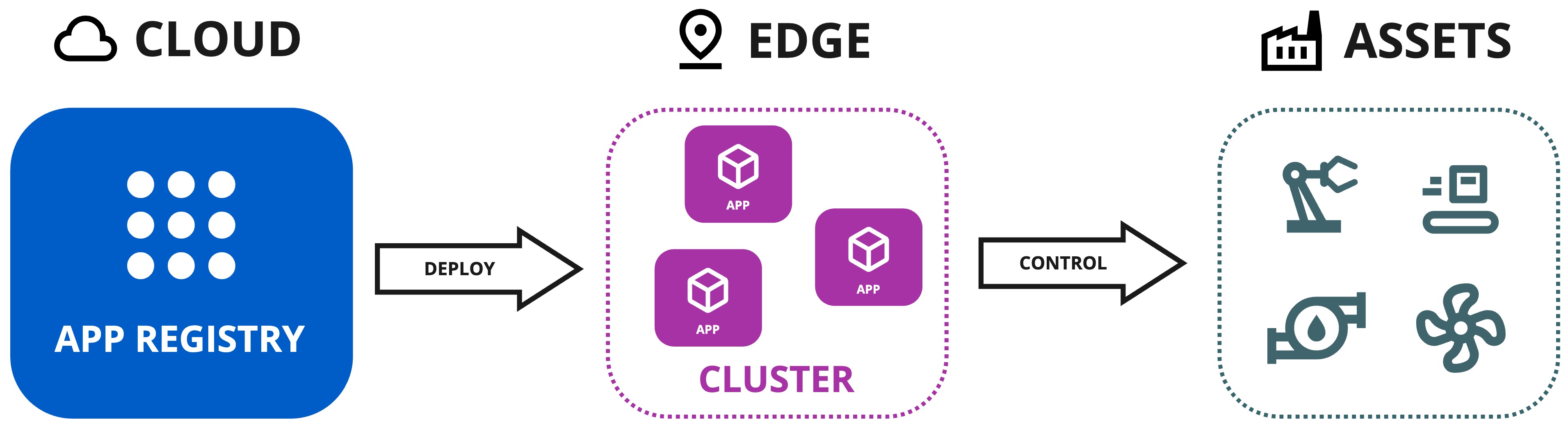

Before proceeding to add Assets to SmartApp in the Kelvin UI (which deploys a Workload to a Cluster in the background), make sure you have an active Cluster on your Instance and the default Cluster setting for Kelvin SmartApps™ deployment is set.
This demonstration video was done in v5.9.
There may be slight differences with the latest version.
Check the latest documentation for the specific tasks should any feature not quite work as expected.
Video Guide
Watch this quick start guide performed in real time in less than 2 minutes.
Written Guide
Open your browser and navigate to https://<instance>.kelvin.ai. Login with your credentials and you will be presented with the Kelvin UI.

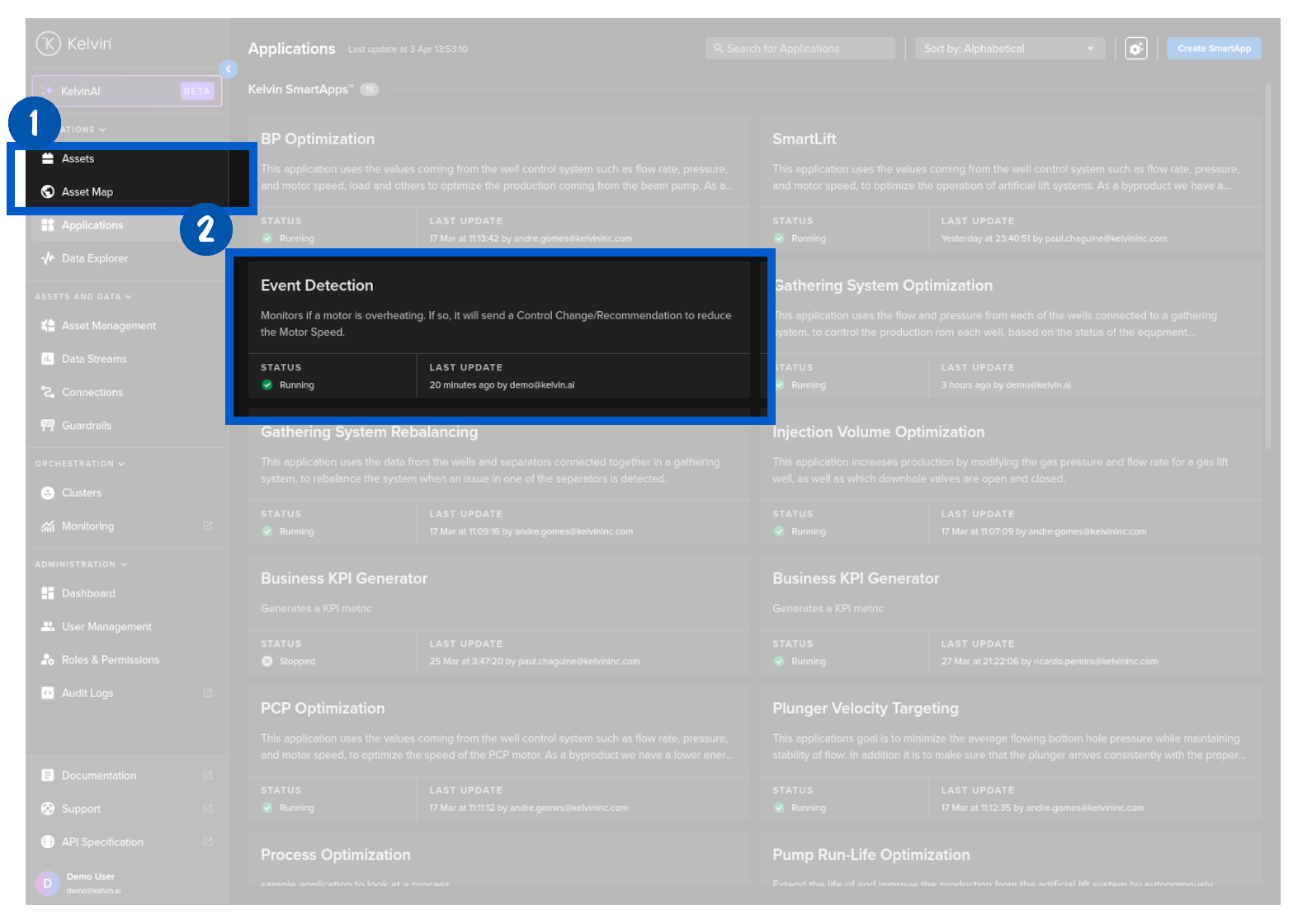

Go to Applications and select the Event Detection app you just uploaded.

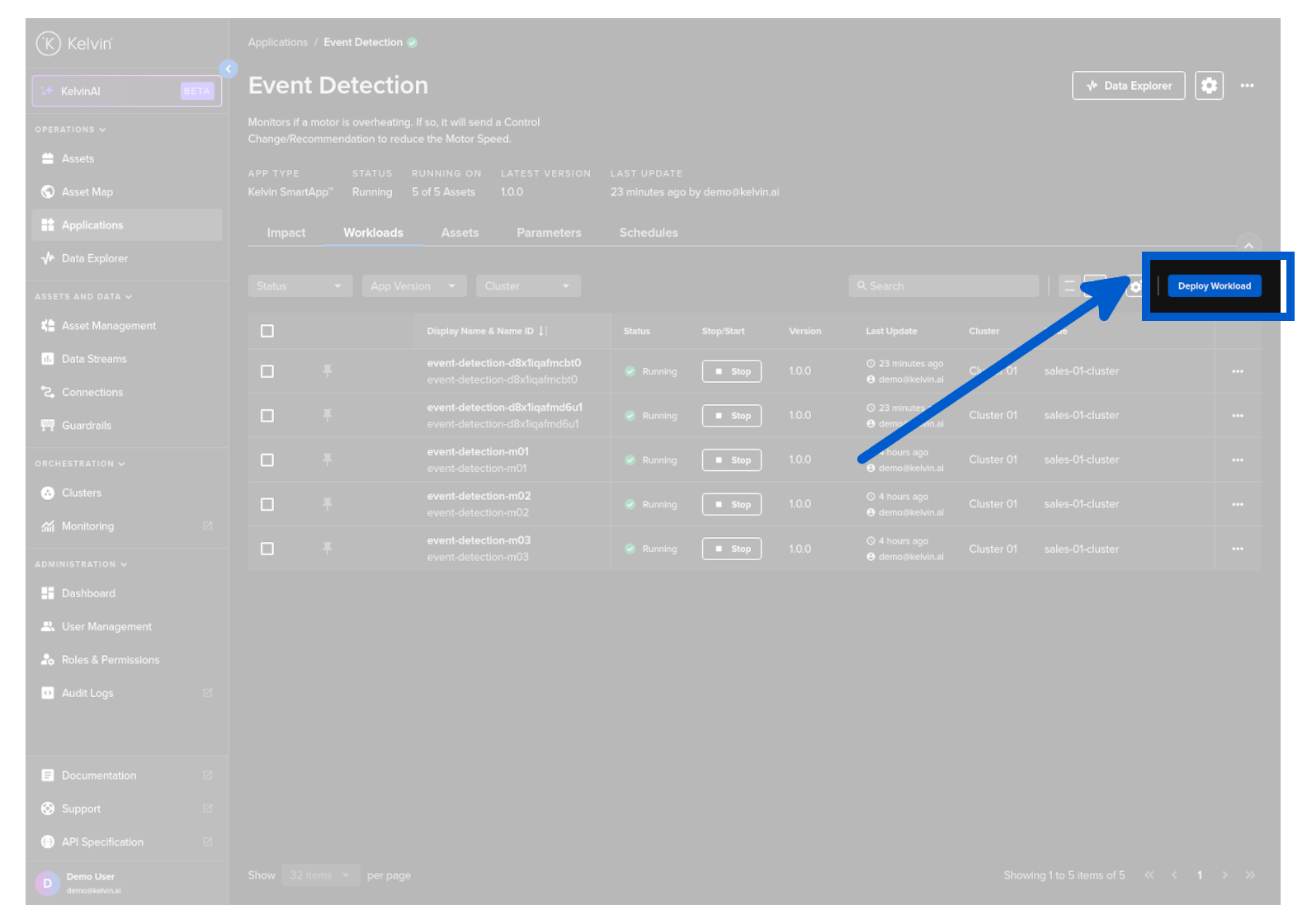

The next step is to deploy the app to assets. Click on the Workloads tab an then on the Deploy Workload button.

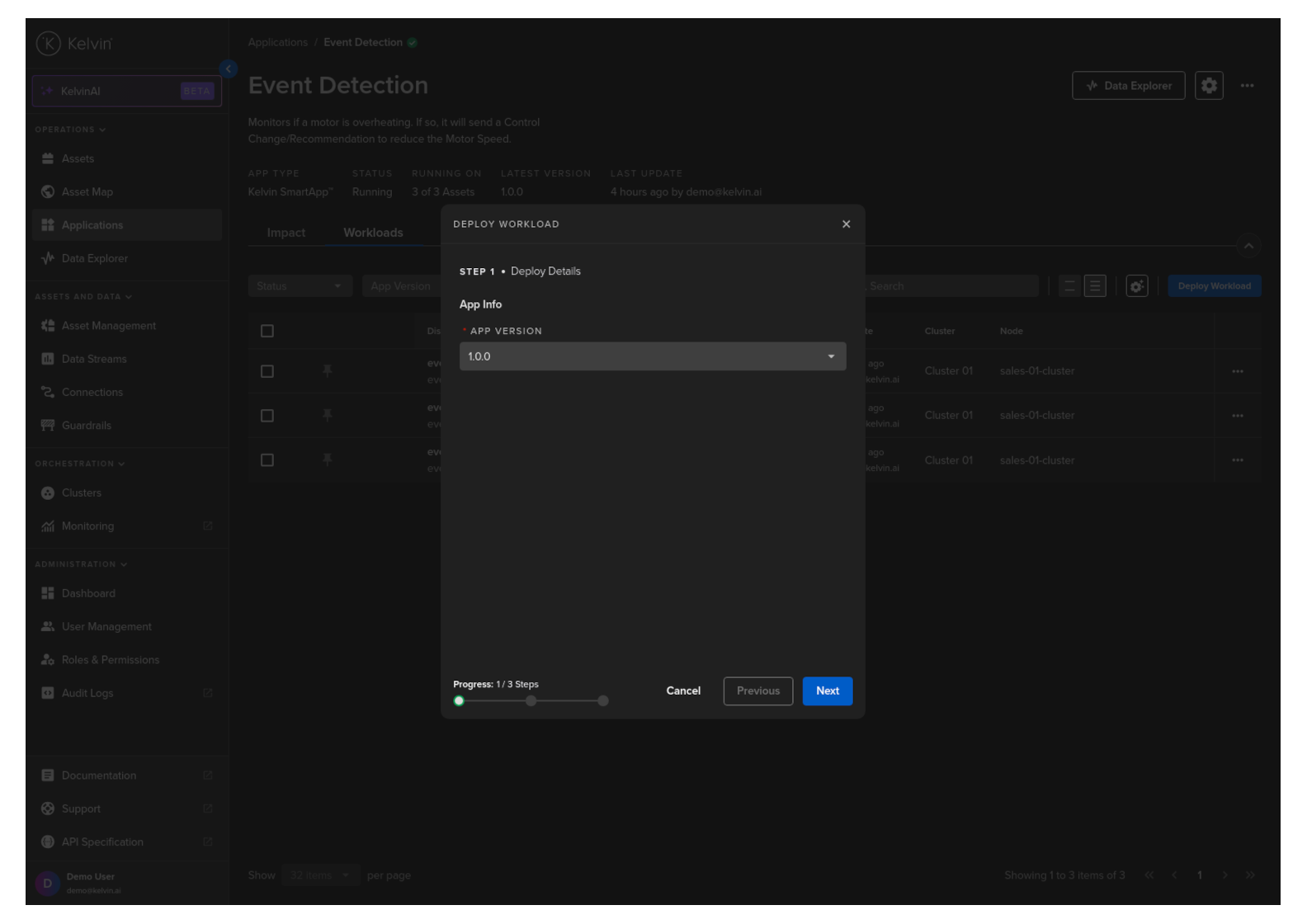

Choose the app latest version and then click the Next button.

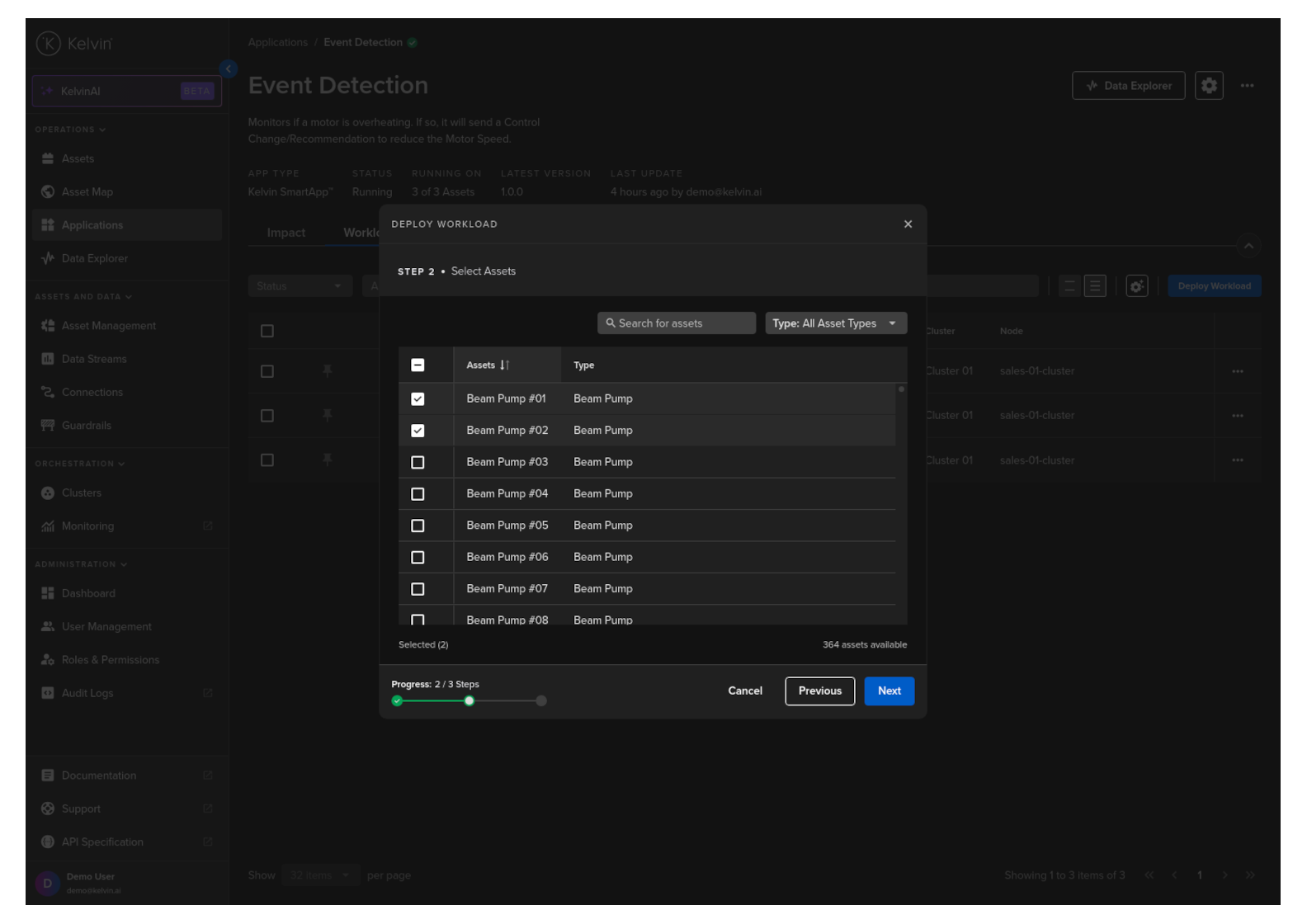

Select the assets you want to deploy to the app. In this case we will select the assets with the name Beam Pump #02 and Beam Pump #03 and then click the Next button.

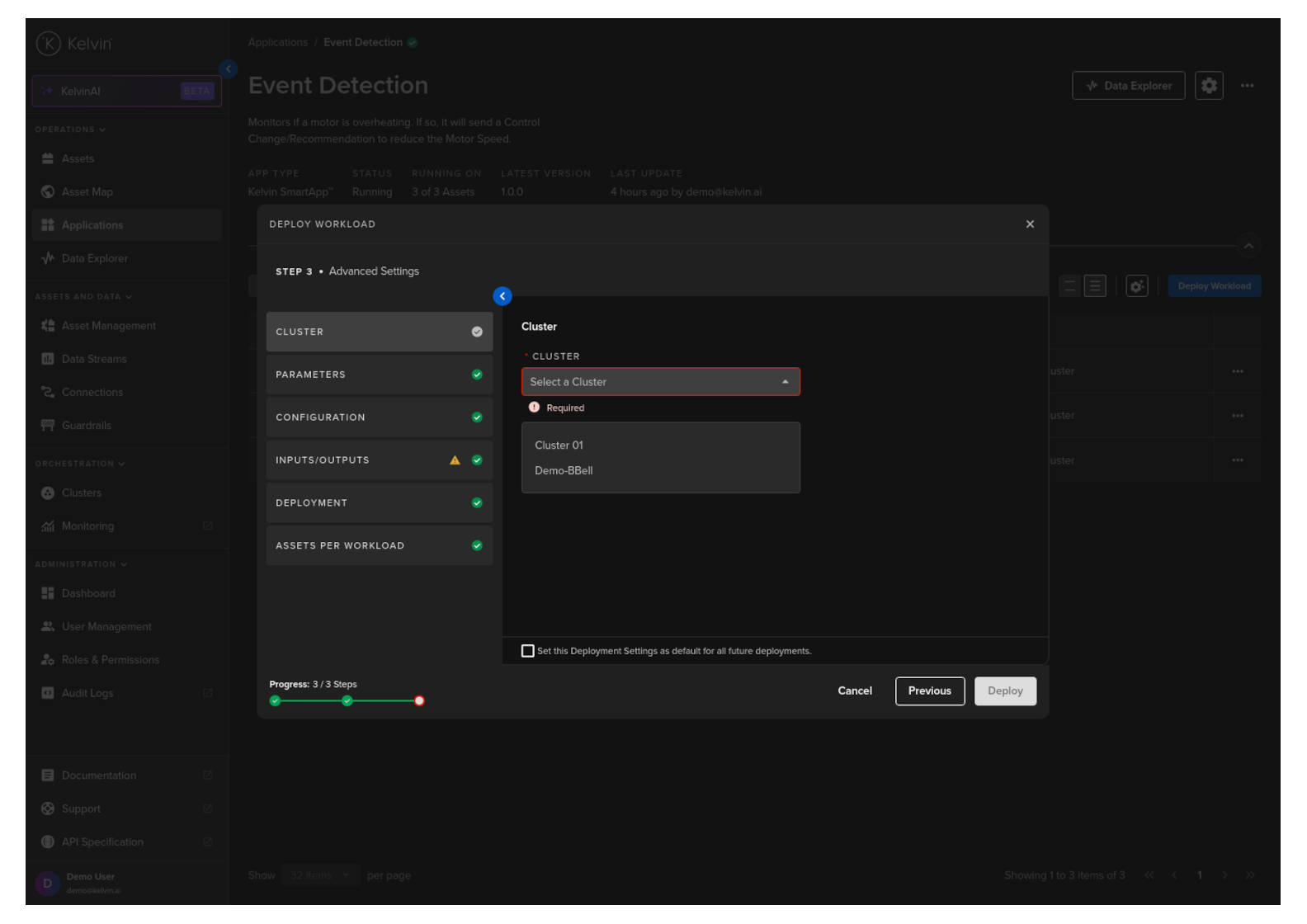

In step three under the Cluster settings, select the cluster to deploy the workload assets to.

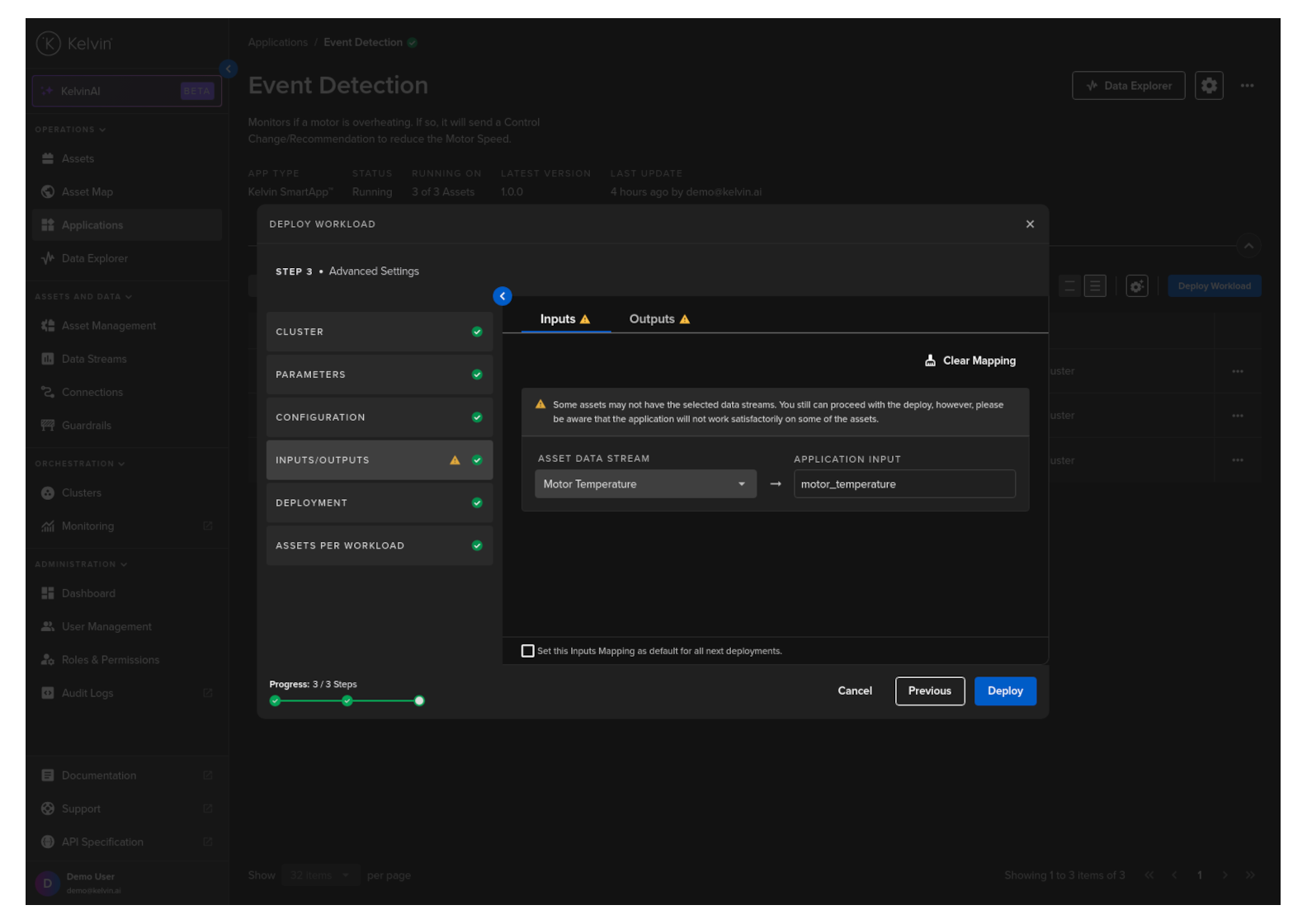

In the next step, we'll map the asset data streams to the SmartApp inputs and outputs. This entails channeling the live data from the assets directly into the application.
Kelvin will oversee the data routing to the Kelvin SmartApp™; your role is to ensure the correct data stream is selected to feed into the SmartApp inputs.
For the Event Detection Kelvin SmartApp™, we have a singular input named motor_temperature. Thus, we'll be selecting the Temperature data stream from the asset.
Like the input, the output should already be automatially selected to the closest type of Data Stream name available. Normally this should be ok.
And the final step is to click on the Deploy button to deploy the app to the assets.

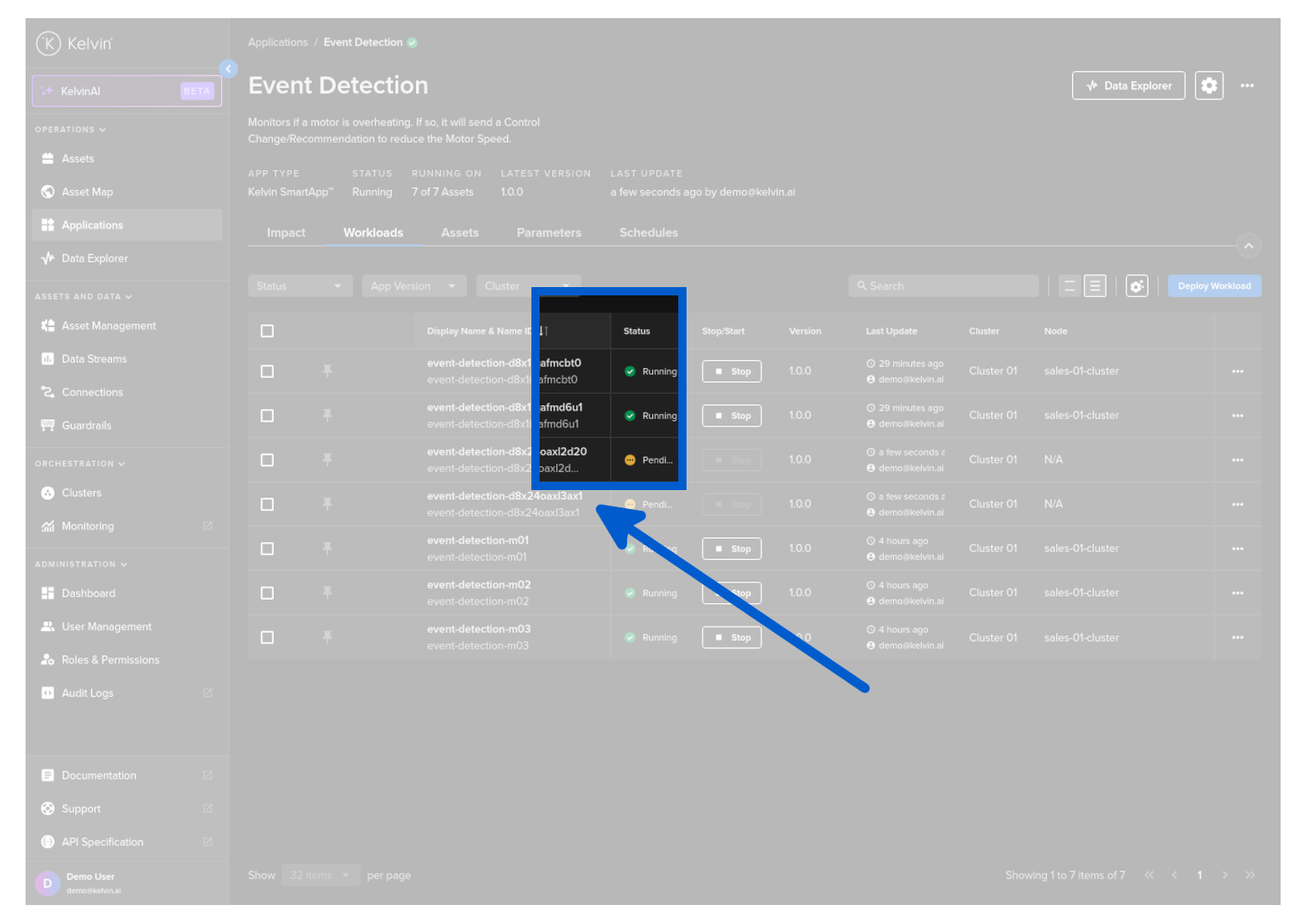

You can observe the workload being deployed to the assets. And in a couple of seconds the app will be running for the assets.
Congratulations! You've successfully deployed your SmartApp to your assets.
Next Step
Now that you have your first Kelvin SmartApp™ deployed to your assets, you can visualize the recommendations, control changes and monitor the logs and telemetry of your app.
