Download Timeseries

Available Guides

Reference:

Field Description
resource Asset / Data Stream pair in KRN format. The KRN format is krn:ad:<asset_name>/<data_stream_name>
payload The data value
timestamp Exact UTC time when the data value was recorded, formatted in ISO 8601.
data_type Type of data stored, such as number, string, or boolean.
source User, Workload or Application that created the data in the Cloud
fields The field name keys for the data saved. By default this is just value
created UTC time when the data was created, formatted in ISO 8601.
updated UTC time when any of the data information was updated, formatted in ISO 8601.

Download Raw Timeseries Data

You can export a range of data from the Data Explorer page.

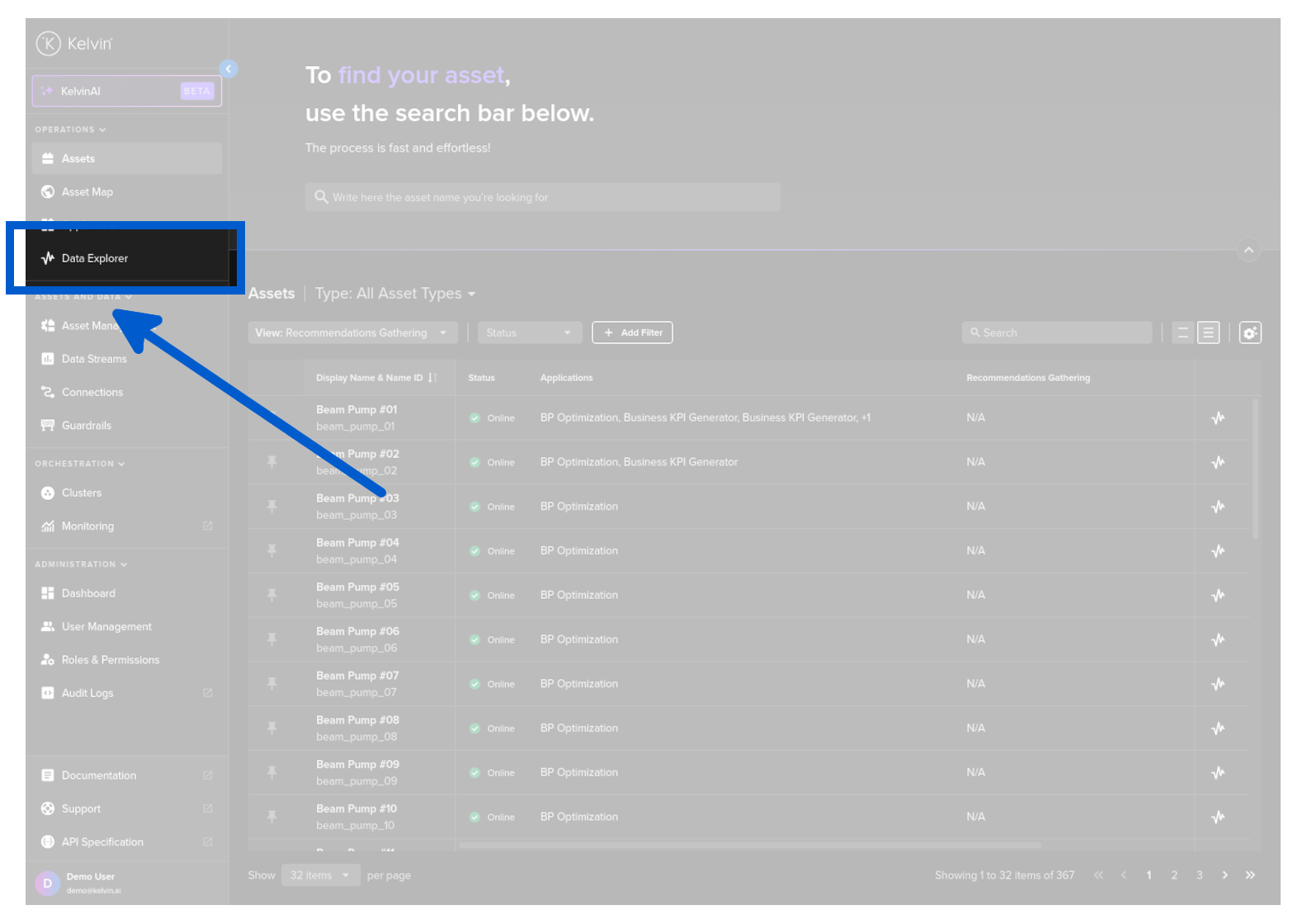

To do this go to the Data Explorer page.

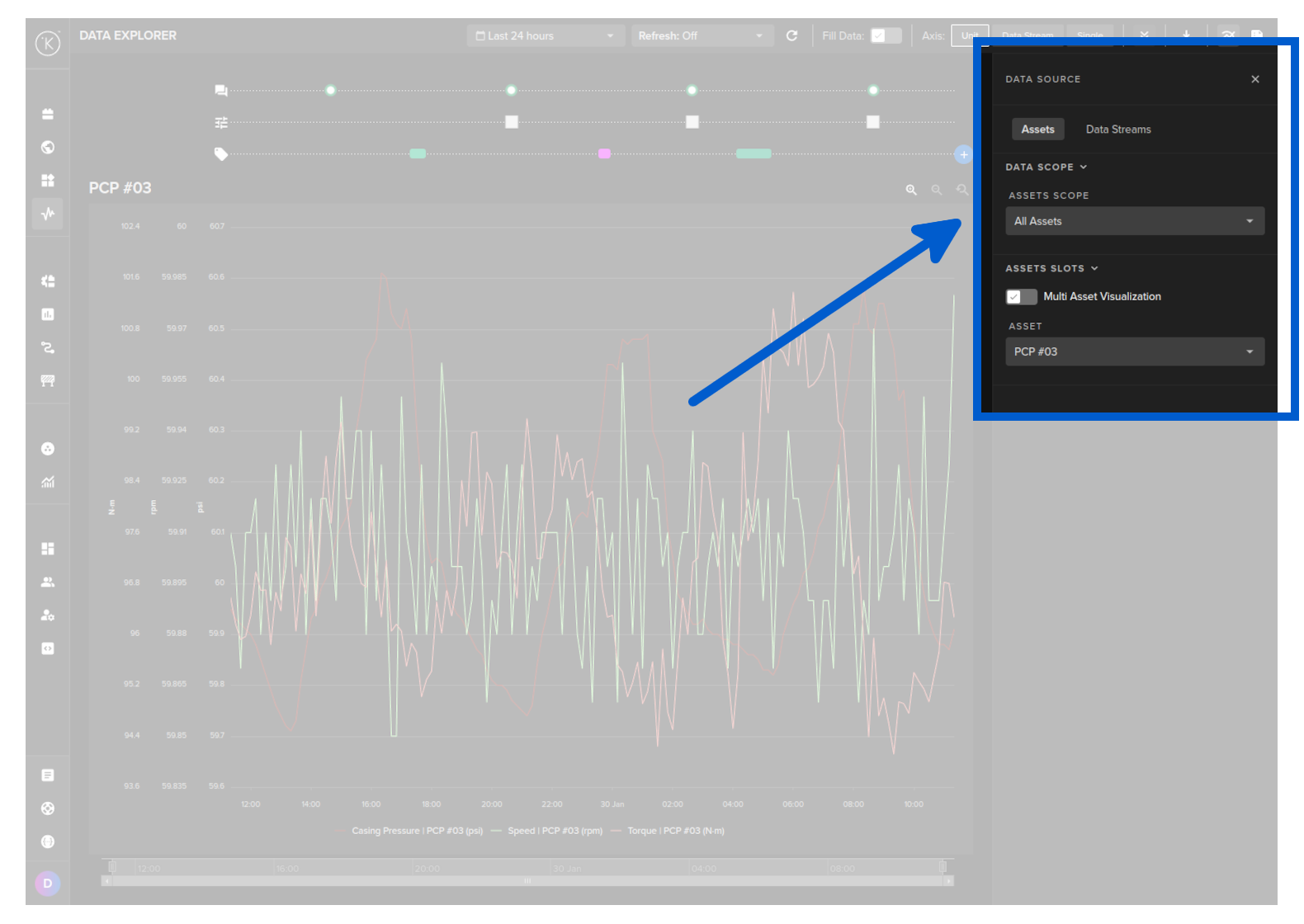

Select the Asset.

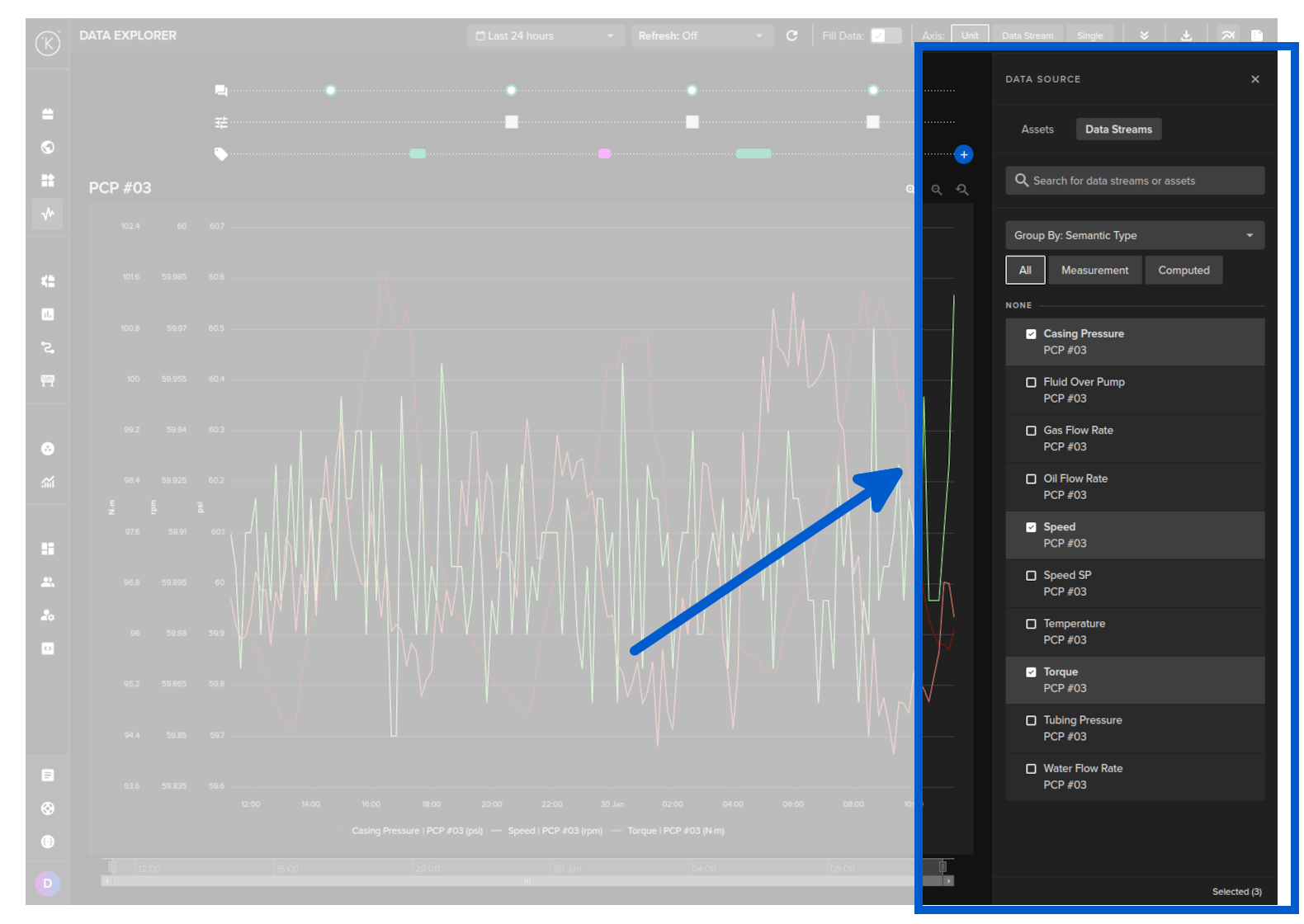

Select one Data Stream only.

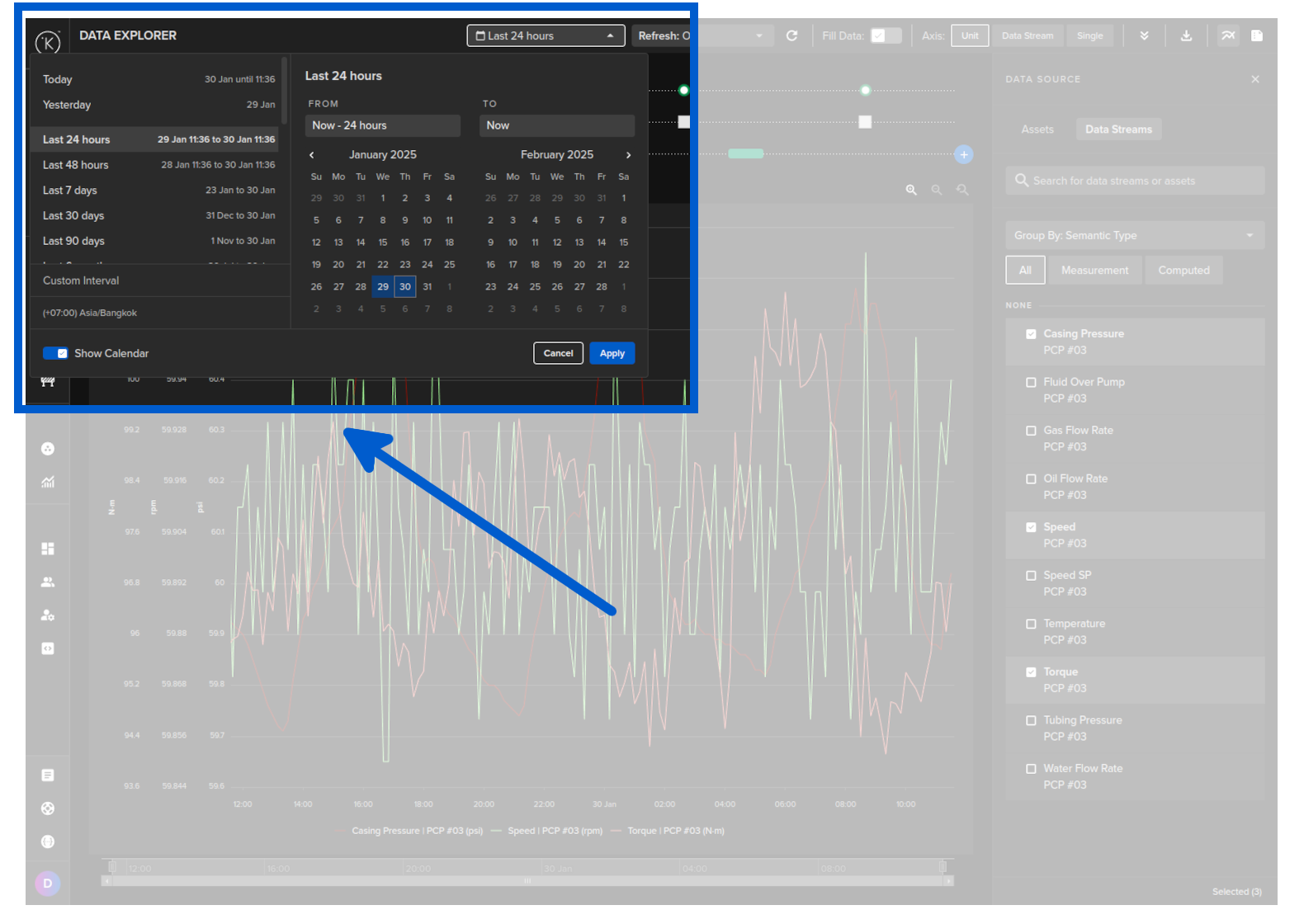

Choose a time period.

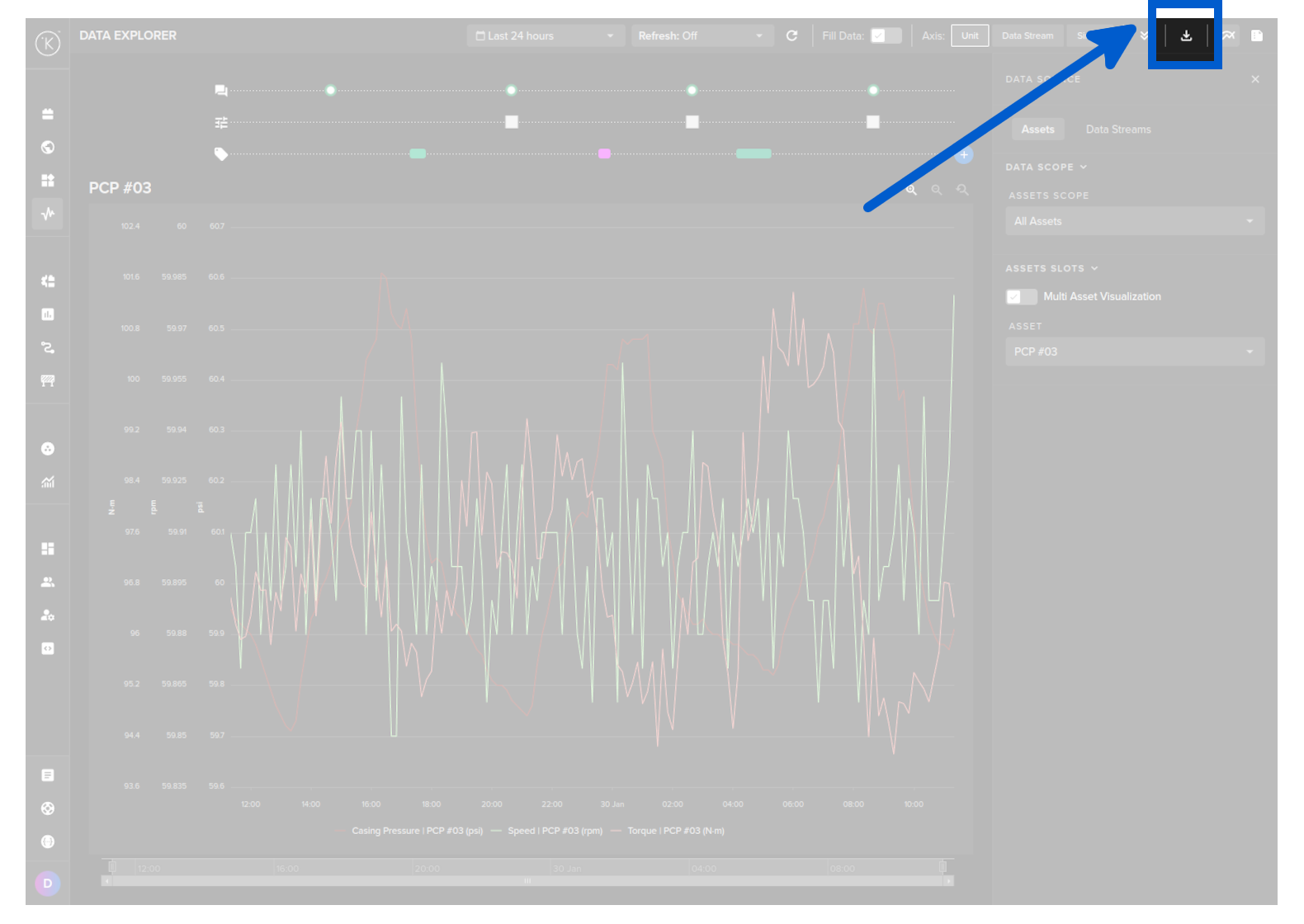

Then click on the download button.

API cURL Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
curl -X "POST" \
  "https://<url.kelvin.ai>/api/v4/timeseries/range/get" \
  -H "Authorization: Bearer <Your Current Token>" \
  -H "Accept: application/x-json-stream" \
  -H "Content-Type: application/json" \
  -d '{
        "start_time": "2024-04-18T12:00:00.000000Z",
        "end_time": "2024-04-19T12:00:00.000000Z",
        "selectors": [
          {
            "resource": "krn:ad:pcp_01/casing_pressure"
          }
        ]
      }'

You will receive a response body with a status code of 200, indicating a successful operation.

For example, the response body might look like this:

API cURL Example Response
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
[
   {
      "resource":"krn:ad:pcp_01/casing_pressure",
      "payload":9.207480441058955,
      "timestamp":"2024-04-18T12:00:00.000000Z"
   },
   {
      "resource":"krn:ad:pcp_01/casing_pressure",
      "payload":10.558049248009134,
      "timestamp":"2024-04-18T13:00:00.000000Z"
   },
   {
      "resource":"krn:ad:pcp_01/casing_pressure",
      "payload":10.213212569176205,
      "timestamp":"2024-04-18T14:00:00.000000Z"
   },
   {
      "resource":"krn:ad:pcp_01/casing_pressure",
      "payload":10.550493801775435,
      "timestamp":"2024-04-18T15:00:00.000000Z"
   },
   {
      "resource":"krn:ad:pcp_01/casing_pressure",
      "payload":8.934414753917585,
      "timestamp":"2024-04-18T16:00:00.000000Z"
   }
]

We will convert the information into a Pandas DataFrame.

API Client (Python) Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
from kelvin.api.client import Client

# Login
client = Client(config={"url": "https://<url.kelvin.ai>", "username": "<your_username>"})
client.login(password="<your_password>")

# Get Time Series Data
response = client.timeseries.get_timeseries_range(
    data={
        "start_time": "2024-12-16T12:00:00.000000Z",
        "end_time": "2024-12-18T12:00:00.000000Z",
        "selectors": [
            {
                "resource": "krn:ad:pcp_01/casing_pressure",
            }
        ]
    }
)

# Convert the response into a Pandas DataFrame
df = response.to_df(datastreams_as_column=True)

# Print the result
print(df)

The response will look something like this;

API Client (Python) Example Response
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
datastream_name                        timestamp asset_name  casing_pressure
0               2024-12-16 12:00:04.186969+00:00     pcp_01        55.595757
1               2024-12-16 12:00:09.163840+00:00     pcp_01        55.594723
2               2024-12-16 12:00:14.197772+00:00     pcp_01        55.594723
3               2024-12-16 12:00:19.298752+00:00     pcp_01        55.583904
4               2024-12-16 12:00:24.277415+00:00     pcp_01        55.583904
...                                          ...        ...              ...
34127           2024-12-18 11:30:39.200059+00:00     pcp_01        55.634033
34128           2024-12-18 11:30:44.170291+00:00     pcp_01        55.635864
34129           2024-12-18 11:30:49.214021+00:00     pcp_01        55.635864
34130           2024-12-18 11:30:54.382963+00:00     pcp_01        55.630901
34131           2024-12-18 11:30:59.105374+00:00     pcp_01        55.630901

[34132 rows x 3 columns]

Download Raw Timeseries Data to CSV file

You can download a range of data from the Data Explorer page.

You can only download the raw data. It is not possible in Kelvin UI to aggregate the data before downloading.

You will need to aggregate the data in a spreadsheet or other third party program.

To do this go to the Data Explorer page.

Select the Asset.

Select one Data Stream only.

Choose a time period.

Then click on the download button.

API cURL Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
curl -X "POST" \
  "https://<url.kelvin.ai>/api/v4/timeseries/range/download" \
  -H "Authorization: Bearer <Your Current Token>" \
  -H "Accept: text/csv" \
  -H "Content-Type: application/json" \
  -d '{
        "start_time": "2024-04-18T12:00:00.000000Z",
        "end_time": "2024-04-19T12:00:00.000000Z",
        "selectors": [
          {
            "resource": "krn:ad:pcp_01/casing_pressure"
          }
        ]
      }' > data.csv

The data.csv file will look something like this;

Sample Downloaded Timeseries Data CSV File
1
2
3
resource,time,value
krn:ad:pcp_01/casing_pressure,2024-04-18T15:00:00.000000Z,11.768450335460644
krn:ad:pcp_01/casing_pressure,2024-04-18T16:00:00.000000Z,8.934414753917585

We will save the information into a CSV file.

API Client (Python) Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
from kelvin.api.client import Client

# Login
client = Client(config={"url": "https://<url.kelvin.ai>", "username": "<your_username>"})
client.login(password="<your_password>")

# Save Time Series Range of Data to CSV
response = client.timeseries.download_timeseries_range(
    data={
        "start_time": "2024-04-18T12:00:00.000000Z",
        "end_time": "2024-04-19T12:00:00.000000Z",
        "selectors": [
            {
                "resource": "krn:ad:pcp_01/casing_pressure"
            }
        ]
    }
)

# Open a file in write mode
with open('data.csv', 'w') as file:
    # Write the response to the file
    file.write(response)

The data.csv file will look something like this;

API Client (Python) Example Response
1
2
3
resource,time,value
krn:ad:pcp_01/casing_pressure,2024-04-18T15:00:00.000000Z,11.768450335460644
krn:ad:pcp_01/casing_pressure,2024-04-18T16:00:00.000000Z,8.934414753917585

Download Aggregated Timeseries Data

In Time Series API, you can download a range of data either in a raw format or aggregated format. The type of aggregation possible depends on the Data Type for the Asset / Data Stream pair.

Available Aggregations:

Data Type Aggregate Option Description
number none Raw data is returned
count Counts the number of values within each time bucket.
distinct Returns distinct values within each time_bucket bucket.
integral Calculates the area under the curve for each time_bucket bucket.
mean Calculates the average value within each time bucket.
median Finds the middle value in each time bucket.
mode Identifies the most frequently occurring value in each time time_bucket.
spread Represents the difference between the max and min values within each time time_bucket.
stddev Measures variation within each time time_bucket.
sum Adds up all the values within each time time_bucket.
string none Raw data is returned
count Counts the number of values within each time_bucket bucket.
distinct Returns distinct values within each time time_bucket.
mode Identifies the most frequently occurring value in each time time_bucket.

There are also the options to;

  • time_bucket: The window of data to aggregate, e.g. 5m, 1h (see https://golang.org/pkg/time/#ParseDuration for the acceptable formats)
  • time_shift: The offset for each window.
  • fill: allows you to fill missing points from a time bucket. It might be one of: none (default); null; linear (performs a linear regression); previous (uses the previous non-empty value); or an int.

In this example we will get the mean value per hour over a 24 hour period for an Asset / Data Stream pair. The Asset name is pcp_01 and the Data Stream name is casing_pressure.

It is not possible to export aggregated data from the Kelvin UI.

API cURL Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
curl -X "POST" \
  "https://<url.kelvin.ai>/api/v4/timeseries/range/get" \
  -H "Authorization: Bearer <Your Current Token>" \
  -H "Accept: application/x-json-stream" \
  -H "Content-Type: application/json" \
  -d '{
        "start_time": "2024-04-17T12:00:00.000000Z",
        "end_time": "2024-04-18T12:00:00.000000Z",
        "selectors": [
          {
            "resource": "krn:ad:pcp_01/casing_pressure"
          }
        ],
        "agg": "mean",
        "fill": "none",
        "group_by_selector": True,
        "time_bucket": "1h",
        "time_shift": "1h"
      }'

You will receive a response body with a status code of 200, indicating a successful operation.

For example, the response body might look like this:

API cURL Example Response
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
[
  {
    "resource": "krn:ad:pcp_01/casing_pressure",
    "payload": 55.81689687106529,
    "timestamp": "2024-04-17T01:00:00.000000Z",
  },
  {
    "resource": "krn:ad:pcp_01/casing_pressure",
    "payload": 55.802643852964586,
    "timestamp": "2024-04-18T01:00:00.000000Z",
  },
  {
    "resource": "krn:ad:pcp_01/casing_pressure",
    "payload": 55.65272958881385,
    "timestamp": "2024-04-19T01:00:00.000000Z",
  },
  {
    "resource": "krn:ad:pcp_01/casing_pressure",
    "payload": 55.672962275470624,
    "timestamp": "2024-04-20T01:00:00.000000Z",
  },
  {
    "resource": "krn:ad:pcp_01/casing_pressure",
    "payload": 55.79699800861461,
    "timestamp": "2024-04-21T01:00:00.000000Z",
  },
  {
    "resource": "krn:ad:pcp_01/casing_pressure",
    "payload": 55.75498124182507,
    "timestamp": "2024-04-22T01:00:00.000000Z",
  },
  {
    "resource": "krn:ad:pcp_01/casing_pressure",
    "payload": 55.71693869571614,
    "timestamp": "2024-04-23T01:00:00.000000Z",
  },
  {
    "resource": "krn:ad:pcp_01/casing_pressure",
    "payload": 55.93863554640519,
    "timestamp": "2024-04-24T01:00:00.000000Z",
  },
  {
    "resource": "krn:ad:pcp_01/casing_pressure",
    "payload": 59.94188689356177,
    "timestamp": "2024-04-25T01:00:00.000000Z",
  },
]

We will convert the information into a Pandas DataFrame.

API Client (Python) Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
from kelvin.api.client import Client

# Login
client = Client(config={"url": "https://<url.kelvin.ai>", "username": "<your_username>"})
client.login(password="<your_password>")

# Get Time Series Aggregated Range of Data
response = client.timeseries.get_timeseries_range(
    data={
        "start_time": "2024-04-17T12:00:00.000000Z",
        "end_time": "2024-04-25T12:00:00.000000Z",
        "selectors": [
            {
                "resource": "krn:ad:pcp_01/casing_pressure",
            }
        ],
        "agg": "mean",
        "fill": "none",
        "group_by_selector": True,
        "time_bucket": "24h",
        "time_shift": "1h",
    }
)

# Convert the response into a Pandas DataFrame
df = response.to_df()

# Print the result
print(df)

The response will look something like this;

API Client (Python) Example Response
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
    payload                       resource                 timestamp
0  55.816897  krn:ad:pcp_01/casing_pressure 2024-04-17 01:00:00+00:00
1  55.802644  krn:ad:pcp_01/casing_pressure 2024-04-18 01:00:00+00:00
2  55.652730  krn:ad:pcp_01/casing_pressure 2024-04-19 01:00:00+00:00
3  55.672962  krn:ad:pcp_01/casing_pressure 2024-04-20 01:00:00+00:00
4  55.796998  krn:ad:pcp_01/casing_pressure 2024-04-21 01:00:00+00:00
5  55.754981  krn:ad:pcp_01/casing_pressure 2024-04-22 01:00:00+00:00
6  55.716939  krn:ad:pcp_01/casing_pressure 2024-04-23 01:00:00+00:00
7  55.938636  krn:ad:pcp_01/casing_pressure 2024-04-24 01:00:00+00:00
8  59.941887  krn:ad:pcp_01/casing_pressure 2024-04-25 01:00:00+00:00
