Deploy Kelvin SmartApps™

This page guides you through the process of deploying your Kelvin SmartApp™ to monitor and optimize your assets.

Deploy

Before proceeding to add Assets to Kelvin SmartApp™ in the Kelvin UI (which deploys a Workload to a Cluster in the background), make sure you have an active Cluster on your Instance and the default Cluster setting for Kelvin SmartApps™ deployment is set.

You can now navigate to the Kelvin UI and deploy your Kelvin SmartApp™ to your assets.

Open your browser and navigate to https://<instance>.kelvin.ai. Login with your credentials and you will be presented with the Kelvin UI.

Go to SmartApps™ and select the Event Detection Kelvin SmartApp™ you just uploaded.

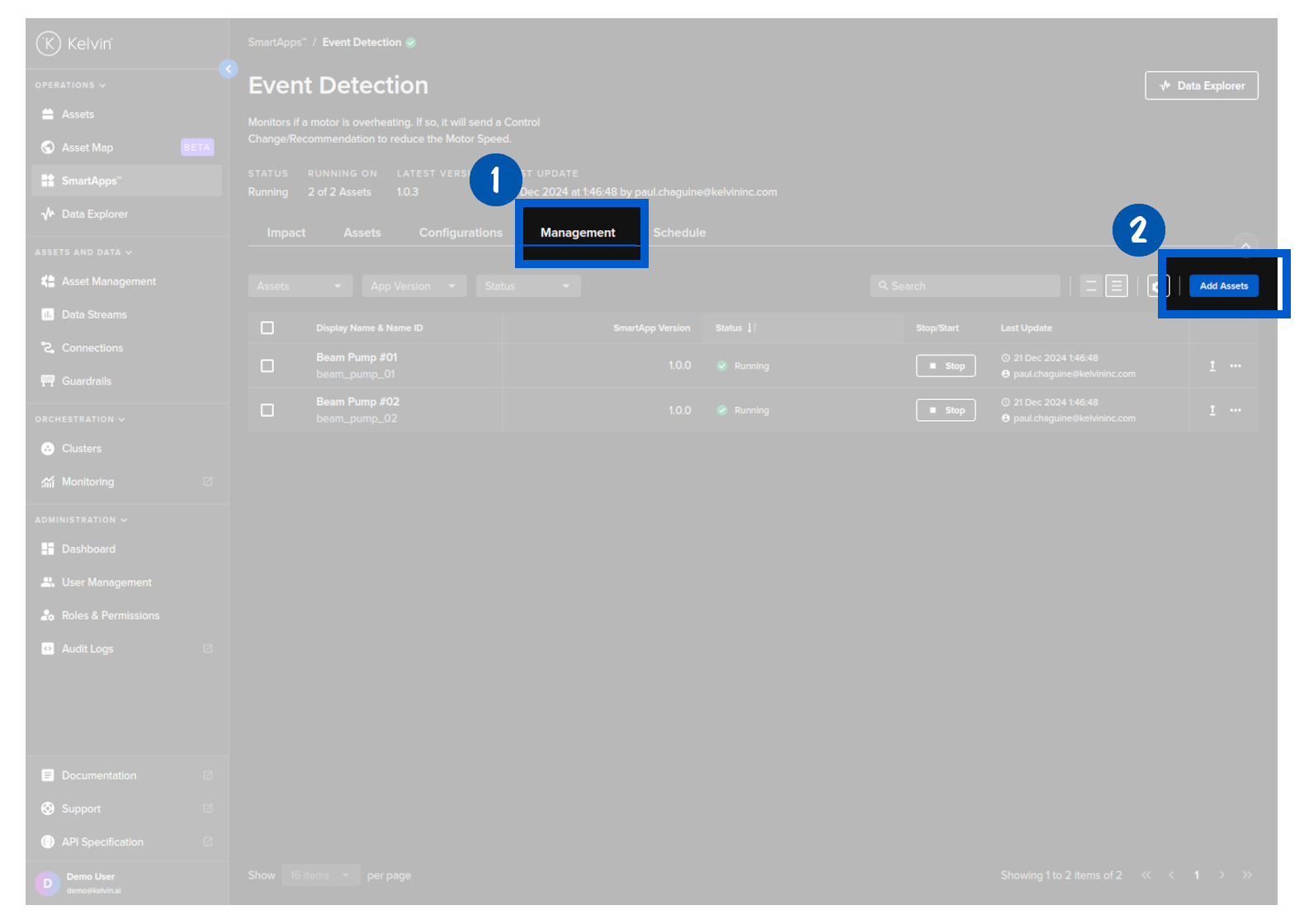

The next step is to deploy the Kelvin SmartApp™ to assets. Click on the Management tab an then on the Add Assets button.

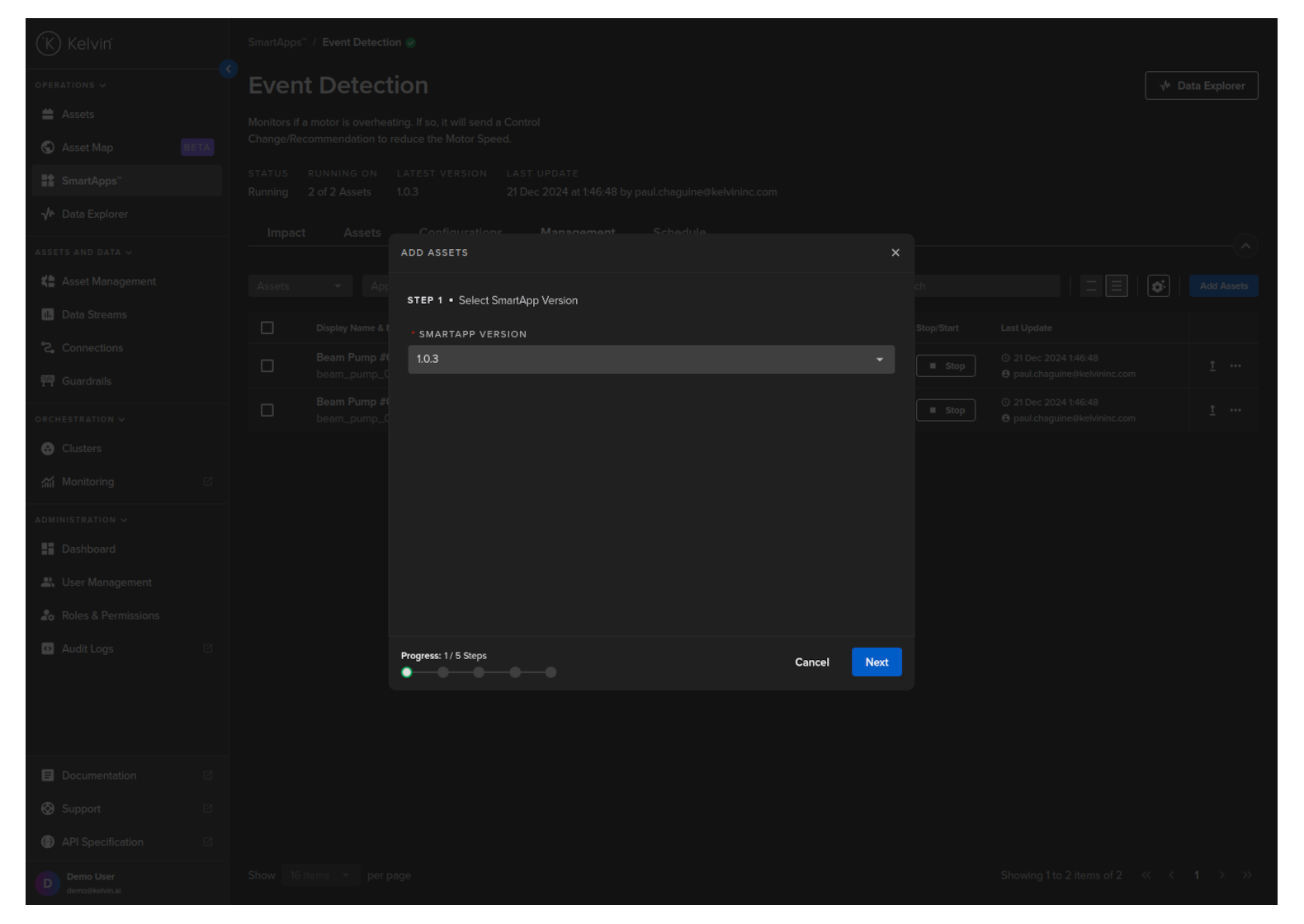

Choose the Kelvin SmartApp™ latest version.

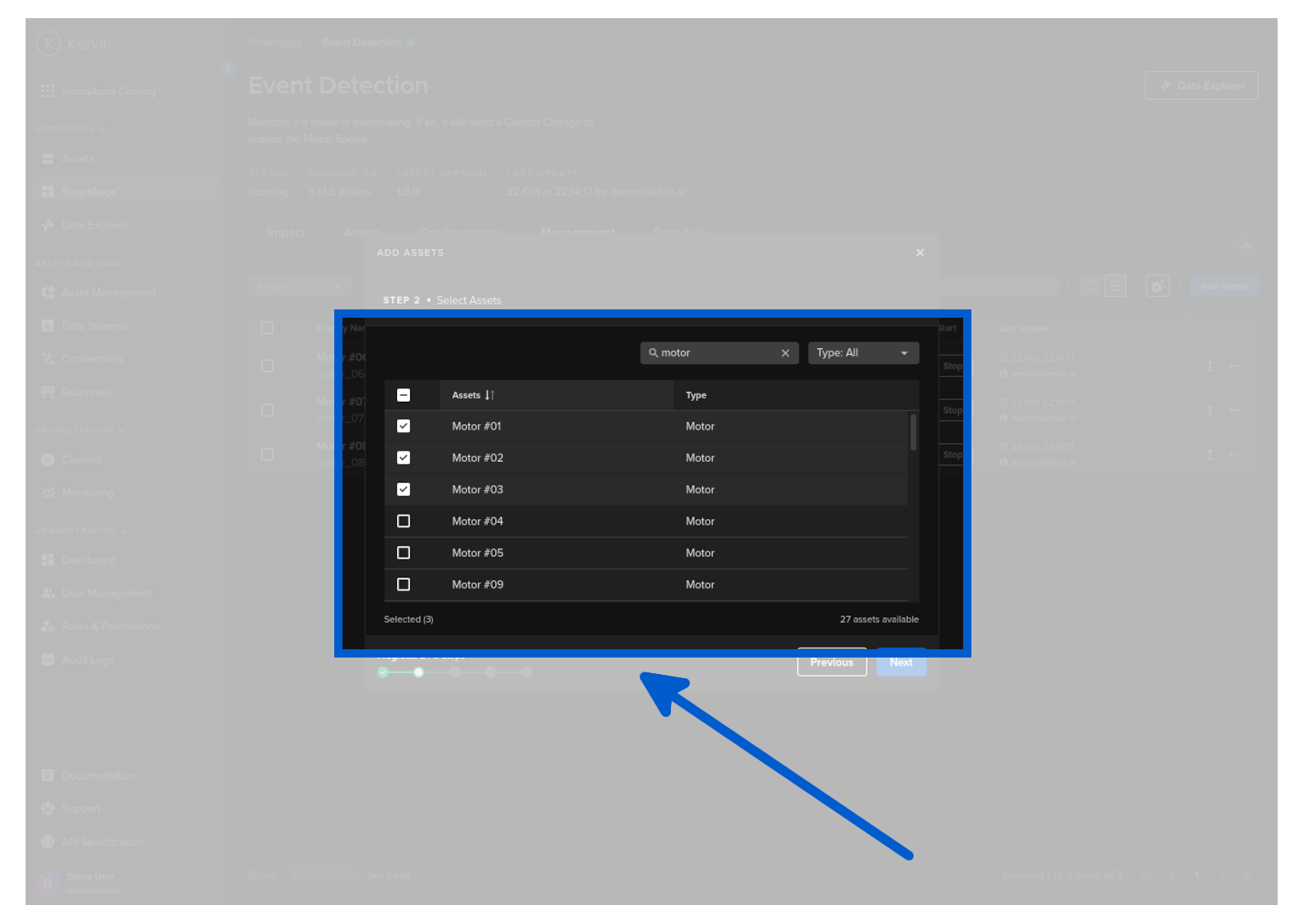

Select the assets you want to deploy to the Kelvin SmartApp™. In this case we will select the assets with the name Motor #N.

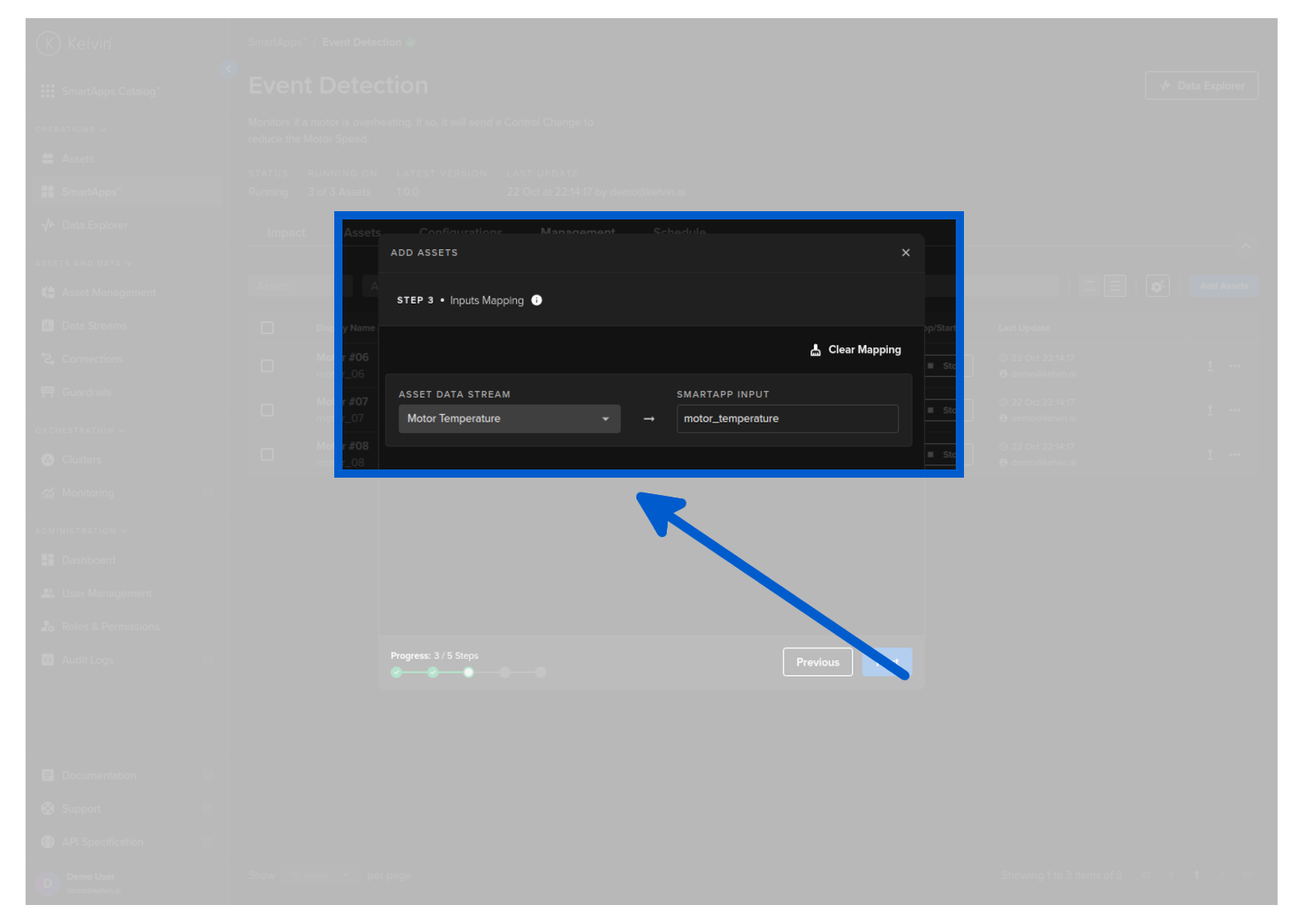

In the next step, we'll map the asset data streams to the Kelvin SmartApp™ inputs. This entails channeling the live data from the assets directly into the application.

Kelvin will oversee the data routing to the Kelvin SmartApp™; your role is to ensure the correct data stream is selected to feed into the Kelvin SmartApp™ inputs.

For the Event Detection Kelvin SmartApp™, we have a singular input named motor_temperature. Thus, we'll be selecting the Motor Temperature data stream from the asset.

We also need to map the Kelvin SmartApp™ outputs to the asset's data streams. This entails that any data generated by the Kelvin SmartApp™ is routed back to the asset.

For the Event Detection Kelvin SmartApp™, we have a singular output named motor_speed_set_point. Thus, we'll be selecting the Motor Speed Set Point data stream from the asset. Every time the Kelvin SmartApp™ generates a new motor_speed_set_point output, it will be routed back to the asset as a control change.

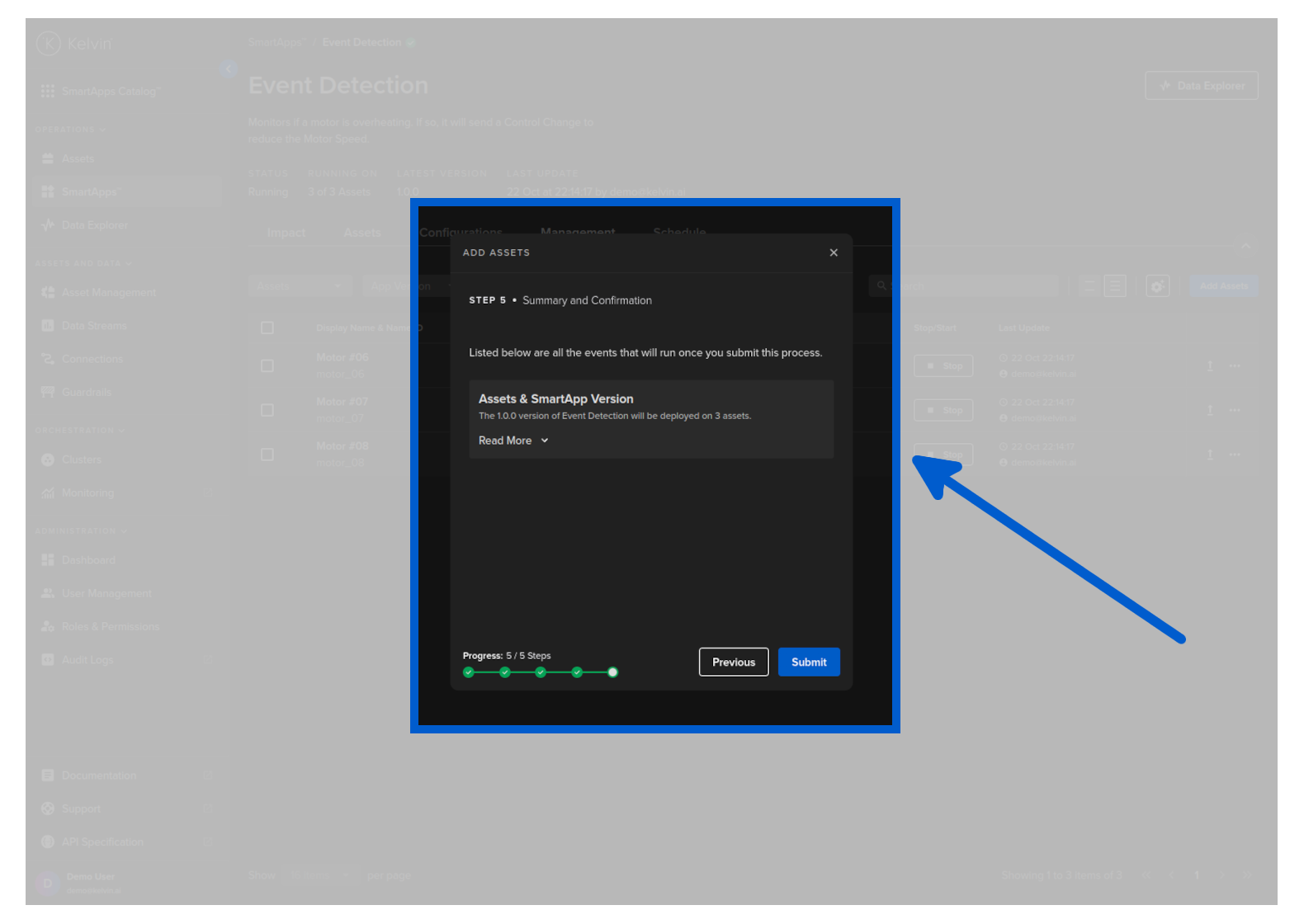

And the final step is to click on the Submit button to deploy the Kelvin SmartApp™ to the assets.

You can now observe the Kelvin SmartApp™ being deployed to the assets. And in a couple of seconds the Kelvin SmartApp™ will be running for the assets.

Congratulations! You've successfully deployed your Kelvin SmartApp™ to your assets.

Next Step

Now that you have your first Kelvin SmartApp™ deployed to your assets, you can start monitoring the data, logs and telemetry of your Kelvin SmartApp™.
