Windows

Pre-requisites and requirements¶

The KICS command line tool has the following requirements:

Docker 19.03.5+
Python 3.7+ (64bit)
Windows 10 Pro (64bit)

Recommendation

It is recommended to use the PowerShell as command line shell.

If your machine already meets these requirements, you may skip the next steps.

Install Docker¶

Kelvin SDK, as part of KICS, leverages Docker to package and run applications as containers.
Kelvin SDK requires Docker 19.03+.

Info

If you have Docker working on your machine, skip to Installing Python

The following features and requirements must be enabled in order for docker to work on your machine in order.

Hardware Virtualization supported by CPU and enabled in BIOS/UEFI. See Enable hardware virtualization
Windows Subsystem for Linux 2 (WSL2). See WSL2 Installation
Windows features enabled. See Activate Windows Features
- Hyper-v
- Virtual Machine Platform
- Windows Subsystem for Linux

The following steps will show how to install docker and enable the required features.

Install Docker Desktop¶

To install Docker on your local machine, download Docker Desktop:

Install Docker on Windows.

Install Docker using the installation defaults, as shown here:

images/docker_installing_configuration.png

Enabled Hardware virtualization¶

Your machine's CPU must support hardware virtualization in order to run docker.

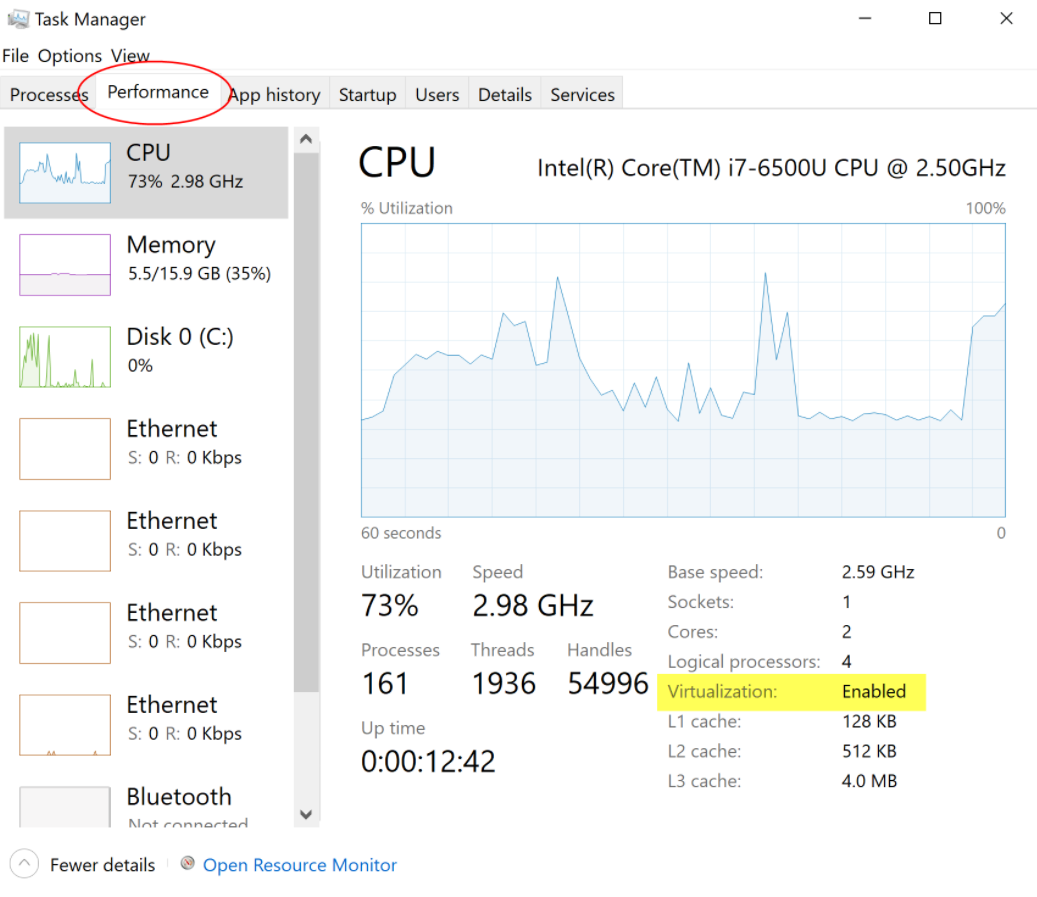

Check if it's enabled on the tab Performance on Windows task manager:

images/task_manager_virtualization_enabled.png

In some cases, the hardware virtualization feature is disabled by default. It is required to enabled through BIOS/UEFI. Check the following link to see how to enable hardware virtualization.

How to enable Virtualization VT on Windows-10.

Warning

The BIOS/UEFI layout is different for each motherboard and CPU manufacturer. Check your motherboard's documentation to see how to enable hardware virtualization

WSL2 Installation/Update¶

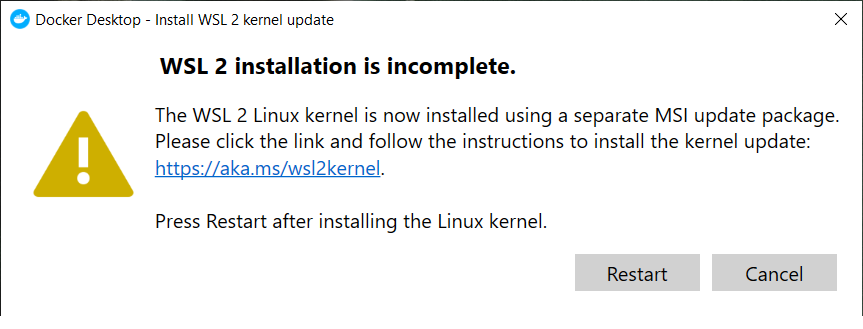

The WSL2 installation complete error when starting docker is common. Docker requires WSl 2 Linux Kernel to be updated.

images/docker_wsl2_error.png

Download and install WSL2 Linux kernel update package for x64 machines. After, just press restart on the message box as shown above.
Set WSL to version 2 by running the following command:

powershell

$ wsl --set-default-version 2

For more information on key differences with WSL 2 please visit https://aka.ms/wsl2

Windows Subsystem for Linux Installation Guide for Windows 10

More info: Windows Subsystem for Linux Installation Guide for Windows 10.

Activate Windows features¶

In order to docker to run the following features must be enabled: - Hyper-v - Virtual Machine Platform - Windows Subsystem for Linux

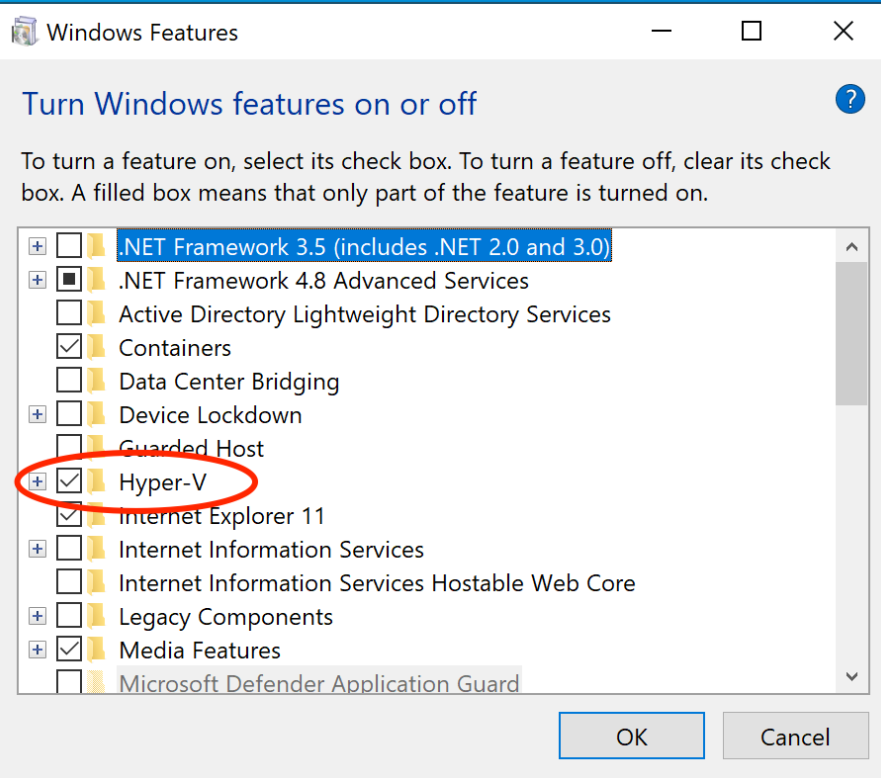

Go to Windows start menu and search "Turn Windows features on or off". Enable the highlighted features.

images/activate_windows_features.png

Test docker installation¶

Finally, run the following command to test if docker is running, by opening in browser localhost/tutorial:

powershell

docker run -d -p 80:80 docker/getting-started

Troubleshooting

Check docker installation troubleshooting for more errors not described above Docker Troubleshooting or Virtualization.

Installing Python¶

Kelvin SDK requires Python 3.7+ (Python 3.9 is not yet recommended as many third party libraries have not yet been ported for this version of Python).

Make sure to install a 64-bit version of Python

For more stability and performance, make sure to install a 64-bit version of Python.

To download Python on your local machine:

Download Python

Once the download is complete, run the installer.

images/Install_Windows_Default.png

Select the "Add Python 3.7 to Path" option if there are no other versions of python installed.

Warning

If you have PowerShell open, please restart it so that the Windows PATHs are reloaded.

Update pip with the latest version¶

Execute the commands for rest of the installation steps.

powershell

python -m pip install pip -U

Virtual Environment¶

It is strongly recommended to use a virtual environment for each project. This will avoid dependencies issues and incompatibilities between installed python packages. Run the following commands to install virtualenv, create a new virtualenv and activate it

Install virtualenv¶

powershell

pip3 install virtualenv

Create a virtual environment with virtualenv¶

Create a virtualenv name venv

powershell

virtualenv venv -p python3.7

Activate the virtual environment¶

Once created, activate the virtual environment. While the virtual environment is active, installed dependencies become isolated from other projects/system.

powershell

.\venv\Scripts\Activate.PS1

Activate.PS1 cannot be loaded because running scripts is disabled on this system.

To fix this issue, open PowerShell with Administrator permissions and run the following command:

Set-ExecutionPolicy Unrestricted

and, for terminal:

bash/terminal

.\venv\Scripts\activate.bat

Check virtualenv installed dependencies

powershell

(venv)$ pip3 list

Package    Version
---------- -------
pip        21.2.4
setuptools 50.3.2
wheel      0.35.1

Install KICS¶

To install the KICS package:

powershell

(venv)$ pip3 install kics==3.8.*

Check the KICS version

powershell

(venv)$ kics --version

KICS version: 3.8.0

Component versions:

    kelvin-sdk  6.2.0
