Importing Assets in Bulk¶

On this page you will learn how to use the Kelvin Control Manager UI to import a list of Assets from a CSV file. This makes it easy for you to important many Assets at one time from an Excel sheet.

What is Assets ?¶

Kelvin Assets are explained in detail in the Overview page. Read more at Managing Assets and Asset Types.

What is Importing Assets in Bulk ?¶

In the documentation you have learnt how to use the Kelvin Control Manager UI to create Assets. If you have dozens, hundreds or thousands of Assets this is very time consuming.

Instead of individually entering the Assets, you can create a Microsoft Excel sheet or Google Sheet with a full list of all your Assets. Once your sheet is ready, you can export this sheet to a CSV file. This CSV file can then be uploaded to the Kelvin Control Manager UI which will read and automatically generate all the Assets for you. Easy !

Info

When you create the sheet, be careful with your headers and their names. The Kelvin Control Manager UI will use this header to read all the Assets in your list.

Creating the CSV File¶

Download the Assets CSV Template¶

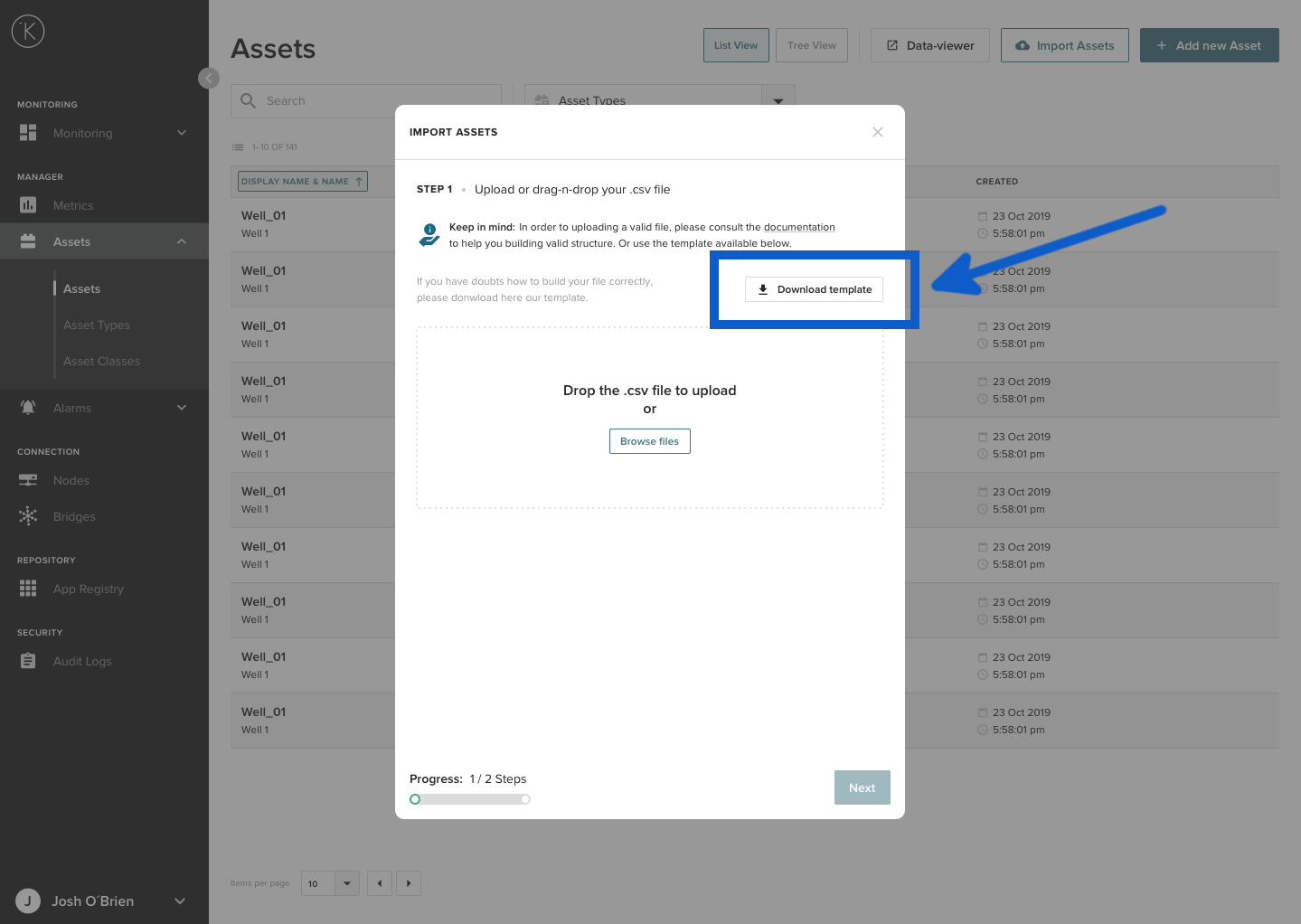

You can download a template CSV file from the Import Assets in Step 1.

Creating in Microsoft Excel¶

Here you will learn how to create your excel file in the right format and save it to a CSV file.

To start, open an excel book with a blank sheet

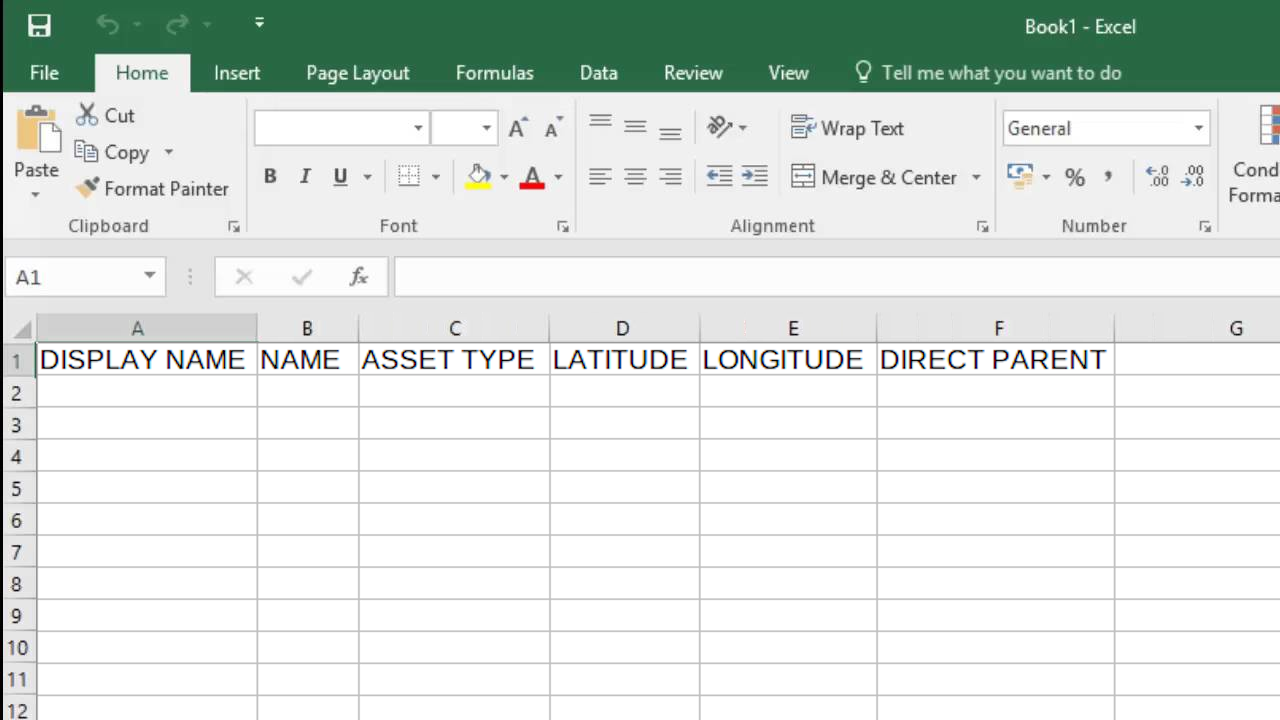

Now in the first row you have to create the headers. Each header will represent one of the input values that the Kelvin Control Manager UI import script will use.

Now add all your Assets. Each row below the header (row 1) represents one Asset to be imported. Add as many Assets as you need

Info

The maximum number of Assets (rows) per CSV file is 20,000. If you have more than 20,000 Assets to import, then split them up into multiple CSV files, each with a maximum of 20,000 Assets (rows).

When you have finished your Asset list, you can export it to a CSV file. Make sure the Excel sheet you are looking at on your screen is the sheet you want to export. Excel will only export the active sheet to the CSV file.

Click on Save As

In Save as Type, select CSV (Comma delimited) (*.csv), select location where you want to save. Make sure it is UTF-8 format by clicking on Tools.

And make sure Unicode (UTF-8) is selected and click OK.

Then you can click Save. Now you can import this file into the Kelvin Control Manager UI.

Creating in Google Sheets¶

Here you will learn how to create your spreadsheet file in the right format and save it to a CSV file.

To start, open an Google sheets book with a blank sheet

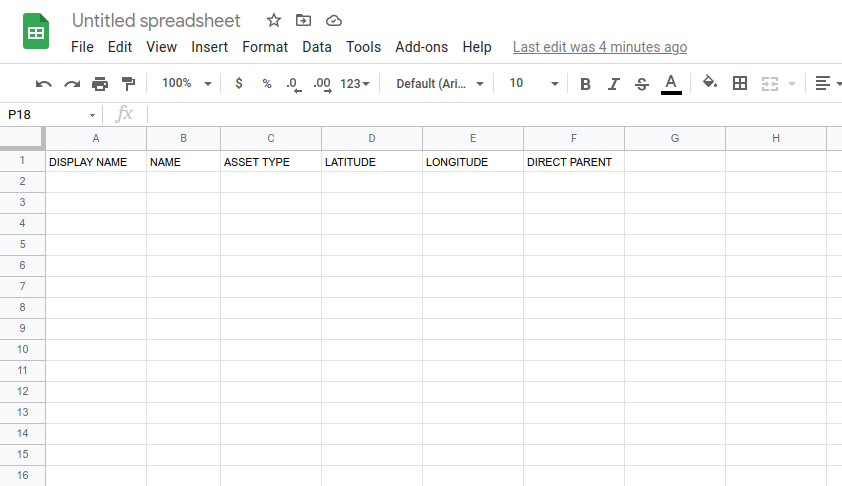

Now in the first row you have to create the headers. Each header will represent one of the input values that the Kelvin Control Manager UI import script will use.

Now add all your Assets. Each row below the header (row 1) represents one Asset to be imported. Add as many Assets as you need.

Info

The maximum number of Assets (rows) per CSV file is 20,000. If you have more than 20,000 Assets to import, then split them up into multiple CSV files, each with a maximum of 20,000 Assets (rows).

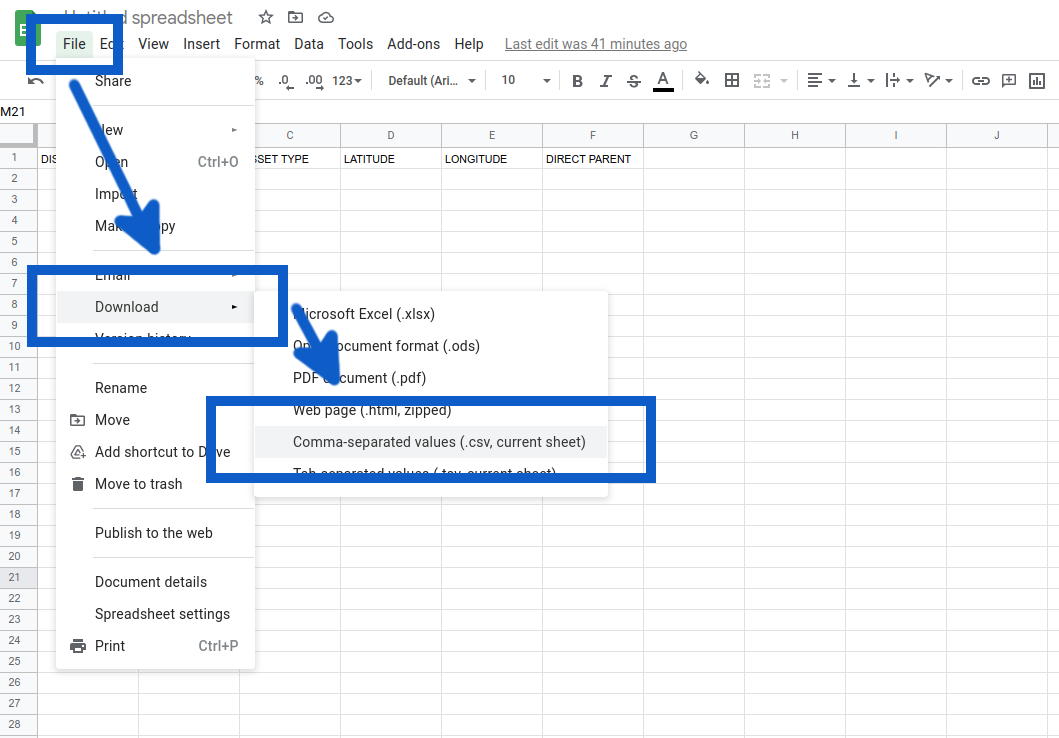

Click on File -> Download -> Comma-separated values (.csv, current sheet)

Info

Google Sheets will automatically format it at UTF-8. You don't have to do anything special like in Microsoft Excel.

Now you can import this file into the Kelvin Control Manager UI.

Importing Assets from a CSV File¶

You can use the file generated to create many Assets at one time.

Requirements¶

Asset Type¶

All Asset Types you have listed in your CSV file must already exist in the Kelvin Control Manager UI. Make sure you have created all Asset Types before starting the bulk import.

Info

Make sure you have typed the Asset Types exactly the same as in the Kelvin Control Manager UI.

CSV File¶

You must have the CSV file ready on your PC with the right header formats. If you are not sure, check out the creating the CSV file documentation above first.

Importing the Assets from the CSV File¶

Step 0 : Starting the Process¶

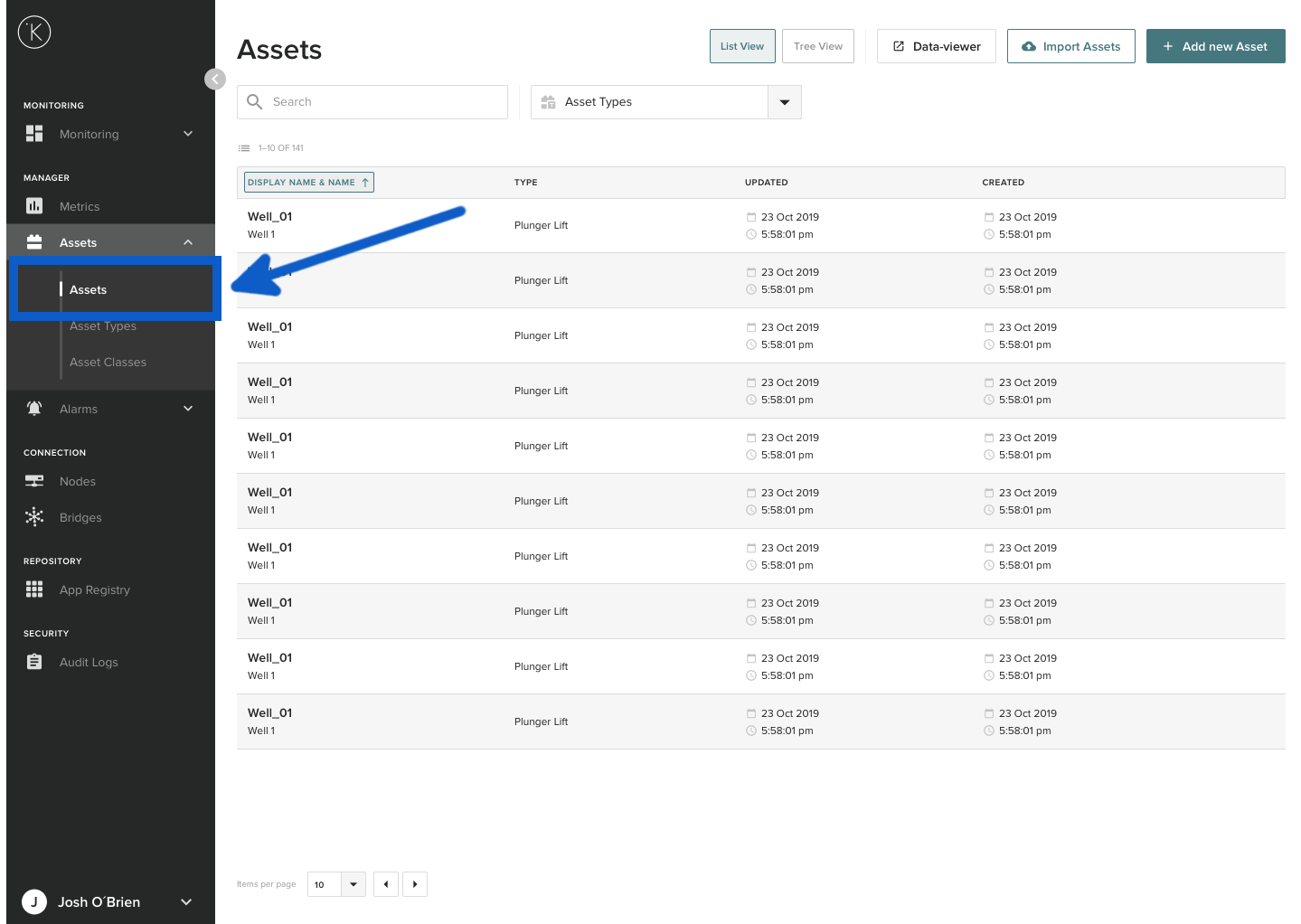

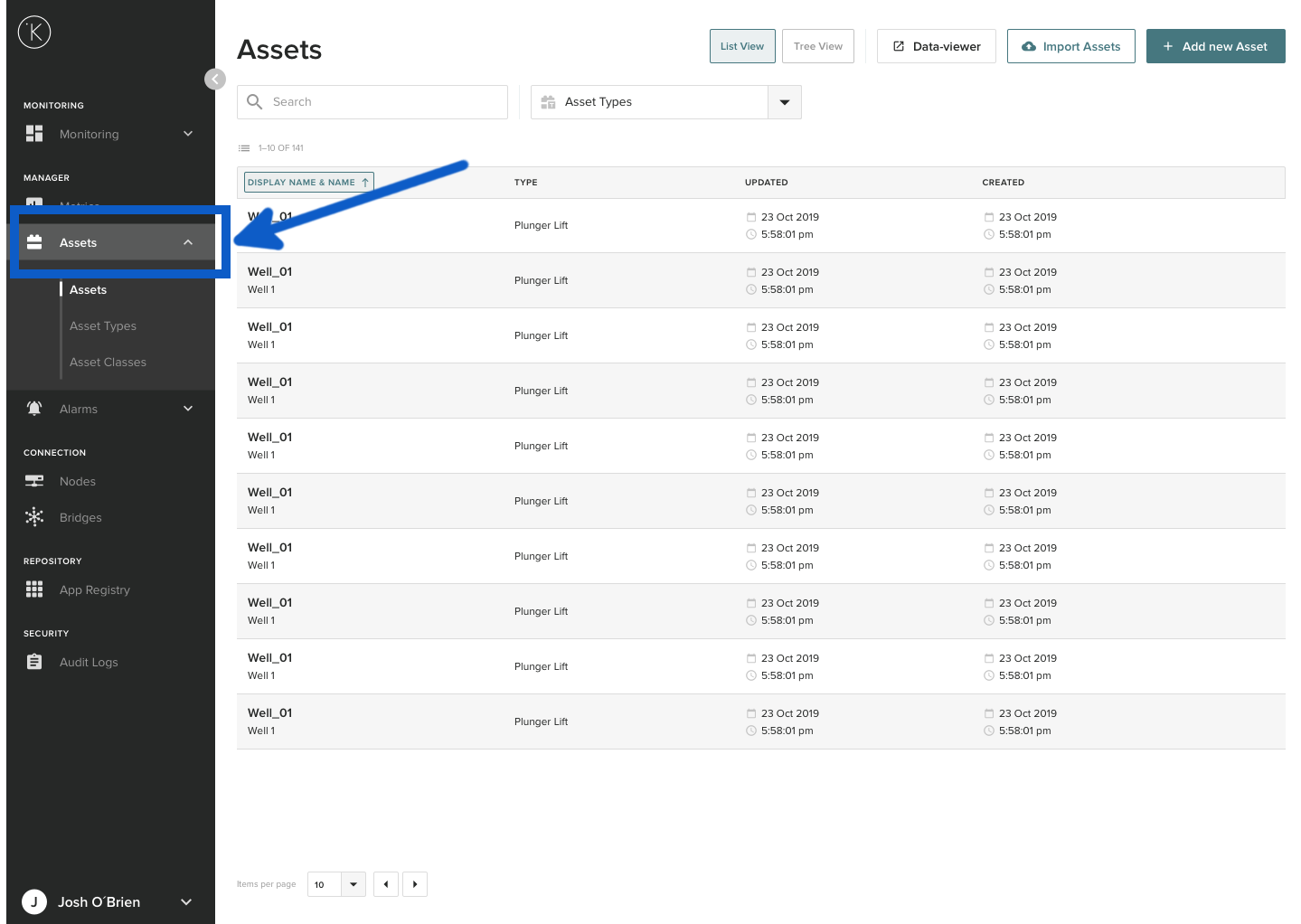

Go to the overview page on the Kelvin Control Manager UI. On the left hand side menu, select Assets.

Make sure that Assets is highlighted and not Asset Types or Asset Classes.

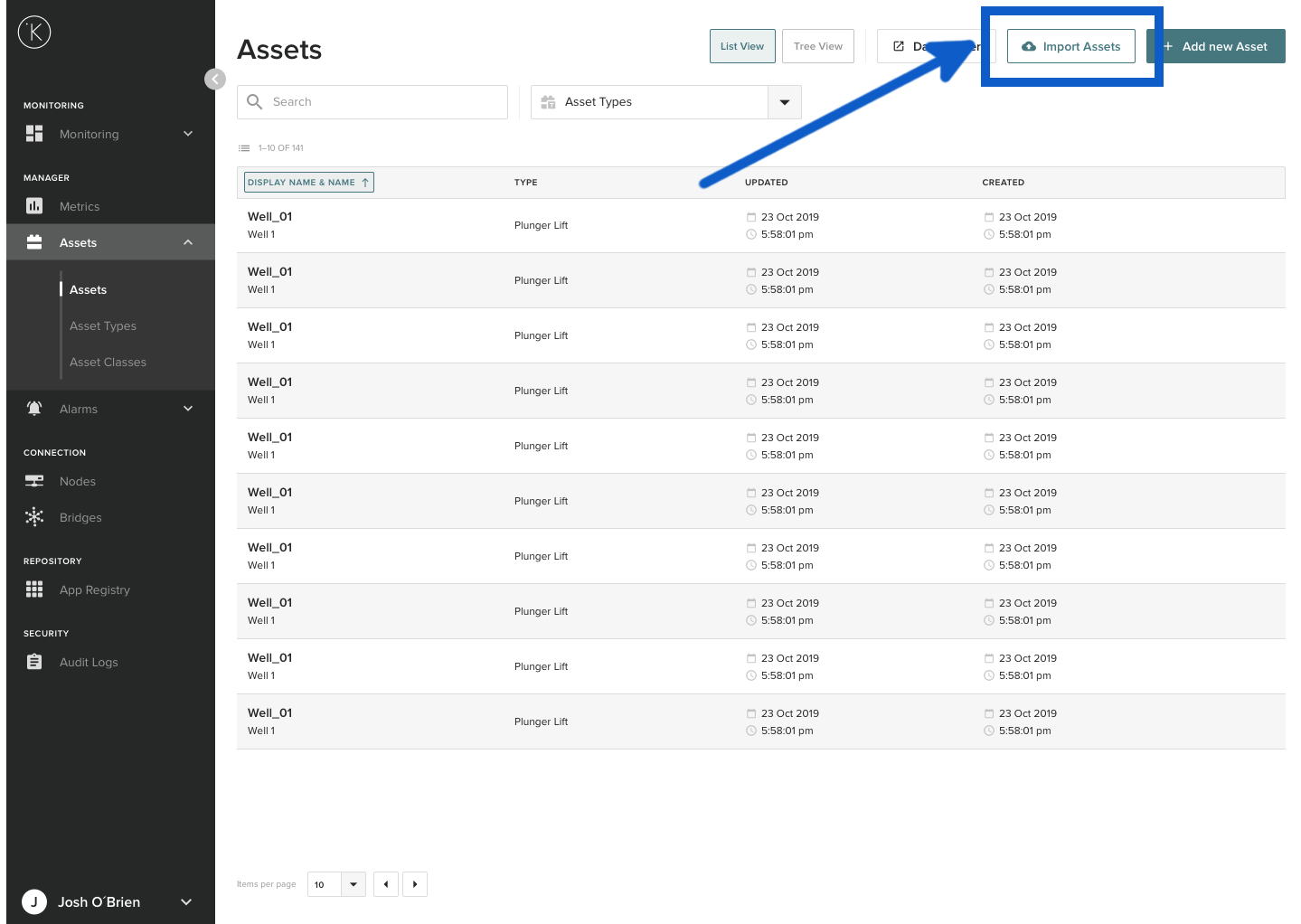

Click on the Import Assets button.

Step 1 : Upload or drag-n-drop your .csv file¶

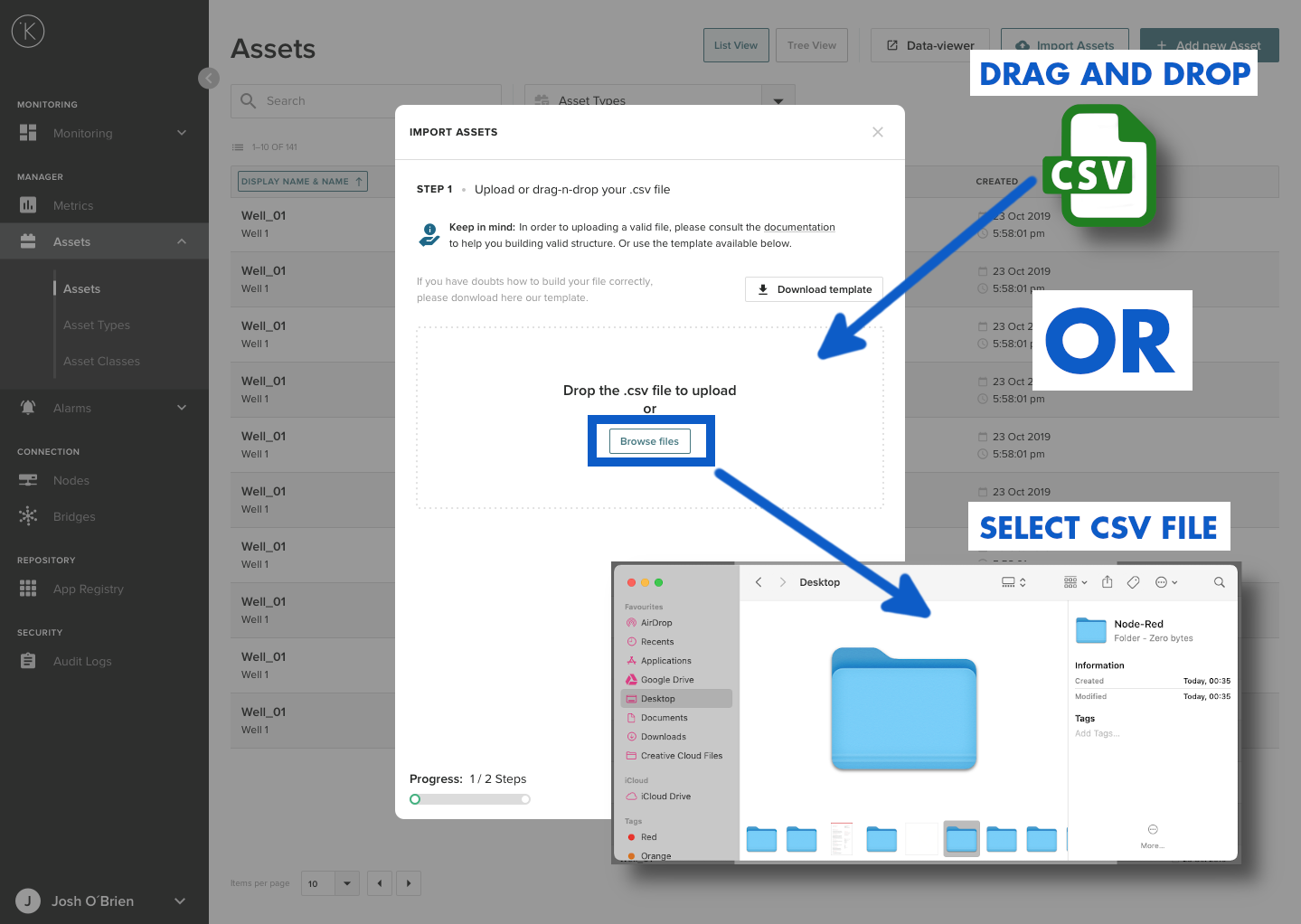

You can now either click on Browse Files to select your CSV file or just drag and drop the CSV file inside the dotted line rectangle.

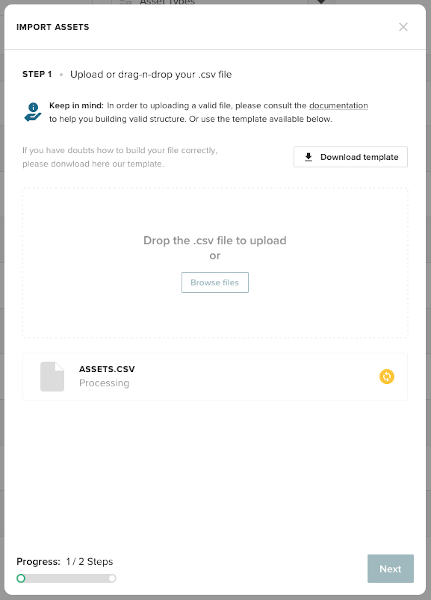

The CSV file will then be checked to ensure it is a valid file and has the correct formats.

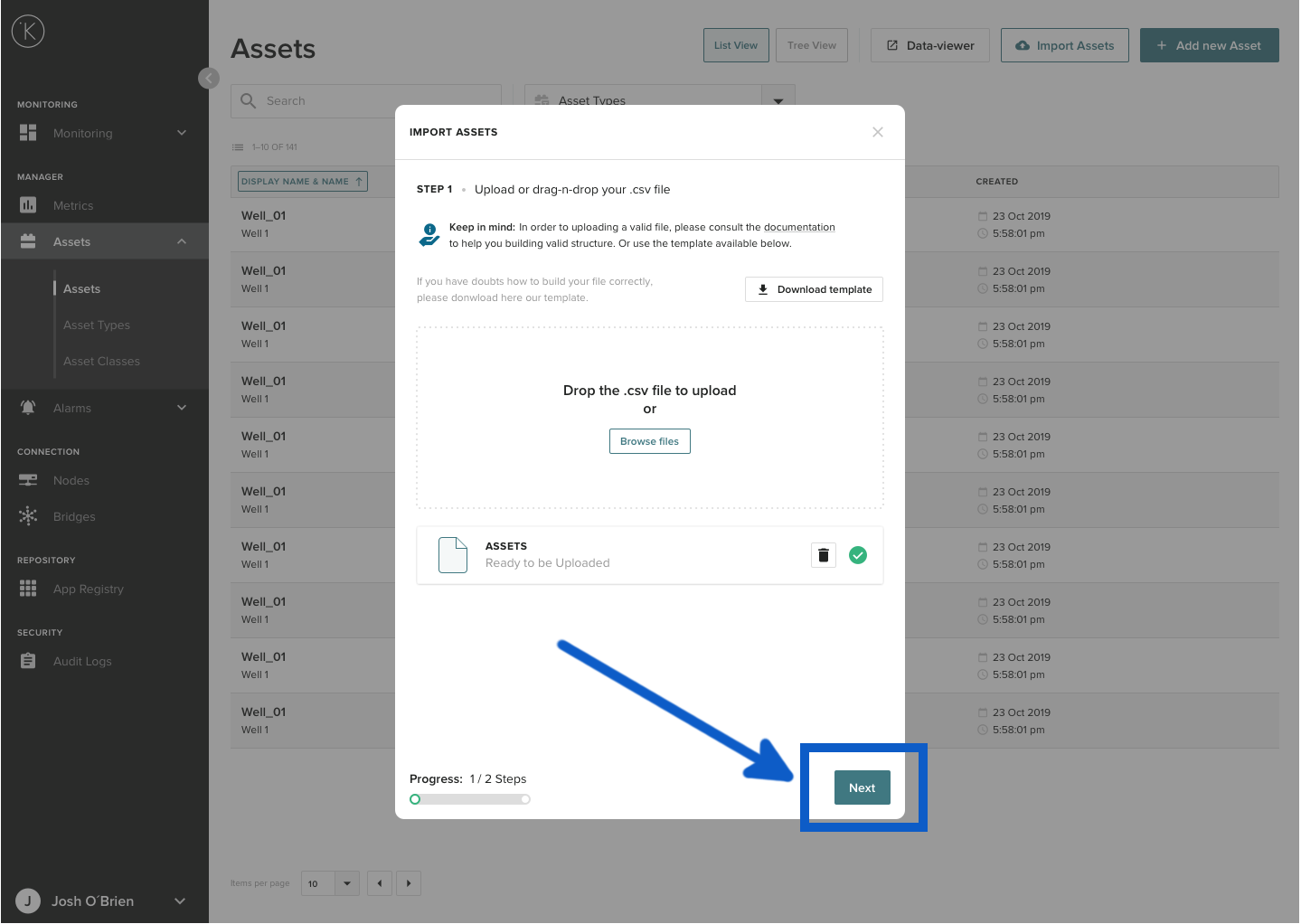

When it is ready to upload simply click the Next button.

Step 2 : Validation & Import¶

The file will then be uploaded and validated. You will then see a List View or Tree View of all the Assets to import. Check that the Kelvin Control Manager UI has properly read your CSV file before proceeding.

Info

If there is any problems with the CSV file, the Kelvin Control Manager UI will give you detailed instructions. See below at the troubleshooting section how you can solve any problems.

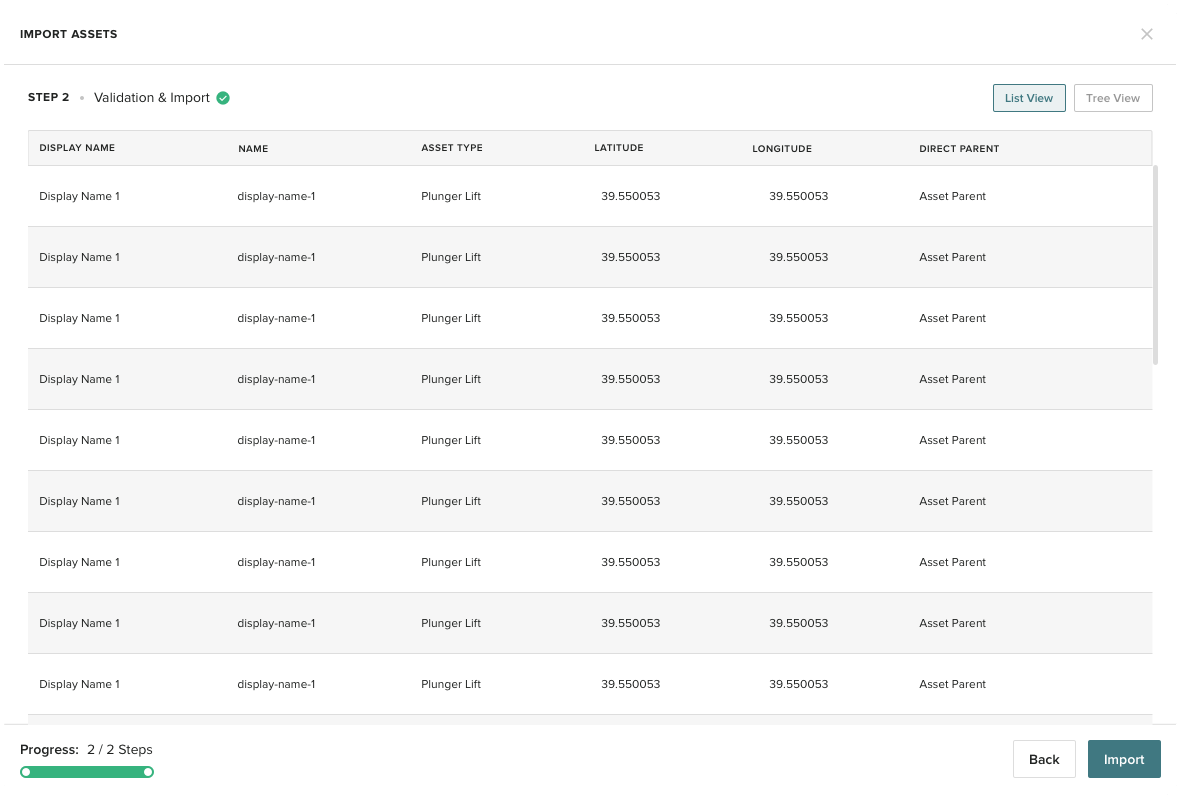

List View of Assets in CSV File before Import

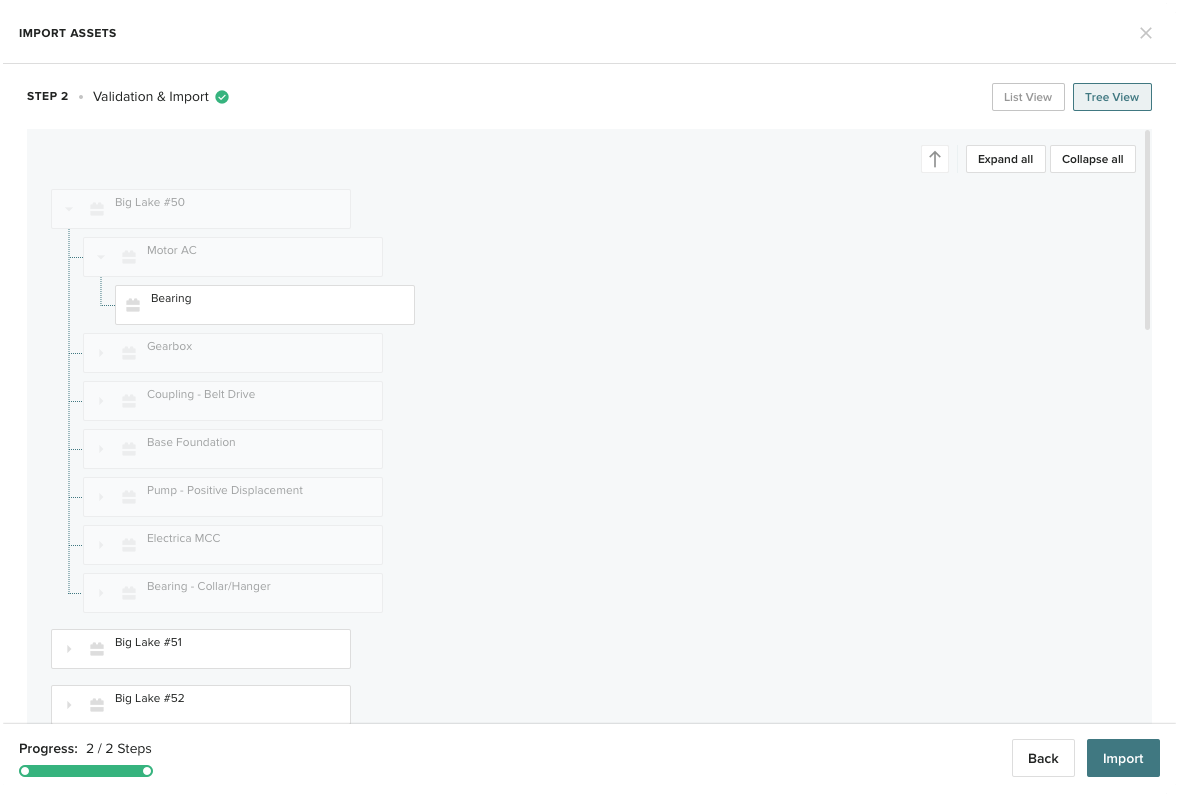

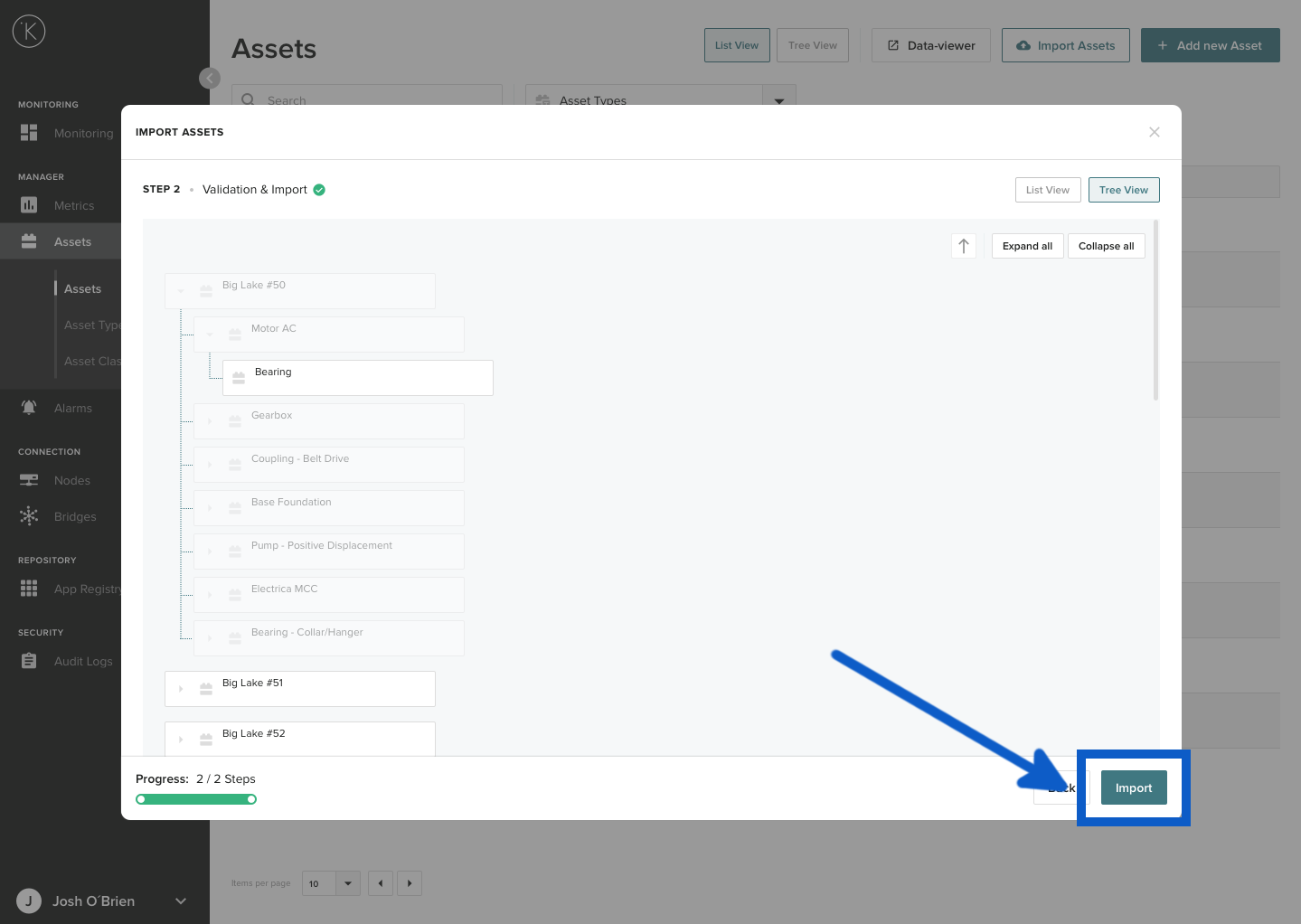

Tree View of Assets in CSV File before Import

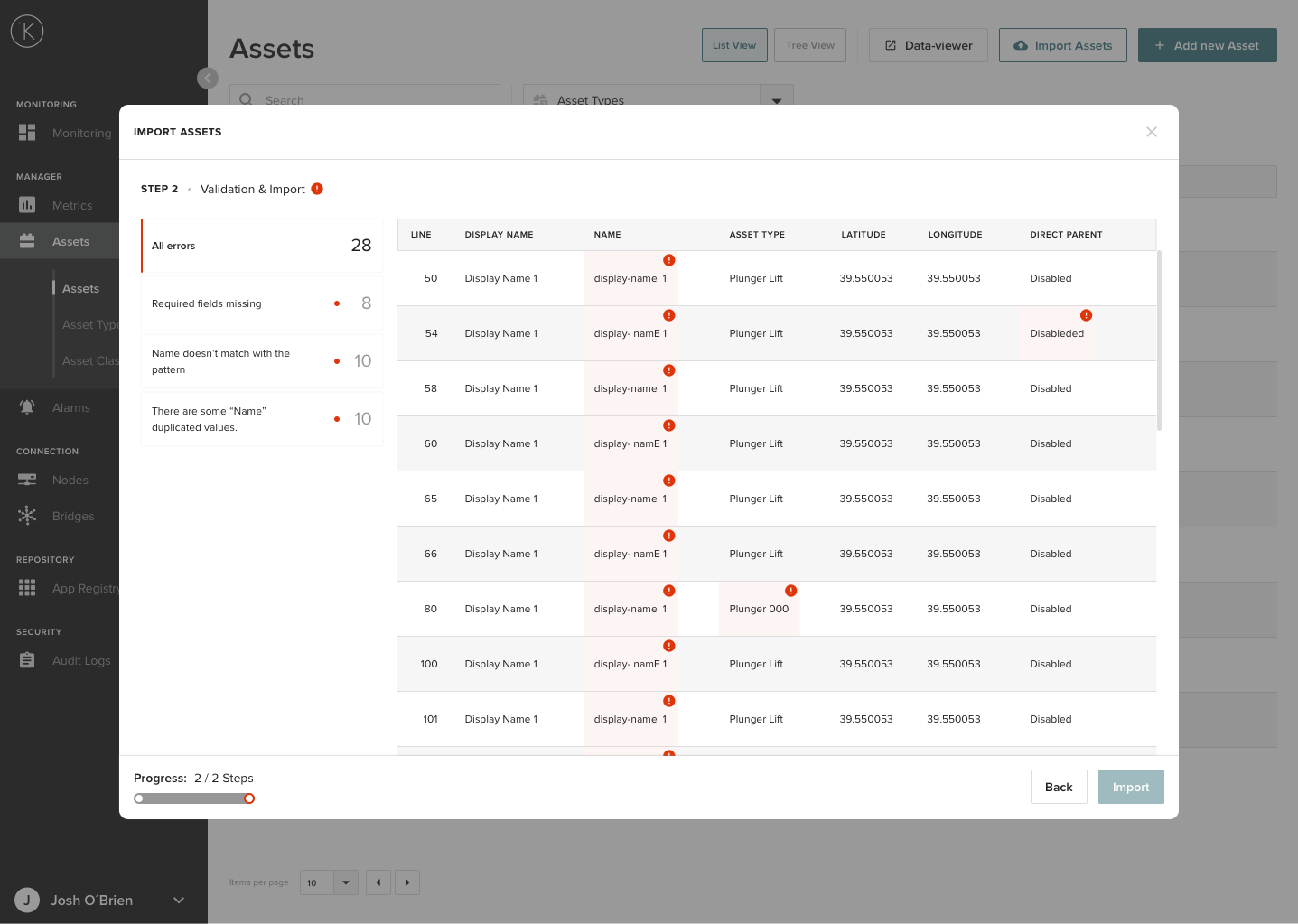

If you have any errors, the screen will look like the image below. Before you can proceed to import, you will need to solve all issues that are identified.

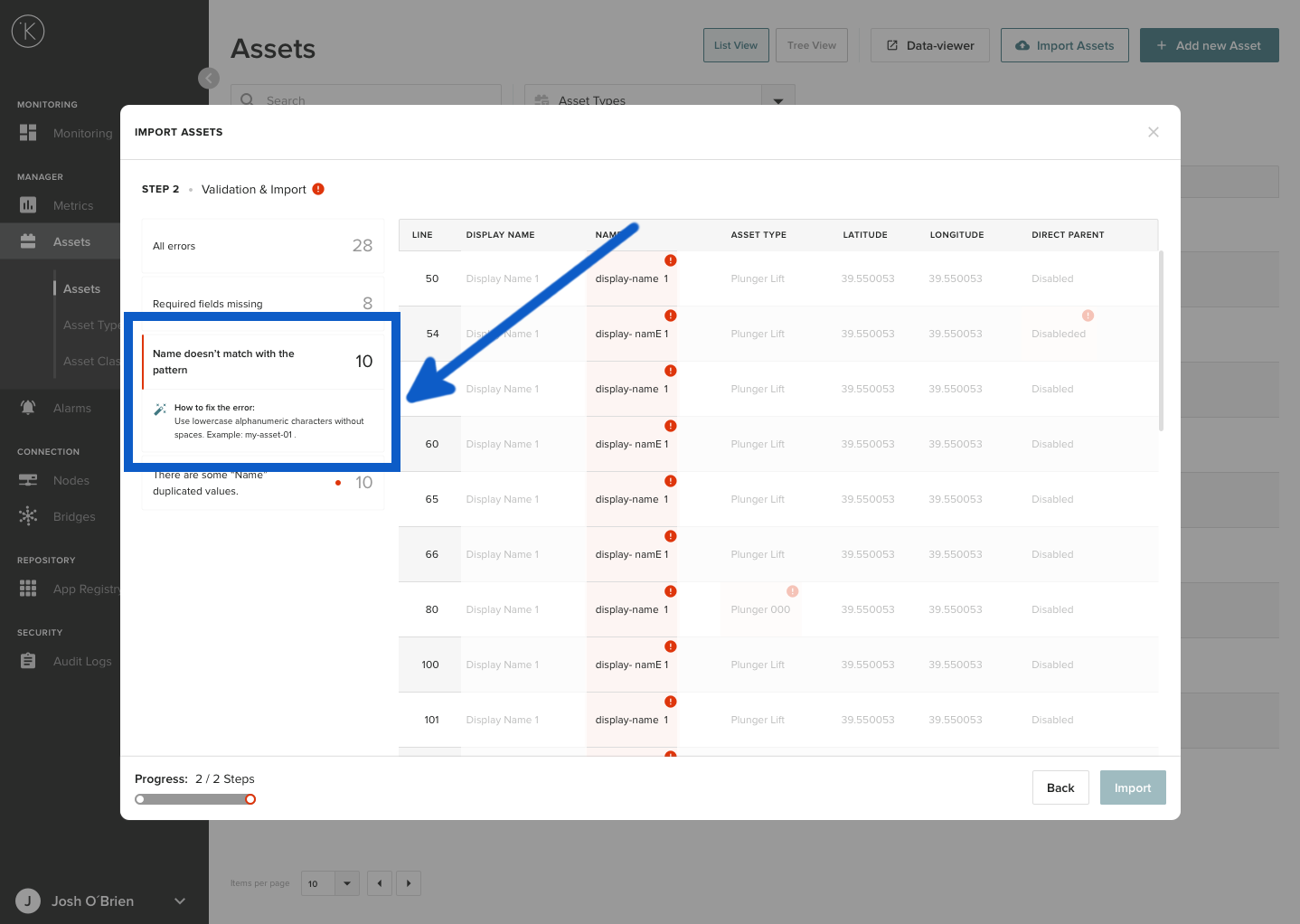

You can click on one of the error reports on the left hand side to see more details about the error.

Info

To see a full list of possible errors and solutions, go to the Troubleshooting section at the bottom.

Before you can proceed to import, you will need to solve any issues that are identified. When you have no errors and you are satisfied with the list of Assets to import and their tree structure, then click on Import to continue.

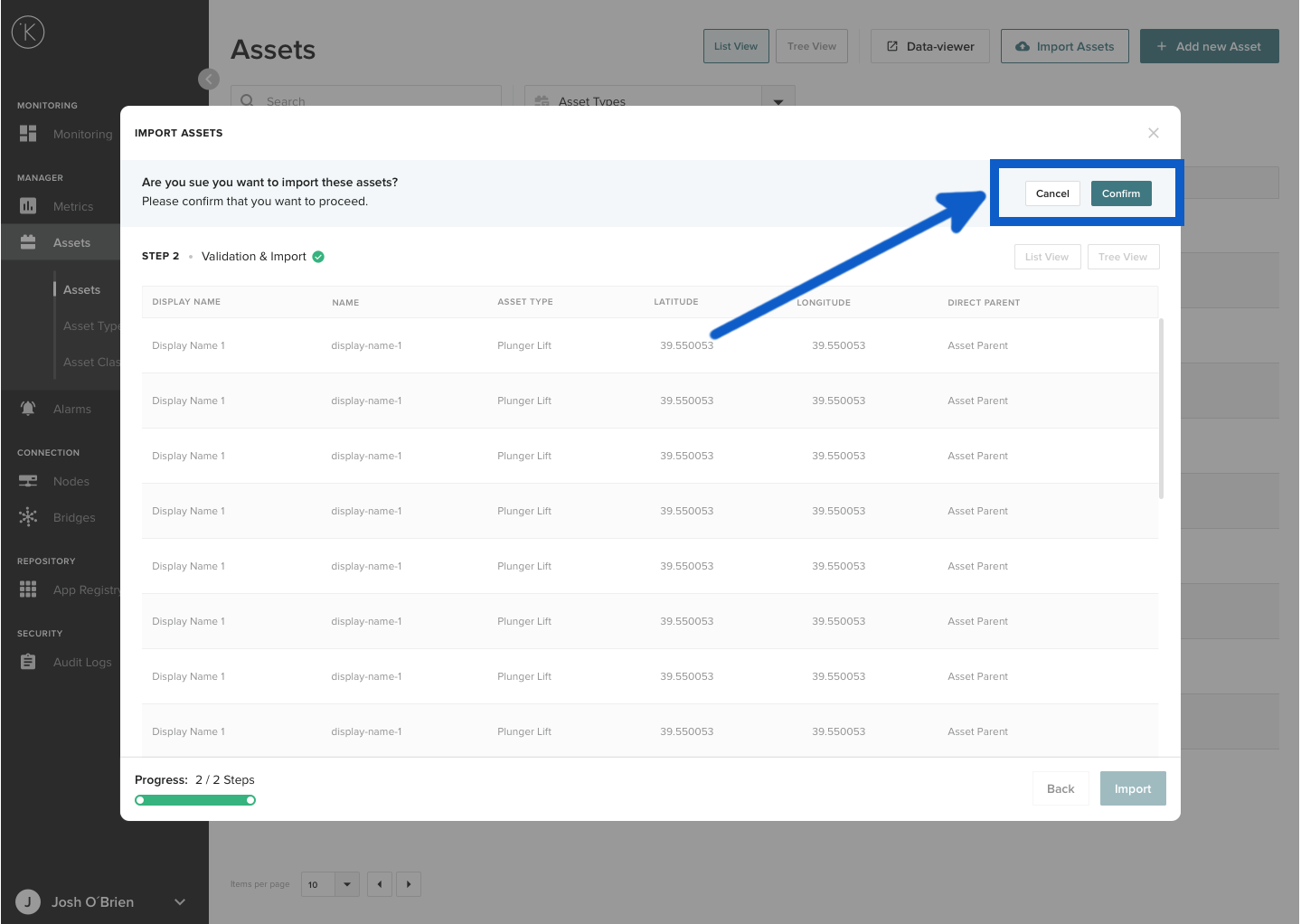

You will then be asked to confirm that you want to import (in case you accidentally clicked the button too fast, it happens to the best of us). Click Confirm t**o proceed, or click **Cancel to go back to the List View.

Info

If you select cancel here you will not lose your work. You will remain at Step 2. You can try and click import again.

Danger

If you click on the close button (x) here at Step 2, you will lose all your work for the import Assets. There will be no warning.

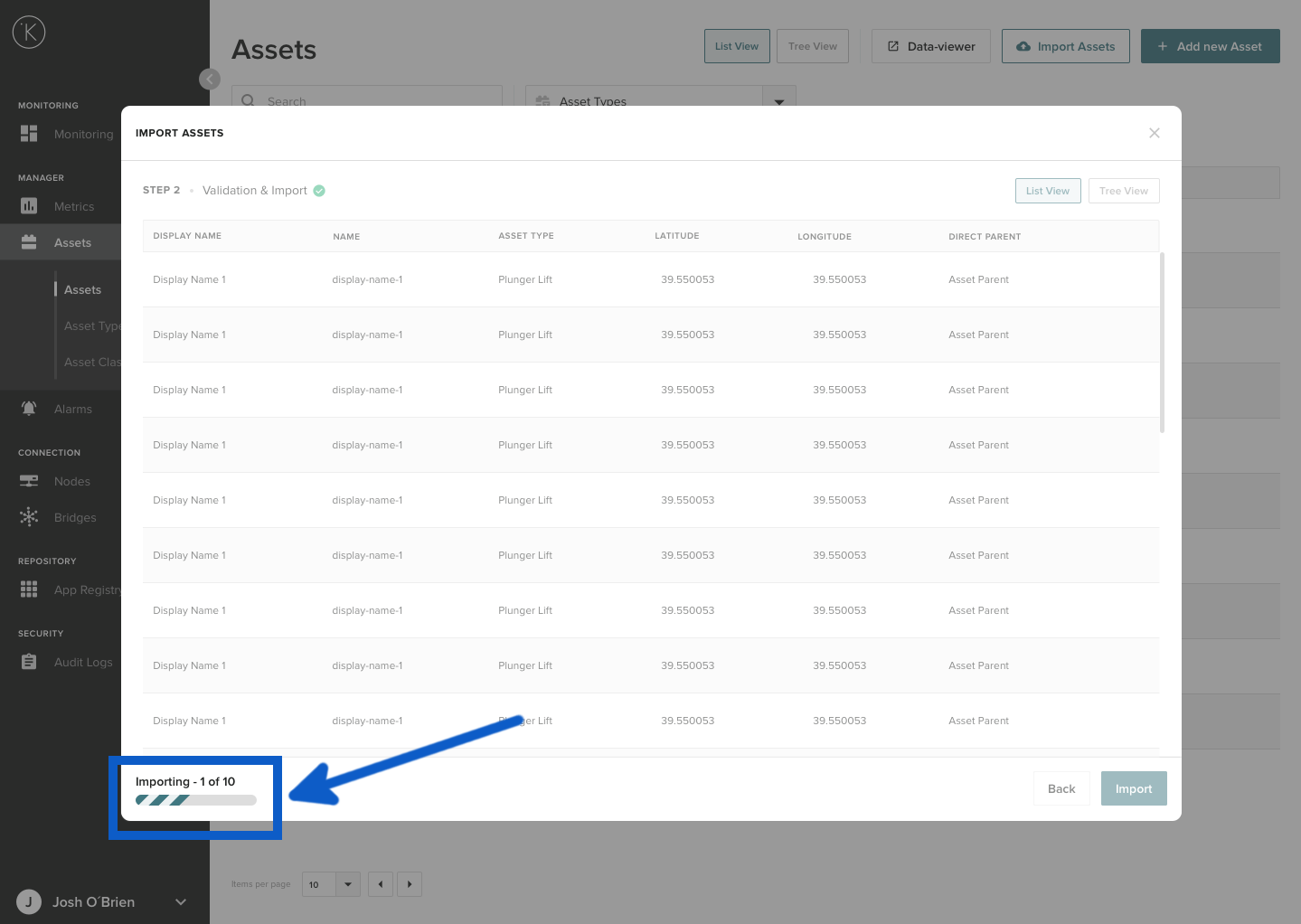

In the bottom left corner you will see the progress of the import. The time required to import will depend on how many Assets you are importing.

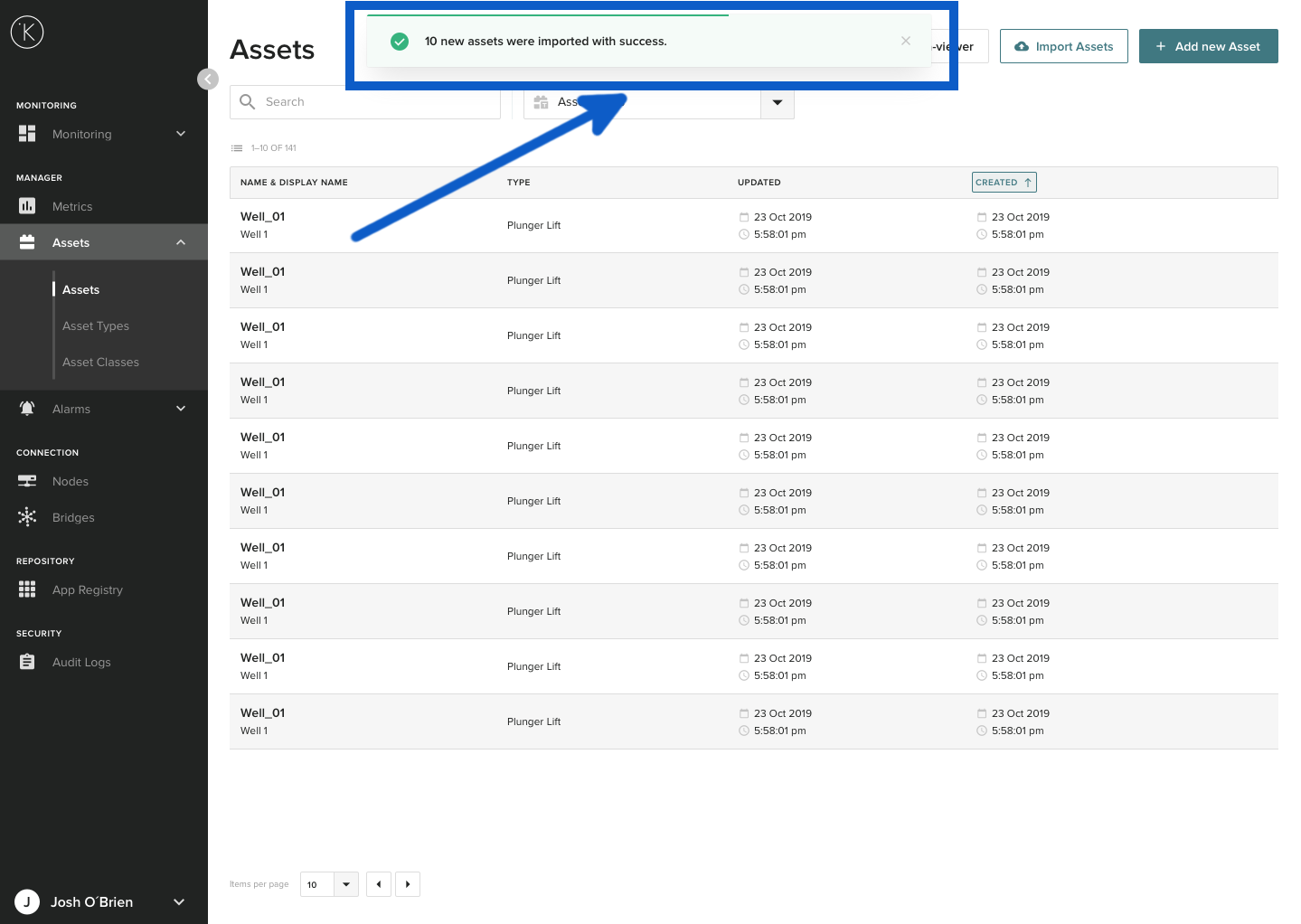

When everything is done and the import is successful, you will see a confirmation box appear. Congratulations ! You can now go to your Assets and see them listed there.

Troubleshooting¶

Problem	Solution
An error "This file is not valid" comes up in Step 1	The CSV file you have tried to upload is not a CSV file. Follow the instructions on creating a CSV file from an Excel book. Make sure you have saved the file as a CSV using the comma as the field delimiter.
An error "The file is not in UTF-8 encoding format." comes up in Step 1	When you export or Save As to a CSV file, make sure you select UTF-8 encoding format (if available). If not available in your program, then you can open the file in Microsoft Excel and re-save it as CSV.
An error "This file exceeds the numbers of rows allowed." comes up in Step 1	Make sure the number of Assets (rows) in the CSV file is less than 20,000. If you have more than 20,000 Assets (rows) to import, split them up into separate files. Each file should be limited to 20,000 Assets (rows).
An error "Required fields missing" comes up in Step 2	Check that your CSV file has values in all columns that are mandatory. See Creating the CSV File in Microsoft Excel for more details.
An error "Name doesn’t match with the pattern" comes up in Step 2	In the Name column, you can only use lowercase alphanumeric characters without spaces. For example: my-asset-01.
An error "There are some “Name” duplicated values." comes up in Step 2	In the Name column, every name must be unique.

Glossary of Terms¶

Term	Definition
Node	A node is a Kelvin gateway. It is used by the Kelvin Control Manager UI to deploy programs to the edge and to collect data from the edge.
Metrics	Metrics are a group of Assets in the Kelvin Control Manager UI.
Assets	An Asset is one piece of data in the Kelvin Control Manager UI. This could be a temperature, vibration, position or any useful value.
CSV File	A comma-separated values (CSV) file is a delimited text file that uses a comma to separate values. Each line of the file is a data record. Each record consists of one or more fields, separated by commas. The use of the comma as a field separator is the source of the name for this file format. A CSV file typically stores tabular data (numbers and text) in plain text, in which case each line will have the same number of fields. (Wikipedia, 2021)
