Testing with historical CSV file

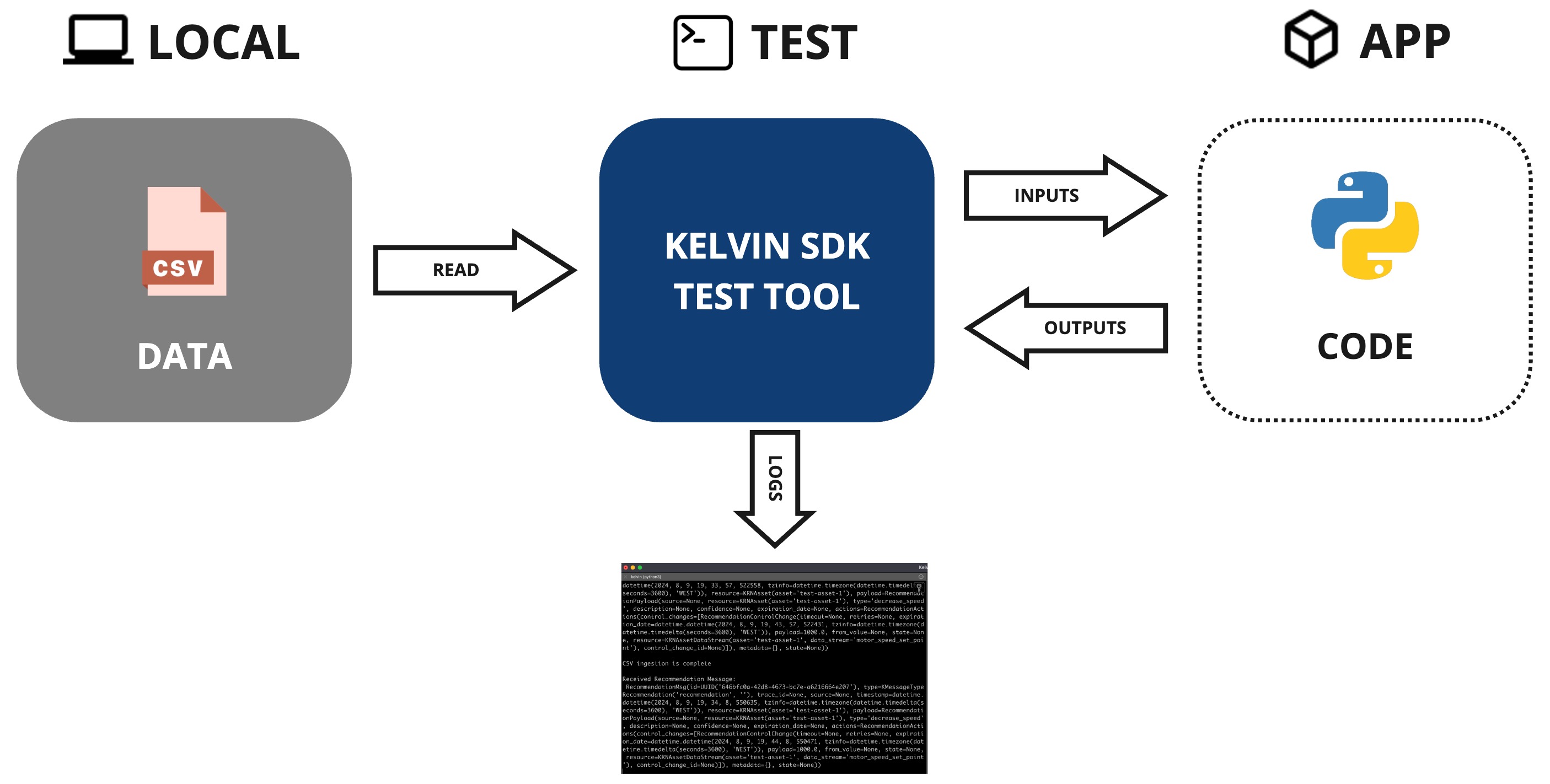

In the Kelvin SDK there is a test tool to help you ingest data to the inputs and debug the outputs to test the performance of your Kelvin SmartApp™.

The Kelvin SDK test csv tool is designed to allow testers to ingest messages from a CSV file for testing purposes.

CSV Tool Overview

The test csv tool supports a variety of options to customize its behavior. Below is a list of the available options:

Parameter	Required	Description	Note
--csv TEXT	required	Path to the CSV file	N/A
--config TEXT	optional	Path to the app.yaml	Default: Current directory
--publish-interval CSV|FLOAT	optional	Publish interval. Set either to "csv" to use the interval between csv rows or to a number to set afixed publishing interval in seconds.	Default: csv
--ignore-timestamps	optional	Ignore CSV timestamps	N/A
--now-offset	optional	Offsets the first csv timestamp to the current time	N/A
--replay	optional	Continuously publish data from CSV when reaching EOF	N/A
--asset-count INTEGER	optional	Number of Assets (test-asset-N)	Default: 1
--assets PATH	optional	Assets Info (Properties) CSV file	N/A
--asset-parameter TEXT	optional	Sets Asset Parameter	Can be used multiple times

CSV File Structure

To structure the CSV file for your application, please follow the rules outlined below:

1. Timestamp Column:

   • The first column should be labeled as timestamp.
   • The timestamp should follow one of the supported formats by the Arrow library. Examples of accepted formats include:
     • YYYY-MM-DD HH:mm:ss
     • YYYY/M/D HH:mm
     • YYYYDDDD HH:mm
     • Other Arrow-compatible formats

2. Asset Column:

   Note

   If you use the --asset-count option, then this asset column and external asset CSV file will be ignored.

   • Optionally include an asset column to link it to a list of assets and their properties stored in another CSV file, as specified by the --asset option.
   • During testing, the asset name in the CSV column will be matched with the asset name in the external asset CSV file, injecting all associated asset properties.

   The asset CSV file contains the asset name and associated properties.

   The first column must contain the asset names, and any subsequent columns should define property names and their corresponding values, with each column representing one property.

   Example of an asset CSV file with asset names and the properties diameter and type:

   asset,diameter,type
   asset1,47,plunger
   asset2,23.1,motor
   (...)


3. Input Columns:

   Note

   If you do not use the --asset option mentioned above then you can define the number of assets to test using the --asset-count option.

   • Include additional columns for each input defined in your app.yaml file. These columns represent the various data stream inputs your application receives.
   • Example input columns might include:
     • motor_temperature
     • pressure
     • gas_flow

4. Optional Asset Parameters:

   • If you have optional asset parameters defined in your app.yaml file, include them as additional columns. These parameters can be useful for evaluating different operational behaviors.
   • Example optional parameter columns might include:
     • temperature_max_threshold
     • speed_decrease_set_point
     • closed_loop

Download CSV Test File

Now that you're familiar with the basics of the test csv tool, it's time to put the Event Detection SmartApp to the test using a CSV file.

Download the CSV file from the link below and save it to your local machine:

Download test.csv

Important Reminder

Make sure to copy the downloaded CSV file into the directory of your Kelvin SmartApp™ project before proceeding.

The CSV file you downloaded contains the following data:

timestamp,motor_temperature
2023-10-27 10:00:01.0,50
2023-10-27 10:00:02.0,51
2023-10-27 10:00:03.0,52
2023-10-27 10:00:04.0,53
2023-10-27 10:00:05.0,54
2023-10-27 10:00:06.0,55
2023-10-27 10:00:07.0,56
2023-10-27 10:00:08.0,57
2023-10-27 10:00:09.0,58
2023-10-27 10:00:10.0,59
2023-10-27 10:00:11.0,60

Test your SmartApp

Open a terminal window on the folder of your Kelvin SmartApp™ project and follow the steps below to test your Event Detection SmartApp using the CSV file you downloaded:

1. Run the CSV Test Tool:

   kelvin app test csv --replay --now-offset --csv test.csv


   and you should see the following output:

   Publisher started.


2. Open a NEW terminal window and run the SmartApp:

   python3 main.py


   and you should see the following output:

   Received Motor Temperature | Asset: test-asset-1 | Value: 50.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 51.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 52.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 53.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 54.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 55.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 56.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 57.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 58.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 59.0

   Received Motor Temperature | Asset: test-asset-1 | Value: 60.0

   Published Motor Speed SetPoint (Control Change) Recommendation: 1000.0

   (...)


3. Go to the CSV Tool terminal and check the logs:

   Publisher started.
   Connected

   CSV ingestion is complete

   Received Recommendation Message:
   RecommendationMsg(id=UUID('e5cc136a-5ae1-4014-a106-6699b6423e62'), type=KMessageTypeRecommendation('recommendation', ''), trace_id=None, source=None, timestamp=datetime.datetime(2024, 8, 9, 18, 10, 40, 231994, tzinfo=datetime.timezone(datetime.timedelta(seconds=3600), 'WEST')), resource=KRNAsset(asset='test-asset-1'), payload=RecommendationPayload(source=None, resource=KRNAsset(asset='test-asset-1'), type='decrease_speed', description=None, confidence=None, expiration_date=None, actions=RecommendationActions(control_changes=[RecommendationControlChange(timeout=None, retries=None, expiration_date=datetime.datetime(2024, 8, 9, 18, 20, 40, 231843, tzinfo=datetime.timezone(datetime.timedelta(seconds=3600), 'WEST')), payload=1000.0, from_value=None, state=None, resource=KRNAssetDataStream(asset='test-asset-1', data_stream='motor_speed_set_point'), control_change_id=None)]), metadata={}, state=None))

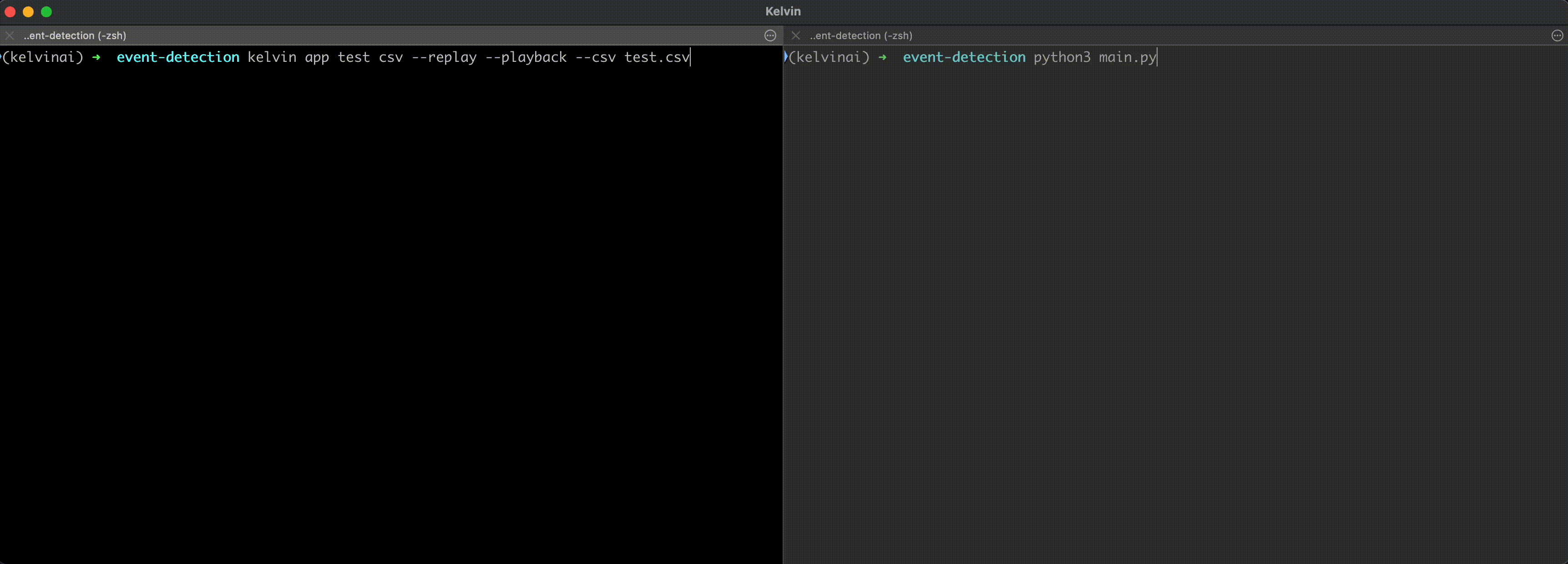

And here is a video showing the test in action:

As you can see, the SmartApp is receiving the motor temperature data and publishing a control change recommendation to decrease the motor speed set point.
