Download Control Changes

Available Guides

Reference:

Field Description
id A unique random generated UUID as the key id for the Control Change.
resource Asset / Data Stream pair in KRN format. The KRN format is krn:ad:<asset_name>/<data_stream_name>
last_state The current state of the Control Change (pending, ready, sent, applied, failed)
last_message The message attached to the current state of the Control Change
created_type What type of process created the Control Change
created_by Name of the process that created the Control Change
old_payload Original value of resource before new value is applied
payload New value to write to resource
timestamp Exact UTC time when the data value was recorded, formatted in ISO 8601.
created UTC time when the Control Change was created, formatted in ISO 8601.
updated UTC time when any Control Change values were last updated, formatted in ISO 8601.
status_log An array of objects for the time of each action taken by the Control Change and its related information

Download Control Changes for an Asset

In this example we will get all the Control Changes that were applied in a 24 hour period for an Asset / Data Stream pair. The Asset name is pcp_01.

You can download a range of Control Change information from the Data Explorer page.

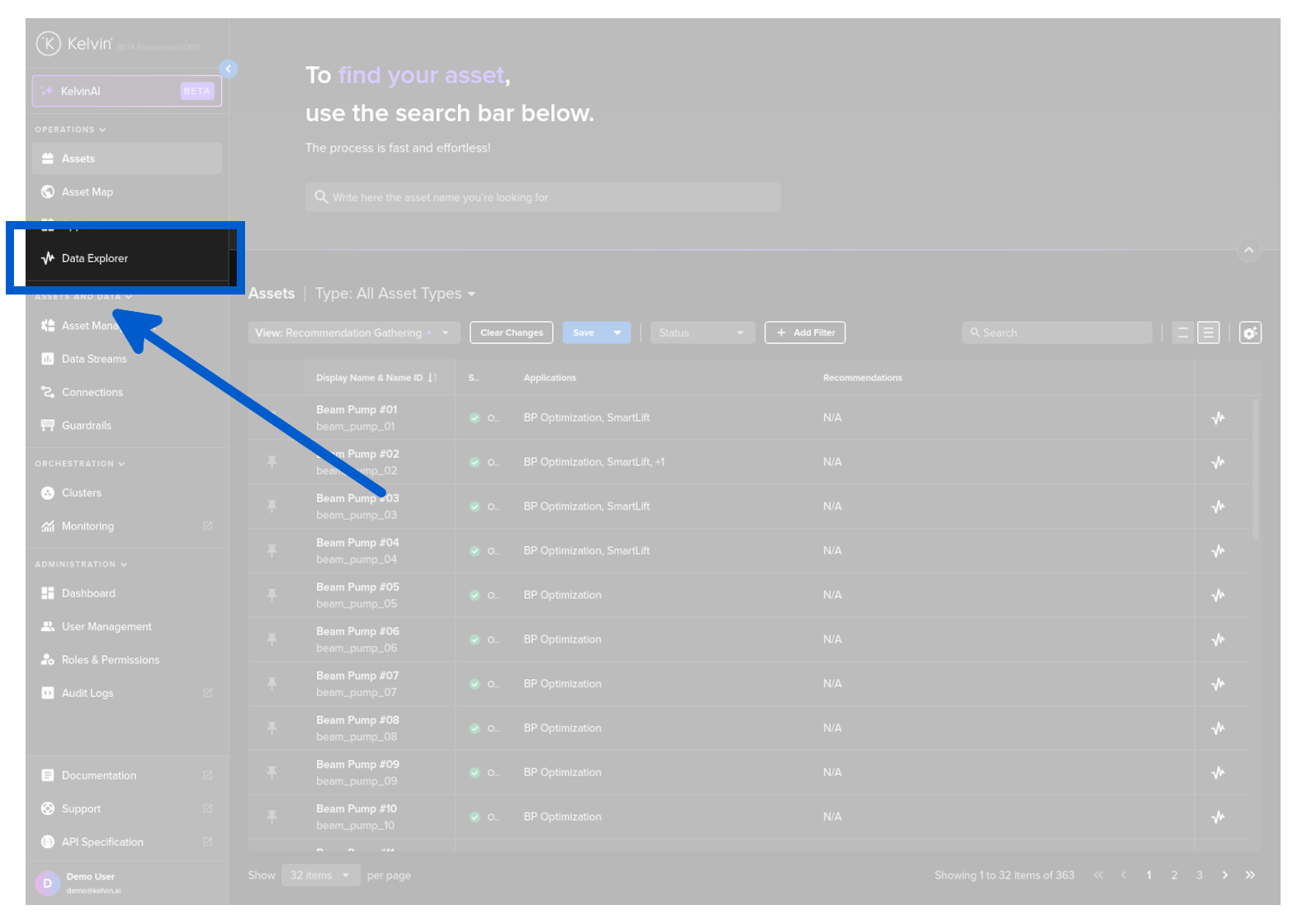

To do this go to the Data Explorer page.

Select the Asset.

Select one or more Data Streams that you want to download the related information.

Choose a time period.

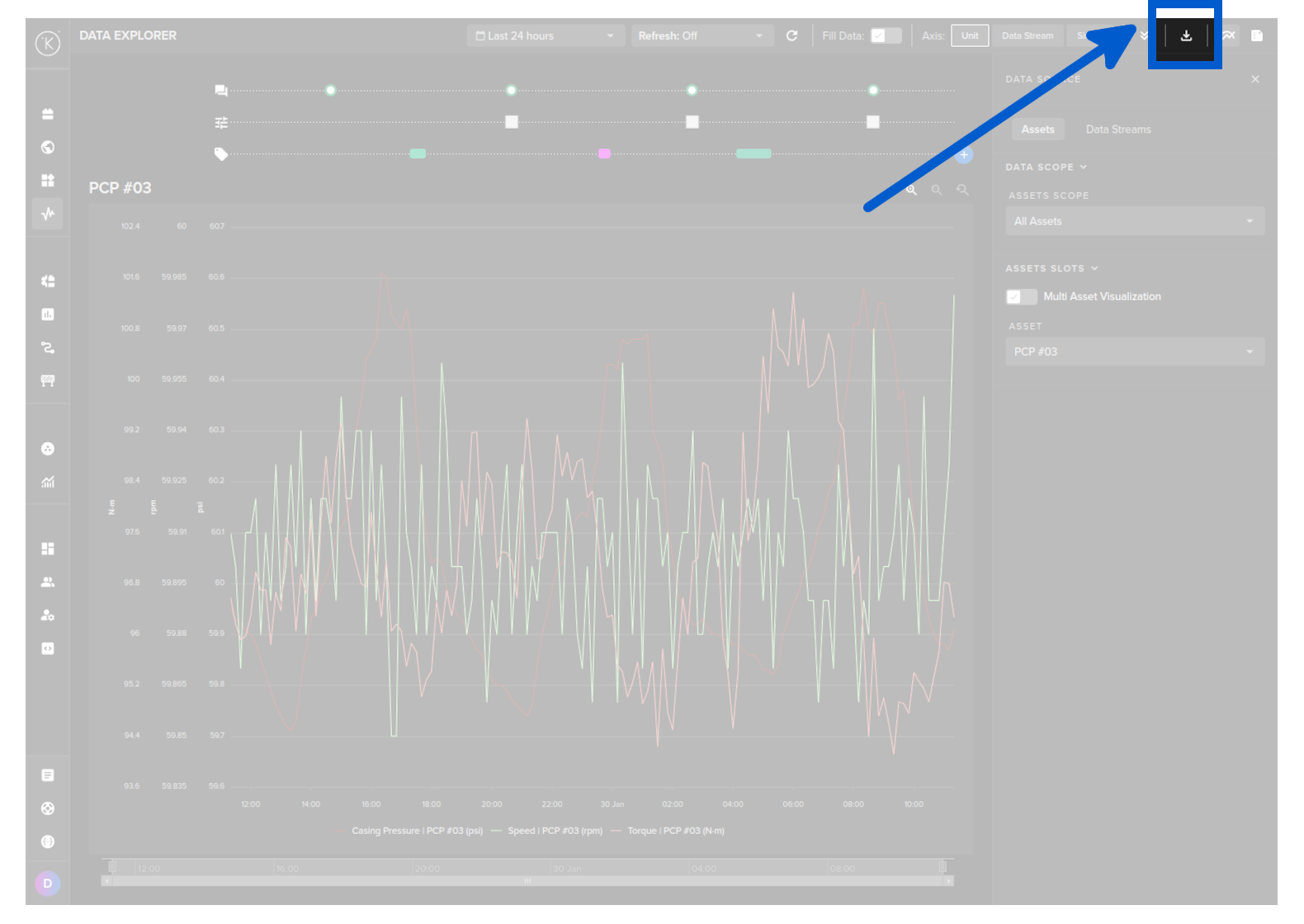

Then click on the download button.

Select the Export Control Changes option.

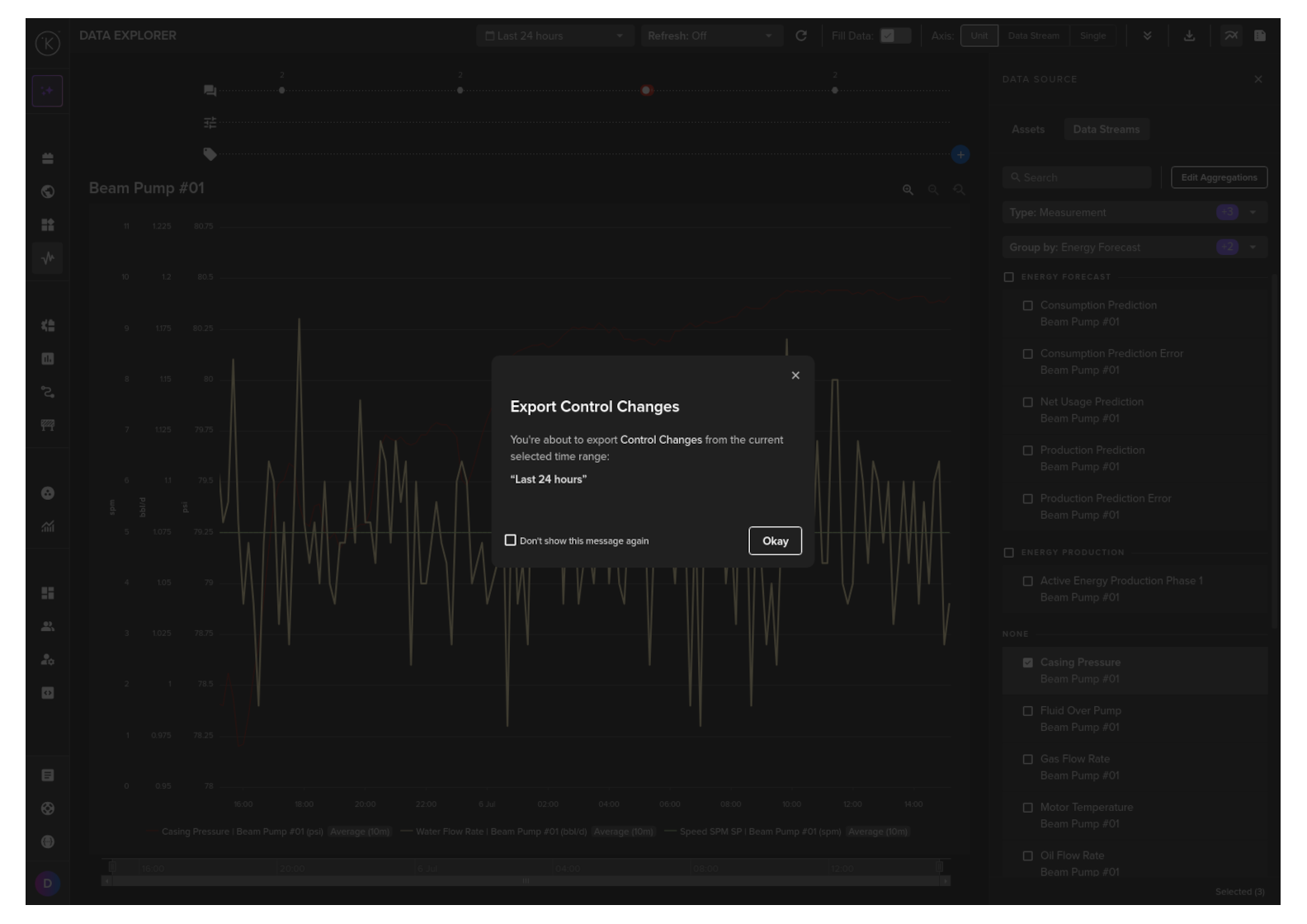

And finally confirm the download by clicking on the Okay button.

API cURL Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
curl -X "POST" \
  "https://<url.kelvin.ai>/api/v4/control-changes/range/get" \
  -H "Authorization: Bearer <Your Current Token>" \
  -H "Accept: application/json" \
  -H "Content-Type: application/json" \
  -d '{
        "start_date": "2024-05-06T12:00:00.000Z",
        "end_date": "2024-08-07T12:00:00.000Z",
        "resources": [
           "krn:ad:pcp_01/speed_sp"
        ],
        "states": [
           "applied"
        ]
     }'

You will receive a response body with a status code of 200, indicating a successful operation.

For example, the response body might look like this:

API cURL Example Response
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
{
  "pagination": {
     "next_page": "W3siS2V5IjoiaWQiLCJWYWx1ZSI6IjA0NTZjMzM1LTM2NTctNGMxMS04Y2NmLWUxOWY1NTYxNTIyOCJ9XQ==",
     "previous_page": null
  },
  "data": [
     {
           "id": "000e0322-42f5-443b-aa76-2028ea1dd7c0",
           "resource": "krn:ad:pcp_01/speed_sp",
           "last_state": "applied",
           "last_message": "Verified after 0.46 seconds.",
           "created_type": "workload",
           "created_by": "sales-01-cluster/pcp-optimization-d2tmv6s14vzz:pcp-optimization/1.0.202403041506",
           "payload": 66,
           "timestamp": "2024-07-24T07:01:50.745748Z",
           "created": "2024-07-24T07:01:51.409316Z",
           "updated": "2024-07-24T07:01:51.352865Z",
           "status_log": [
              {
                 "timestamp": "2024-07-24T07:01:51.352865Z",
                 "state": "applied",
                 "message": "Verified after 0.46 seconds.",
                 "reported": {
                       "before": {
                          "value": 60,
                          "timestamp": "2024-07-24T07:01:48.226849Z",
                          "source": "ccm"
                       },
                       "after": {
                          "value": 66,
                          "timestamp": "2024-07-24T07:01:51.088854Z",
                          "source": "ccm"
                       }
                 }
              },
              {
                 "timestamp": "2024-07-24T07:01:50.896234Z",
                 "state": "sent",
                 "message": "The Control Change was sent to the Bridge."
              }
           ],
           "reported": {
              "before": {
                 "value": 60,
                 "timestamp": "2024-07-24T07:01:48.226849Z",
                 "source": "ccm"
              },
              "after": {
                 "value": 66,
                 "timestamp": "2024-07-24T07:01:51.088854Z",
                 "source": "ccm"
              }
           },
           "expiration_date": "2024-07-24T15:01:50.744795Z"
     },
     {
           "id": "00139a71-b58f-41e8-9772-67234557f6c7",
           "resource": "krn:ad:pcp_01/speed_sp",
           "last_state": "applied",
           "last_message": "Verified after 1.31 seconds.",
           "created_type": "workload",
           "created_by": "sales-01-cluster/pcp-optimization-d2tmv6s14vzz:pcp-optimization/1.0.202403041506",
           "payload": 54,
           "timestamp": "2024-07-19T21:22:23.269812Z",
           "created": "2024-07-19T21:22:24.642944Z",
           "updated": "2024-07-19T21:22:24.615134Z",
           "status_log": [
              {
                 "timestamp": "2024-07-19T21:22:24.615134Z",
                 "state": "applied",
                 "message": "Verified after 1.31 seconds.",
                 "reported": {
                       "before": {
                          "value": 60,
                          "timestamp": "2024-07-19T21:22:18.426532Z",
                          "source": "ccm"
                       },
                       "after": {
                          "value": 54,
                          "timestamp": "2024-07-19T21:22:24.084406Z",
                          "source": "ccm"
                       }
                 }
              },
              {
                 "timestamp": "2024-07-19T21:22:23.315138Z",
                 "state": "sent",
                 "message": "The Control Change was sent to the Bridge."
              }
           ],
           "reported": {
              "before": {
                 "value": 60,
                 "timestamp": "2024-07-19T21:22:18.426532Z",
                 "source": "ccm"
              },
              "after": {
                 "value": 54,
                 "timestamp": "2024-07-19T21:22:24.084406Z",
                 "source": "ccm"
              }
           },
           "expiration_date": "2024-07-20T05:22:23.257394Z"
     }
  ]
}
API Client (Python) Example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
from kelvin.api.client import Client

# Login
client = Client(config={"url": "https://<url.kelvin.ai>", "username": "<your_username>"})
client.login(password="<your_password>")

# Get Range of Control Changes
response = client.control_change.get_control_change_range(
   data={
      "start_date": "2024-05-06T12:00:00.000Z",
      "end_date": "2024-08-07T12:00:00.000Z",
      "resources": [
            "krn:ad:pcp_01/speed_sp"
      ],
      "states": [
            "applied"
      ]
   }
)

# Convert the response into a Pandas DataFrame
df = response.to_df()

# Print the result
print(df)

You will receive a response like this:

API Client (Python) Example Response
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
                           timestamp                resource  payload last_state
0 2024-07-24 07:01:50.745748+00:00  krn:ad:pcp_01/speed_sp     66.0    applied
1 2024-07-19 21:22:23.269812+00:00  krn:ad:pcp_01/speed_sp     54.0    applied
2 2024-07-27 18:27:56.478093+00:00  krn:ad:pcp_01/speed_sp     66.0    applied
3 2024-08-01 08:44:24.912824+00:00  krn:ad:pcp_01/speed_sp     66.0    pending
4 2024-07-25 18:17:23.417537+00:00  krn:ad:pcp_01/speed_sp     54.0    applied
5 2024-08-03 12:00:06.965508+00:00  krn:ad:pcp_01/speed_sp     66.0    pending
6 2024-07-29 13:28:30.807431+00:00  krn:ad:pcp_01/speed_sp     60.5    applied
7 2024-07-26 21:42:39.893841+00:00  krn:ad:pcp_01/speed_sp     54.0    applied
8 2024-08-06 04:45:55.671779+00:00  krn:ad:pcp_01/speed_sp     54.0    pending
9 2024-07-13 05:50:15.592659+00:00  krn:ad:pcp_01/speed_sp     54.0    applied
