Recommendations

Recommendation Messages

Recommendations in Kelvin are a method to package one or more actions into a single Recommendation, which is then displayed in the Kelvin UI for Operations to review and approve.

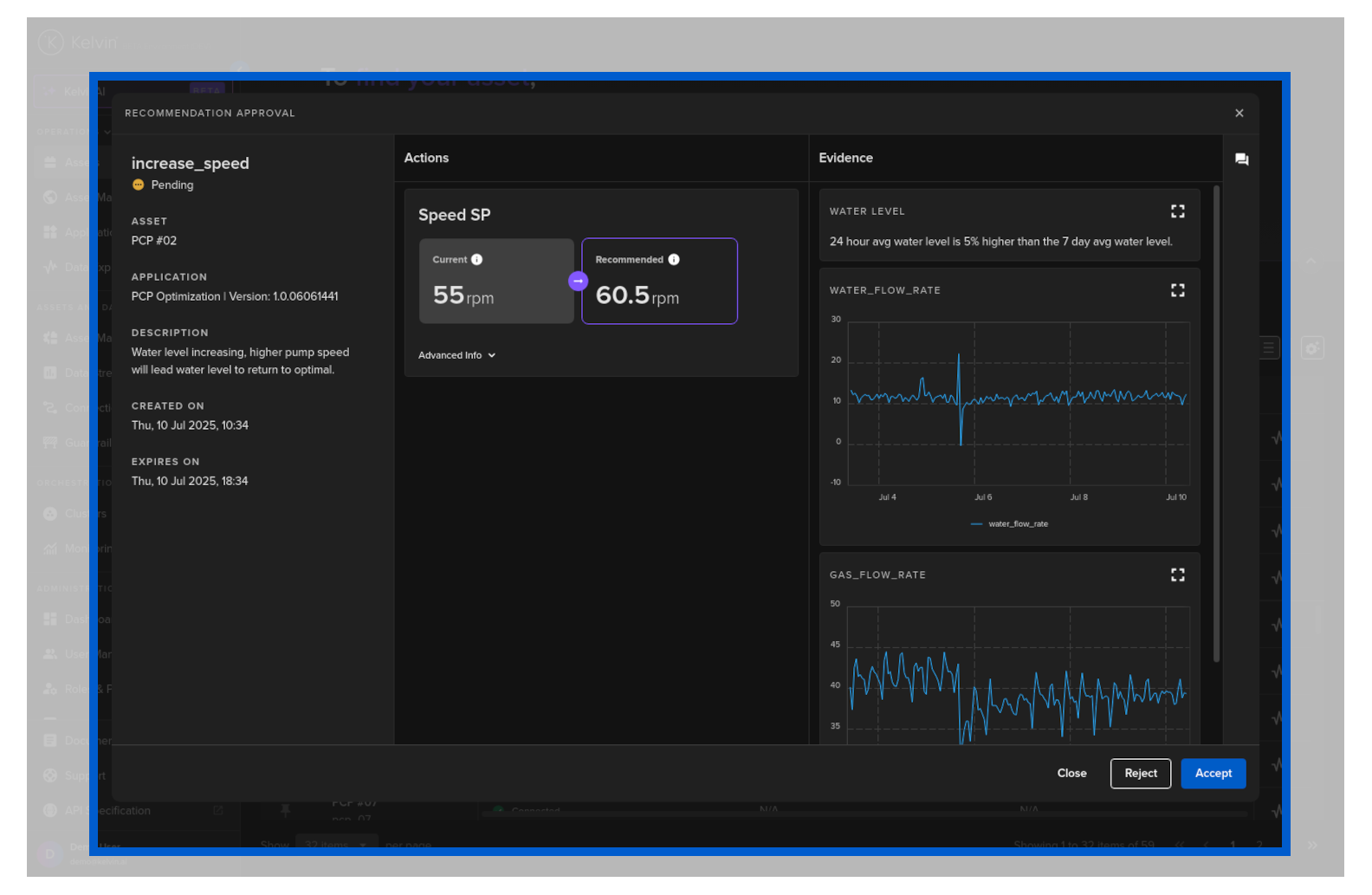

The recommendation allows Operations to see and decide on the actions before they are implemented.

Note

In short this puts the Operations as the man-in-the-middle between the automation programs and the Assets.

In this brief demo you can see the different parts of a Recommendation;

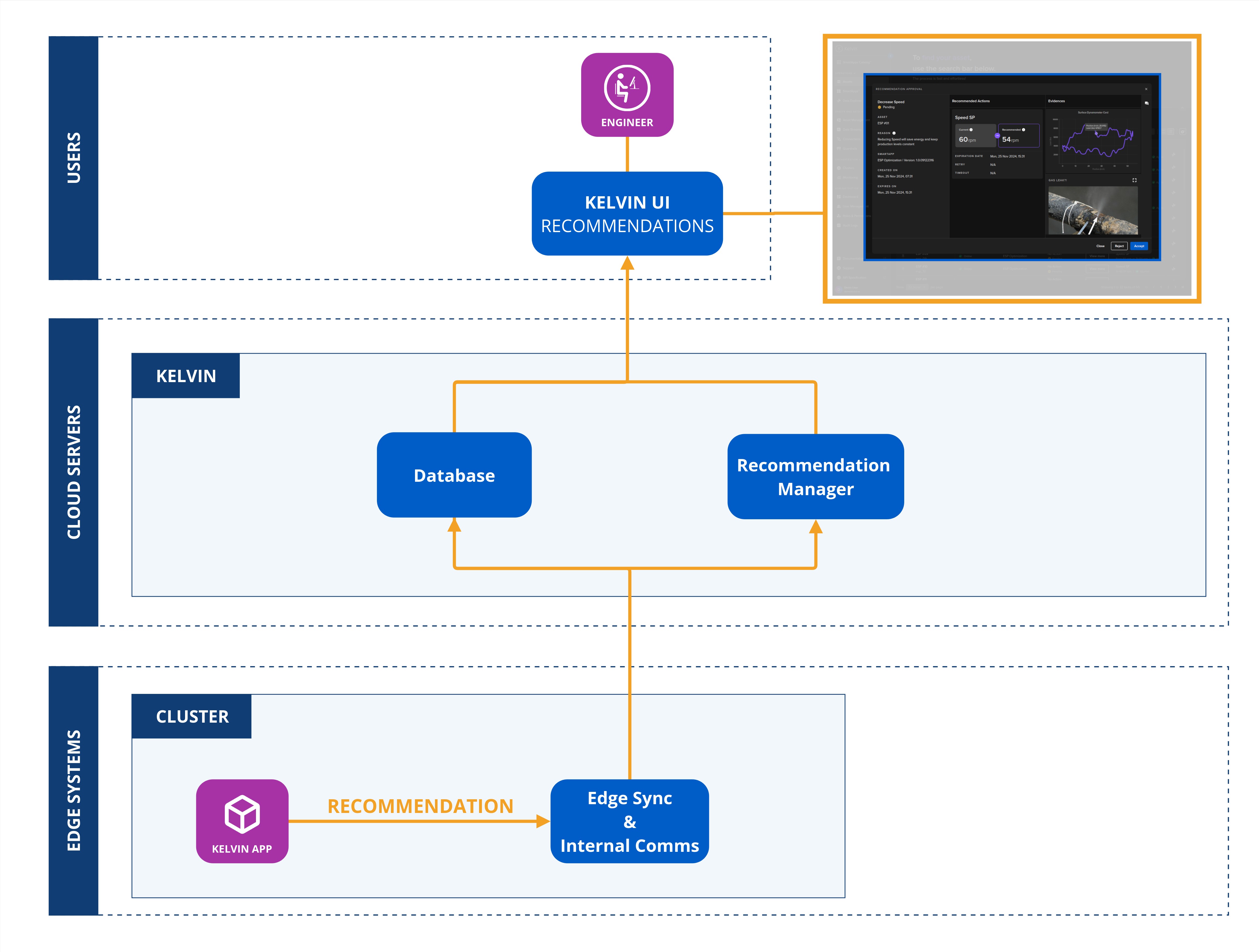

The technical workflow of Recommendations from creation to approval/rejection can be found in the detailed concept overview page here.

Note

Currently the only action available is Control Changes.

The Recommendation Object supports the following attributes :

Attribute	Required	Description
`resource`	required	The KRNAsset that this Recommendation is meant for.
`type`	required	The Recommendation type (String). (e.g. speed_increase, speed_decrease, etc)
`expiration_date`	optional	Absolute datetime or a time delta (from now) when the Control Change will expire.
`description`	optional	Detailed description for the Recommendation.
`confidence`	optional	Confidence of the recommendation (from 1 to 4).
`control_changes`	required	List of ControlChange Objects associated with the recommendation.
`metadata`	optional	Metadata for the recommendation.
`auto_accepted`	optional	Sets the Recommendation as auto accepted (Default is False).

Open / Closed Loop Control

Kelvin supports both open-loop and closed-loop control approaches in its application logic, providing flexibility in how automation decisions are executed.

Info

This is programming advice to optionally include a human-in-the-loop by using App Parameters and conditional logic to decide whether to create a recommendation or execute actions directly.

This concept enables you to insert human oversight between your algorithms or ML models and the final actions applied to your assets.

To implement this, define a boolean App Parameter called closed_loop:

If true, actions are executed automatically without human intervention.
If false, a recommendation is created instead, allowing operators to review and decide whether to proceed.

There are two implementation strategies:

(Recommended) Always package the control change or action inside a recommendation object. Use the auto_accept field to control behavior:
true for automatic execution
false for manual review
This ensures consistent history logging and easier auditing or debugging during future upgrades.
Use conditional logic (if/else) in your app:
If closed_loop is true, apply the action directly.
If false, wrap it in a recommendation with auto_accept: false.

This approach gives full control over automation level per deployment while retaining traceability and operational flexibility.

Evidences

When creating Recommendations, it is useful to embed the data used in the calculations for creating the new value in the recommendation.

This data is intended for;

Operations : They can view the data when deciding whether to accept or reject the recommendation.
Data Scientists : They can use the data to correlate with the confidence level reported by Operations to improve their machine learning models.

Info

Evidence can only be embedded into Recommendation if used in a Kelvin SmartApp™.

You can not create Recommendations with evidences using the Kelvin API or the Kelvin API Client (Python)

There are a number of different types of evidences that can be embedded with the Recommendation;

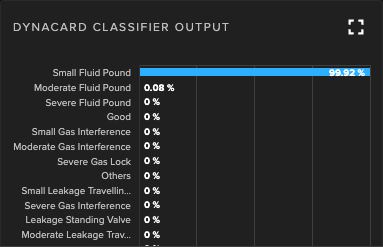

Bar Chart

This evidence is for creating bar charts.

This is how you can add this evidence into your Recommendation.

Add Bar Chart Evidence to Recommendation Python Example
from kelvin.application import KelvinApp
from kelvin.message.evidences import BarChart
from kelvin.krn import KRNAsset
from datetime import datetime

async def main() -> None:
    app = KelvinApp()
    await app.connect()

    evidences = [
        BarChart(
            title="Sample Bar Chart Title",
            timestamp=datetime.now(),
            x_axis={
                "title": "X-Axis Title",
                "categories": ["Category A", "Category B", "Category C", "Category D"]
            },
            y_axis={
                "title": "Y-Axis Title",
                "min": 0
            },
            series=[
                {"name": "Series 1", "data": [5, 10, 15, 20]},
                {"name": "Series 2", "data": [7, 14, 21, 28]}
            ]
        )
    ]

    recommendation = Recommendation(
        resource=KRNAsset('pcp_51'),
        type="decrease_speed",
        control_changes=[],
        evidences=evidences,
    )

    await app.publish(recommendation)

if __name__ == "__main__":
    asyncio.run(main())

Line Chart

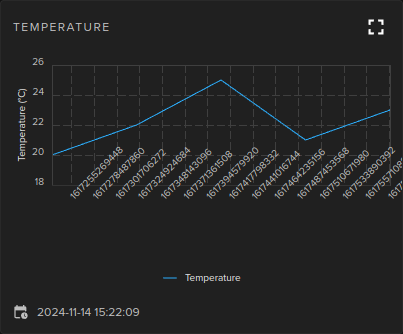

This evidence example is for creating line charts.

There are four types of line charts you can create;

Linear
Date Time
Category
Logarithmic

This is how you can add this evidence into your Recommendation.

Add Line Chart Evidence to Recommendation Python Example
from kelvin.application import KelvinApp
from kelvin.message.evidences import LineChart
from kelvin.krn import KRNAsset
from datetime import datetime

async def main() -> None:
    app = KelvinApp()
    await app.connect()

    evidences = [
        LineChart(
            title="Sample Chart Title",
            timestamp=datetime.now(),
            x_axis={
                "type":"linear", # | 'linear' | 'datetime' | 'category' | 'logarithmic';
                "categories": ["Category 1", "Category 2", "Category 3"],
                "title": "X-Axis Title"
            },
            y_axis={"title": "Y-Axis Title"},
            series=[
                {"name": "Series 1", "data": [1, 2, 3, 4, 5]},
                {"name": "Series 2", "data": [[1, 2], [2, 3], [3, 5], [4, 7]]}
            ]
        )
    ]

    recommendation = Recommendation(
        resource=KRNAsset('pcp_51'),
        type="decrease_speed",
        control_changes=[],
        evidences=evidences,
    )

    await app.publish(recommendation)

if __name__ == "__main__":
    asyncio.run(main())

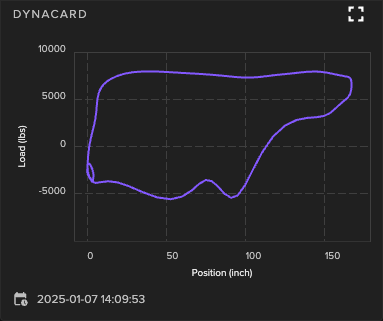

Dynacard

This evidence example is for creating line charts.

There are four types of line charts you can create;

Linear
Date Time
Category
Logarithmic

This is how you can add this evidence into your Recommendation.

Add Dynacard Evidence to Recommendation Python Example
from kelvin.application import KelvinApp
from kelvin.message.evidences import Dynacard
from kelvin.krn import KRNAsset
from datetime import datetime

async def main() -> None:
    app = KelvinApp()
    await app.connect()

    evidences = [
        Dynacard(
            title="Sample Chart Title",
            timestamp=datetime.now(),
            xAxis={
                    "title": "X-Axis Title"
            },
            yAxis={
                "title": "Y-Axis Title"
            },
            series=[
                {"name": "Series 1", "data": [1, 2, 3, 4, 5]},
                {"name": "Series 2", "data": [[1, 2], [2, 3], [3, 5], [4, 7]]}
            ]
        )
    ]

    recommendation = Recommendation(
        resource=KRNAsset('pcp_51'),
        type="decrease_speed",
        control_changes=[],
        evidences=evidences,
    )

    await app.publish(recommendation)

if __name__ == "__main__":
    asyncio.run(main())

HighCharts

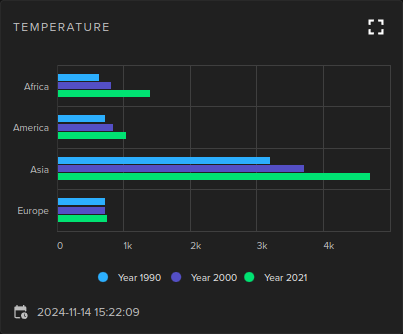

This evidence is for creating any type of chart using the powerful High Charts format.

This is how you can add this evidence into your Recommendation.

Add HighCharts Evidence to Recommendation Python Example
from kelvin.application import KelvinApp
from kelvin.message.evidences import Chart
from kelvin.krn import KRNAsset
from datetime import datetime

async def main() -> None:
    app = KelvinApp()
    await app.connect()

    evidences = [
        Chart(
            title="Sample Chart Title",
            timestamp=datetime.now(),

            ... # Content here will depend on the type of High Chart you choose to display.

        )
    ]

    recommendation = Recommendation(
        resource=KRNAsset('pcp_51'),
        type="decrease_speed",
        control_changes=[],
        evidences=evidences,
    )

    await app.publish(recommendation)

if __name__ == "__main__":
    asyncio.run(main())

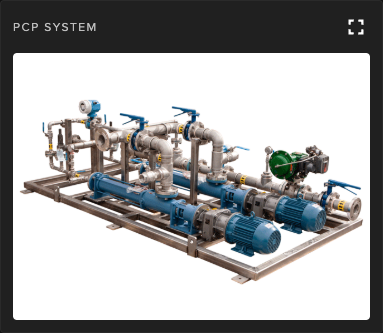

This evidence is for showing images. This is particular useful for computer vision related Recommendations.

Note

The image must be either from the Kelvin File Storage or a publicly available link.

This is how you can add this evidence into your Recommendation.

Add Picture (Image) Evidence to Recommendation Python Example
from kelvin.application import KelvinApp
from kelvin.message.evidences import Image
from kelvin.krn import KRNAsset
from datetime import datetime

async def main() -> None:
    app = KelvinApp()
    await app.connect()

    evidences = [
        Image(
            title="My Image",
            description="This is the image or evidence description.",
            url="https://www.example.com/image.jpg",
        )
    ]

    recommendation = Recommendation(
        resource=KRNAsset('pcp_51'),
        type="decrease_speed",
        control_changes=[],
        evidences=evidences,
    )

    await app.publish(recommendation)

if __name__ == "__main__":
    asyncio.run(main())

Markdown

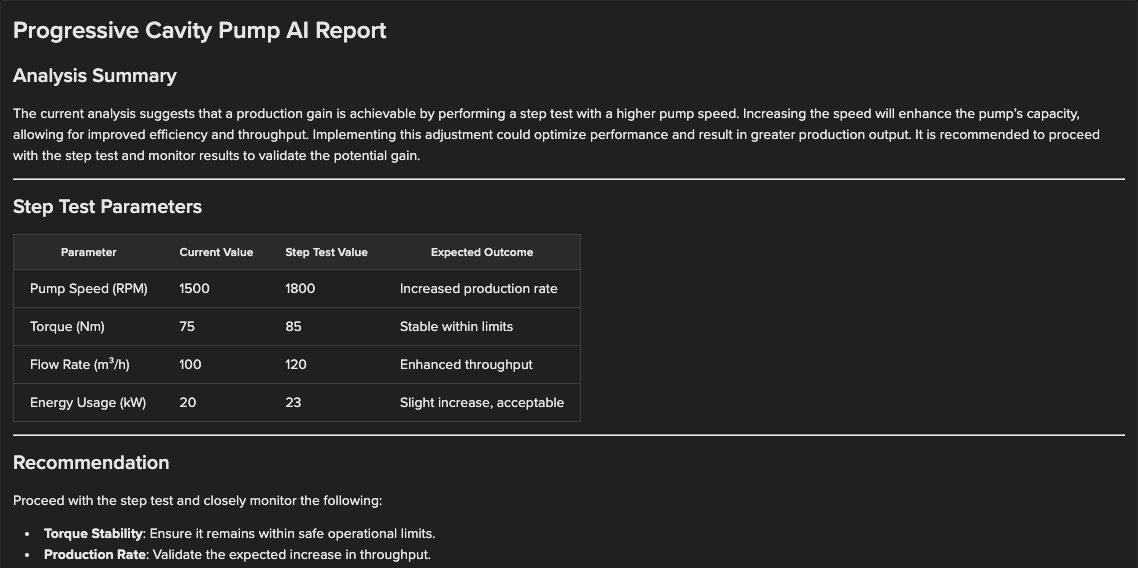

This evidence is for showing text in markdown format.

Note

The image must be either from the Kelvin File Storage or a publicly available link.

This is how you can add this evidence into your Recommendation.

Add Markdown Text Evidence to Recommendation Python Example
from kelvin.application import KelvinApp
from kelvin.message.evidences import Markdown

from kelvin.krn import KRNAsset
from datetime import datetime

async def main() -> None:
    app = KelvinApp()
    await app.connect()

    evidences = [
        Markdown(
            title="My Markdown",
            markdown="""
                # Evidence 1
                Lorem Ipsum is simply dummy text of the printing and typesetting industry.

                # Evidence 2
                ...
            """ # (Multi line) String
        )
    ]

    recommendation = Recommendation(
        resource=KRNAsset('pcp_51'),
        type="decrease_speed",
        control_changes=[],
        evidences=evidences,
    )

    await app.publish(recommendation)

if __name__ == "__main__":
    asyncio.run(main())

IFrame

This evidence is for showing any web content in an iFrame.

This is how you can add this evidence into your Recommendation.

Embed IFrame Evidence to Recommendation Python Example
from kelvin.application import KelvinApp
from kelvin.message.evidences import IFrame

from kelvin.krn import KRNAsset
from datetime import datetime

async def main() -> None:
    app = KelvinApp()
    await app.connect()

    evidences = [
        IFrame(
            title="My IFrame",
            url="https://www.example.com/content/",
        )
    ]

    recommendation = Recommendation(
        resource=KRNAsset('pcp_51'),
        type="decrease_speed",
        control_changes=[],
        evidences=evidences,
    )

    await app.publish(recommendation)

if __name__ == "__main__":
    asyncio.run(main())

Examples

Basic Usage

Here is a minimal Recommendation.

Create Basic Recommendation Python Example
from datetime import timedelta

from kelvin.application import KelvinApp
from kelvin.message import ControlChange, Recommendation
from kelvin.krn import KRNAssetDataStream, KRNAsset

(...)

# Create a Control Change
control_change = ControlChange(
    resource=KRNAssetDataStream("my-motor-asset", "motor_speed_set_point"),
    payload=1000,
    expiration_date=timedelta(minutes=5)
)

# Create and Publish a Recommendation with one Control Change package
await app.publish(
    Recommendation(
        resource=KRNAsset("my-motor-asset"),
        type="decrease_speed",
        control_changes=[control_change]
    )
)

Multiple Control Changes

Create Recommendation with Multiple Control Changes Python Example
from datetime import timedelta

from kelvin.application import KelvinApp
from kelvin.message import ControlChange, Recommendation
from kelvin.krn import KRNAssetDataStream, KRNAsset

(...)

# Create a Control Change
control_change_01 = ControlChange(
    resource=KRNAssetDataStream("my-motor-asset_01", "motor_speed_set_point"),
    payload=1000,
    expiration_date=timedelta(minutes=5)
)

control_change_02 = ControlChange(
    resource=KRNAssetDataStream("my-motor-asset_02", "motor_speed_set_point"),
    payload=1000,
    expiration_date=timedelta(minutes=5)
)

control_change_03 = ControlChange(
    resource=KRNAssetDataStream("valve_01", "position_set_point"),
    payload=1000,
    expiration_date=timedelta(minutes=5)
)

# Create and Publish a Recommendation with one Control Change package
await app.publish(
    Recommendation(
        resource=KRNAsset("my-motor-asset"),
        type="decrease_speed",
        control_changes=[control_change_01, control_change_02, control_change_03]
    )
)

Typical ML Usage

When you have a machine learning model producing the recommended control changes, then you can store additional data produced by the ML output

Create Recommendation with Metadata Python Example
from datetime import timedelta

from kelvin.application import KelvinApp
from kelvin.message import ControlChange, Recommendation
from kelvin.krn import KRNAssetDataStream, KRNAsset

# Normally your ML mode predictions go here
(...)

# Create a Control Change
control_change = ControlChange(
    resource=KRNAssetDataStream("my-motor-asset", "motor_speed_set_point"),
    payload=1000,
    expiration_date=timedelta(minutes=5)
)

# Create and Publish a Recommendation with one Control Change package
# Add also the ML-specific Data
await app.publish(
    Recommendation(
        resource=KRNAsset("my-motor-asset"),
        type="decrease_speed",
        control_changes=[control_change],
        metadata={
            "predicted_speed": 2.5,
            "confidence": 0.87,
            "input_features": {"current_speed": 5, "load": 4},
            "timestamp": "2024-11-18T12:00:00Z",
            "model_version": "1.2.0"
        }
    )
)

Incorporating Evidences

There are a number of types of evidences you can embed into the Recommendation.

Note

Each Recommendation can have an unlimited amount of evidence added.

Bar Charts
Line Charts
Dynacards
Any type of HighCharts
Images
Markdown
IFrames

You can see full examples here.
