Timeseries Data

Produce

You can also publish three types of messages to the platform;

  • Data Messages (Number, Boolean and String)
  • Control Changes
  • Recommendations

We'll go through those examples in the following sections.

Timeseries Data

In order to send data messages from Kelvin, you can connect to the Kelvin API to send the Asset / Data Stream pair data with the Timeseries endpoints.

curl -X 'POST' \
  'https://<url.kelvin.ai>/api/v4/timeseries/create' \
    -H 'Authorization: Bearer <Your Current Token>' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "data": [
    {
      "payload": 18000,
      "resource": "krn:ad:bp_01/annulus_pressure",
      "source": "krn:user:demo@kelvin.ai",
      "timestamp": "2022-01-13T12:00:00.000000Z",
      "type": "number"
    }
  ]
}'

Control Changes

In order to send Control Changes from Kelvin, you can connect to the Kelvin API to send the Control Change instructions with the Create Control Change endpoint.

curl -X 'POST' \
  'https://<url.kelvin.ai>/api/v4/control-changes/create' \
    -H 'Authorization: Bearer <Your Current Token>' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "resource": "krn:ad:98-ac-1/humidity_setpoint",
  "payload": 2001,
  "timeout": 300,
  "retries": 0,
  "expiration_date": "2024-03-14T00:00:00Z"
}'

Recommendations

In order to send Recommendations from Kelvin, you can connect to the Kelvin API to send the Recommendation instructions with Control Change information using the Create Recommendation endpoint.

curl -X 'POST' \
  'https://<url.kelvin.ai>/api/v4/recommendations/create' \
    -H 'Authorization: Bearer <Your Current Token>' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
  "source": "krn:wlappv:cluster-02/perf-berp-rec-gen/1.0.8",
  "resource": "krn:asset:perf-berp-perf-asset",
  "actions": {
    "control_changes": [
      {
        "resource": "krn:ad:perf-berp-perf-asset/perf-berp-perf-number",
        "expiration_date": "2024-03-15T13:11:14.864627Z",
        "payload": 14.5
      }
    ]
  },
  "expiration_date": "2024-03-15T13:11:14.864661Z",
  "metadata": {},
  "resource_parameters": {
    "closed_loop": false
  },
  "type": "perf-recommendation_type"
}'

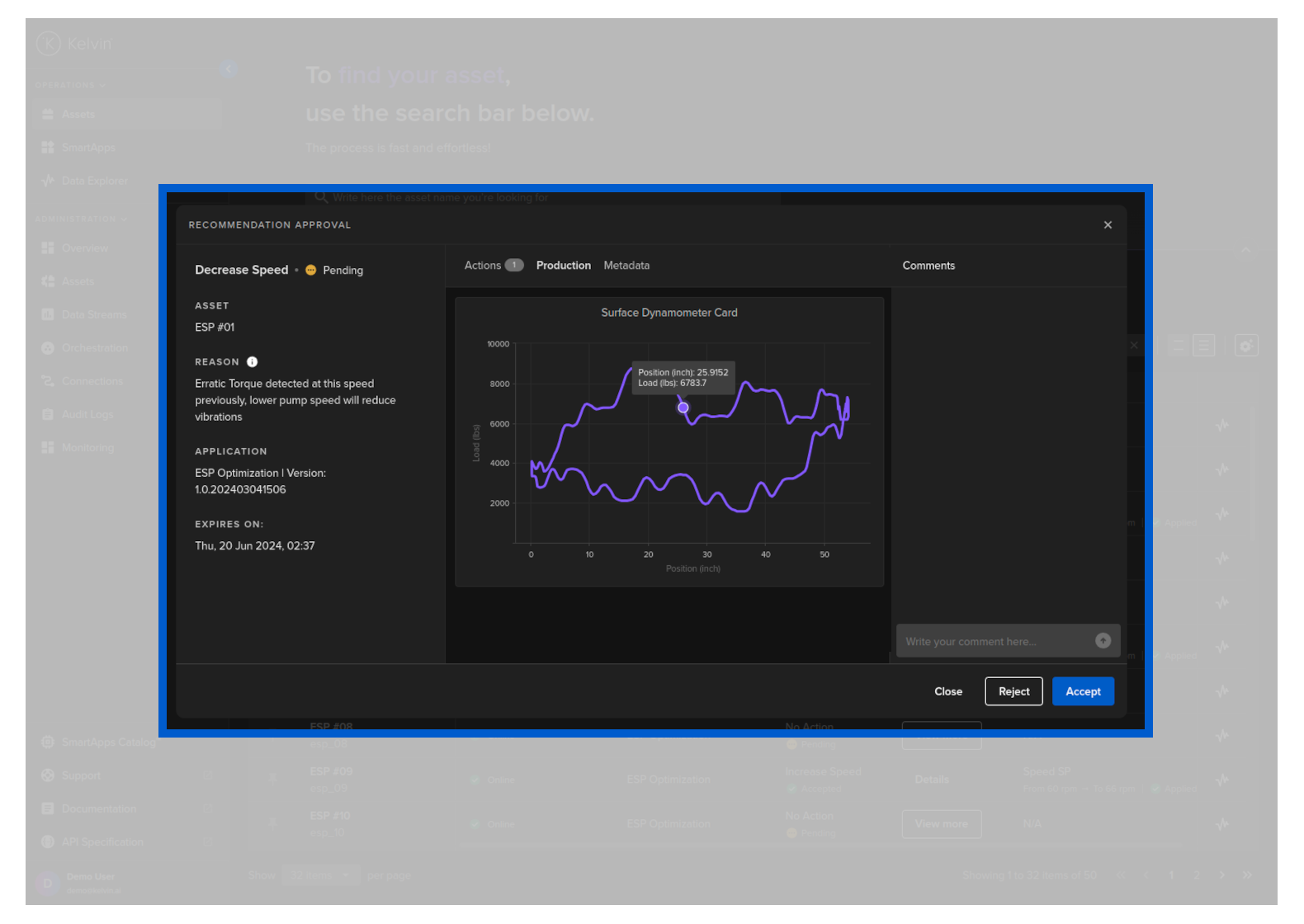

There is also the option to add Dynacard data that can be viewed in the Recommendation.

In the Kelvin UI, the Dynacard is named Production in the Recommendation.

To add Dynacard data, add an evidence key inside metadata with the following structure;

Key Description
type dynacard to make the Kelvin UI treat this as Production data
title Title to be used by Kelvin UI
payload / data The actual data to be plotted in Prodcution graph
payload / axisLabel The labels for the x and y axis
curl -X 'POST' \
  'https://<url.kelvin.ai>/api/v4/recommendations/create' \
    -H 'Authorization: Bearer <Your Current Token>' \
  -H 'accept: application/json' \
  -H 'Content-Type: application/json' \
  -d '{
   "actions":{
      "control_changes":[
         {
            "resource":"krn:ad:98-ac-1/cp_temperature",
            "expiration_date":"2024-07-18T13:11:14.864627Z",
            "payload":77
         }
      ]
   },
   "confidence":7,
   "description":"Temperature adjustment required for optimization of equipment.",
   "expiration_date":"2024-07-19T13:11:14.864661Z",
   "metadata":{
      "evidence":[
         {
            "type":"dynacard",
            "title":"Shutdown Dynacard",
            "payload":{
               "data":[
                        [0, 0],
                        [1, 1],
                        [2, 2],
                        [3, 3],
                        [4, 4],
                        [5, 5],
                        [6, 6],
                        [7, 7],
                        [8, 8],
                        [9, 9]
               ],
               "axisLabel":{
                  "x":"Position",
                  "y":"Load"
               }
            }
         }
      ]
   },
   "resource_parameters":{
    "closed_loop": false
   },
   "source":"krn:app:cp-temperature-producer",
   "resource":"krn:asset:98-ac-1",
   "type":"control-change"
}'
